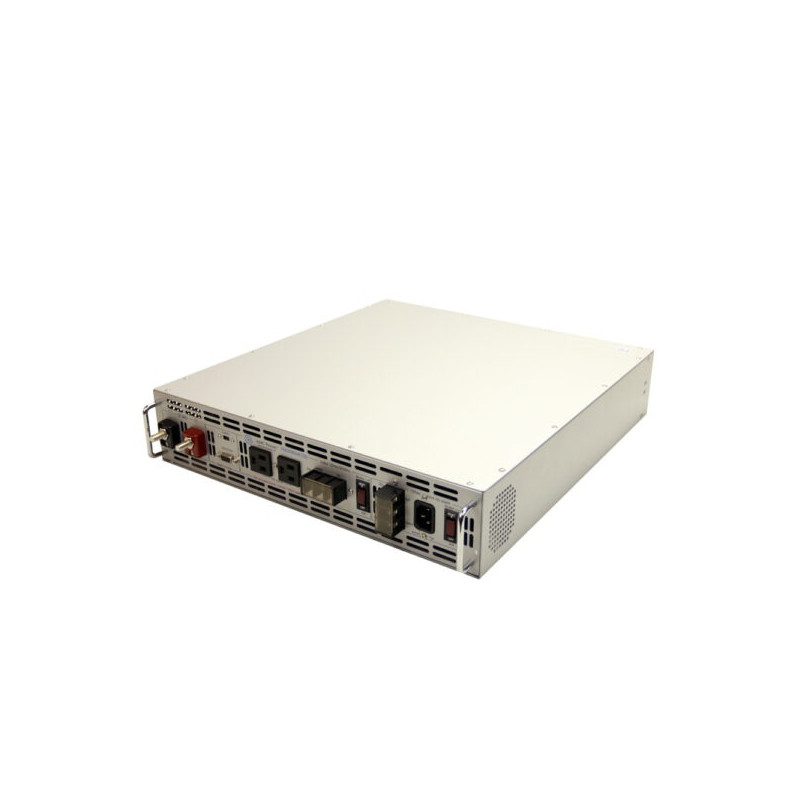

Aims Power PRM2000W48120S 2000 Watt 48 Volt DC Rack Mount Inverter To 120 Volt AC- 2U

Model: PRM2000W48120S

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Aims Power PRM2000W48120S 2000 Watt 48 Volt DC Rack Mount Inverter To 120 Volt AC- 2U

This 2U rackmount inverter is ideal for providing backup power to your essential equipment such as#telecom, audio/visual and computers. It will generate 2000W of high quality pure sine power at a stable 120Vac output. Power is maintained to your equipment seamlessly through a built in 20 Amp transfer switch with a typical transfer time of less than 20msec. The transfer switch will by-pass city/utility power when it is available, and when city/utility power is lost the inverter will automatically switch to the backup DC power source.

Features

2000W continuous power , 48 volt to 120 volt
Pure sine wave
2U Rack Mount Inverter
FCC Class B
Dual ac receptacle
On/off switch
Utility Power Bypass
Automatic Transfer Switch
Over temperature indicator
Overload protection
Low battery voltage warning/shutdown
High input voltage protection with automatic shutdown
Over load indicator
Short circuit protection
Thermal and Load based fan
ac output short circuit protection
Instruction manual
Free 1 year tech support
1 Year Warranty Parts and Labor

Specifications

Continuous output power: 2000 Watts
Surge power capability (peak power): 4000 Watts
Dc input / operating voltage: 41.0 to 60.0 Volts
Output voltage: 120 Volts ac
Output wave form: pure sine wave
Output frequency: 60 Hz
Low battery voltage shutdown: 40.2 Volts
Low battery voltage recovery: 42.5 Volts
High battery shutdown: 61 Volts
High battery power return: 59 Volts
No load power consumption: Fan Off 0.35A dc - Fan On 0.55A dc
Frequency: 60hz
Efficiency: 91%
Over temperature protection low: -4 degrees F +/- 5 degrees F
Over temperature protection high: 172 degrees F +/- 5 degrees F
Transfer Switch Time: 16-18 msec s F
Operating temperature recovery: 136 degrees F (automatic shutdown) +/- 5 degrees F
AC Output Socket Type: dual Type 2 -3 prong

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

AIMS Power 2000 Watt Rack Mount 48 VDC Power Inverter - PRM2000W48120s

Aims Power Warranty
