  6. Alarm Contorls TS-4-2/5-2 Request to Exit Station, 2" Square Blue Push Button w/ ADA Symbol, 2 SPDT
Reduced price! Alarm Contorls TS-4-2 2" Square Blue IIIuminated Push Button "ADA" Symbol"Two Switches Request to Exit Station View larger

Alarm Controls

Alarm Contorls TS-4-2/5-2 Request to Exit Station, 2" Square Blue Push Button w/ ADA Symbol, 2 SPDT

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$65.55

40% Off

$109.25

Details: Alarm Contorls TS-4-2/5-2 Request to Exit Station, 2" Square Blue Push Button w/ ADA Symbol, 2 SPDT

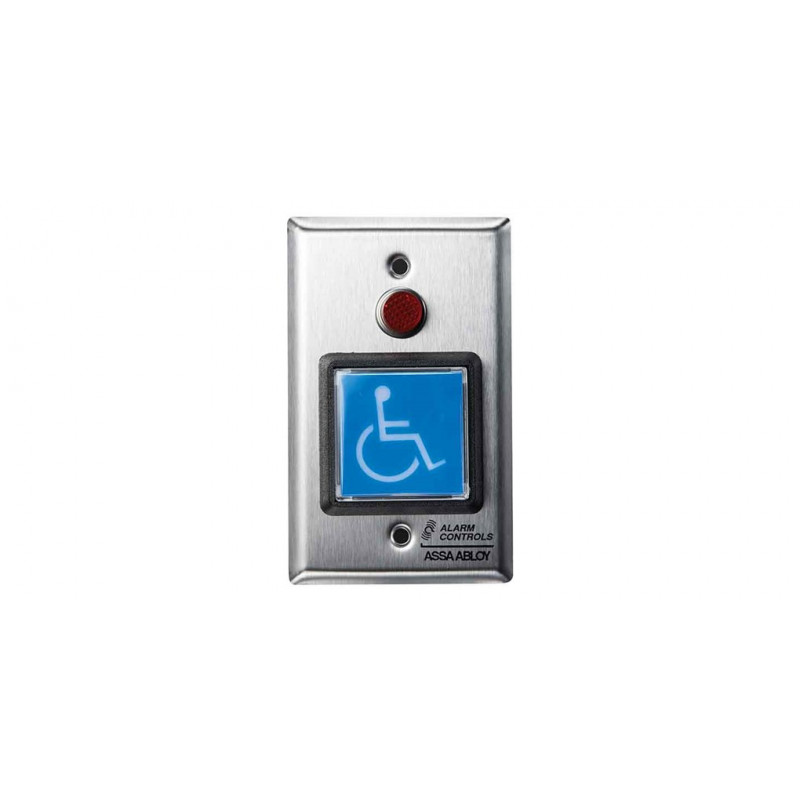

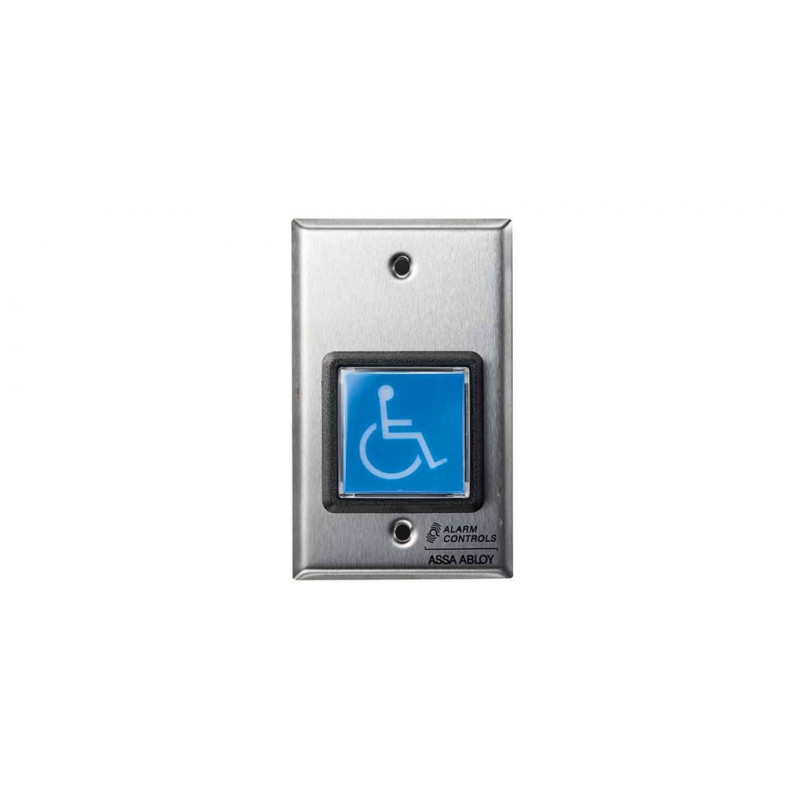

The TS-4 request to exit station, with square push button, provides a convenient way to add authorized access control to a variety of applications. Blue push button is labeled with ADA symbol to indicate accessibility compliance.

Features

  • Switch mounted on single gang wall plate with 430 stainless steel finish
  • 2" blue square push button Illuminated with hi-brightness LED
  • Button labeled with ADA symbol
  • Momentary SPDT action switch
  • TS-4-2 with momentary DPDT output
  • Finishes multiple plate options available

Specifications

Certifications & Listings
UL 294 listed
Electrical
SPDT timed contacts, rated 10A at 35 VDC or 120 VAC
Electrical
Switch depth behind plate: 2-1/2"
Electrical
Switch terminated with 10" colored leads
Electrical
LED operates on 12 or 24 VAC/VDC

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
TS-4-2
TS-5-2
