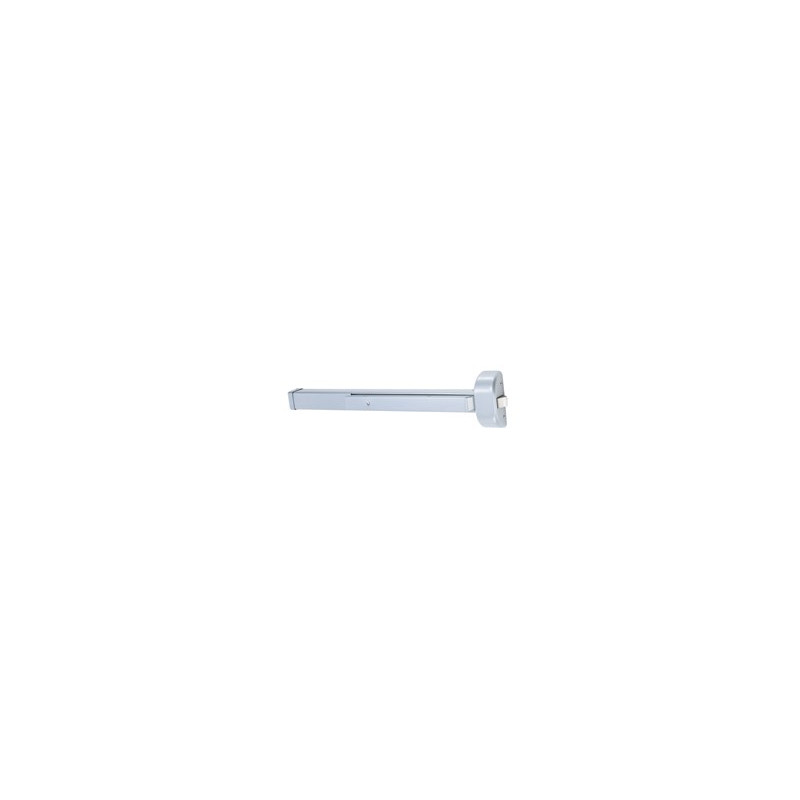

Arrow S1250 Rim Exit Device For 32-1/4" To 36" Door Width

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Arrow S1250 Rim Exit Device For 32-1/4" To 36" Door Width

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford.

Features

Chassis & Cover: Non-ferrous alloy.
End caps: Metal.
Doors:1-3/4" (44.45 mm) thick, hollow metal,4-1/2" (114.3 mm) minimum stile.
Handling: Non-handed.
Dogging: Allen-type key standard, cylinder available.
Top/Bottom Bolts/Latchbolt: 3/4" (19.05 mm) throw, stainless steel
Throughbolts: Order separately.
Rail Assembly: Steel.
Rail Size:Furnished standard for 32-1/4" to 36" door widths,Specify "-24" for 24" to 32" door widths,Specify "-48" for 36-1/4" to 48" door widths.
Finishes: AL, BRZ, LBZ (sprayed finishes).

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Available Model Numbers and Combinations

Model/SKU	Attributes
S1250BRZSRX82-IC-613E	Lever Trim, Storeroom,SFIC prep, less core, Dark Oxidized Satin Bronze, Equivalent, Dark Bronze Painted Or Powder Coated, 36"
S1250LBZTA12-IC-3	Bright Brass, Storeroom,SFIC prep, less core, Knob Trim, Light Bronze Painted, 36"
S1250ALTA01-10	Passage, Satin Bronze, Knob Trim, Aluminum, 36"
S1250BRZTA12-26D	Satin Chromium Plated, Storeroom,Standard cylinder, Knob Trim, Dark Bronze Painted Or Powder Coated, 36"
S1250LBZSF12-IC-BRZ	Dark Bronze Painted, Storeroom,SFIC prep, less core, Plate Trim, Light Bronze Painted, 36"
S1250BRZSRX87-613E	Lever Trim, Classroom,Standard cylinder, Dark Oxidized Satin Bronze, Equivalent, Dark Bronze Painted Or Powder Coated, 36"
S1250LBZTA17-3	Bright Brass, Classroom,Standard cylinder, Knob Trim, Light Bronze Painted, 36"
S1250LBZSF01-LBZ	Light Bronze Painted, Blank Plate, Plate Trim, Light Bronze Painted, 36"
S1250ALTA12-10	Satin Bronze, Storeroom,Standard cylinder, Knob Trim, Aluminum, 36"
S1250BRZTA12-IC-26D	Satin Chromium Plated, Storeroom,SFIC prep, less core, Knob Trim, Dark Bronze Painted Or Powder Coated, 36"
S1250LBZTA17-IC-3	Bright Brass, Classroom,SFIC prep, less core, Knob Trim, Light Bronze Painted, 36"
S1250LBZSF02-LBZ	Dummy Pull, Light Bronze Painted, Plate Trim, Light Bronze Painted, 36"
S1250BRZSRX87-IC-613E	Lever Trim, Classroom,SFIC prep, less core, Dark Oxidized Satin Bronze, Equivalent, Dark Bronze Painted Or Powder Coated, 36"
S1250ALTA12-IC-10	Satin Bronze, Storeroom,SFIC prep, less core, Knob Trim, Aluminum, 36"
S1250LBZSF12-LBZ	Light Bronze Painted, Storeroom,Standard cylinder, Plate Trim, Light Bronze Painted, 36"
