Reduced price! Baldwin Estate Hardware 5080 Fillmore Door Knob w/ 5048 Rose, 2-3/8" Backset

View larger

Baldwin Estate Hardware 5080 Fillmore Door Knob w/ 5048 Rose, 2-3/8" Backset

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Baldwin Estate Hardware 5080 Fillmore Door Knob w/ 5048 Rose, 2-3/8" Backset

The Baldwin Hardware Estate Series 5080 Crystal Style Decorative Forged Brass Filmore Door Knob Set brings luxury home with a style and design to fit any homeowner's dream. Baldwin is the king of flexibility, offering numerous possibilities for customization in both style and function. Whether looking for a Contemporary, Traditional, Rustic, or Couture style of home, you can be sure that the Baldwin Hardware Estate Series 5080 Crystal Style Decorative Forged Brass Filmore Door Knob Set will be the best first and last impression you can give your guests.

Features

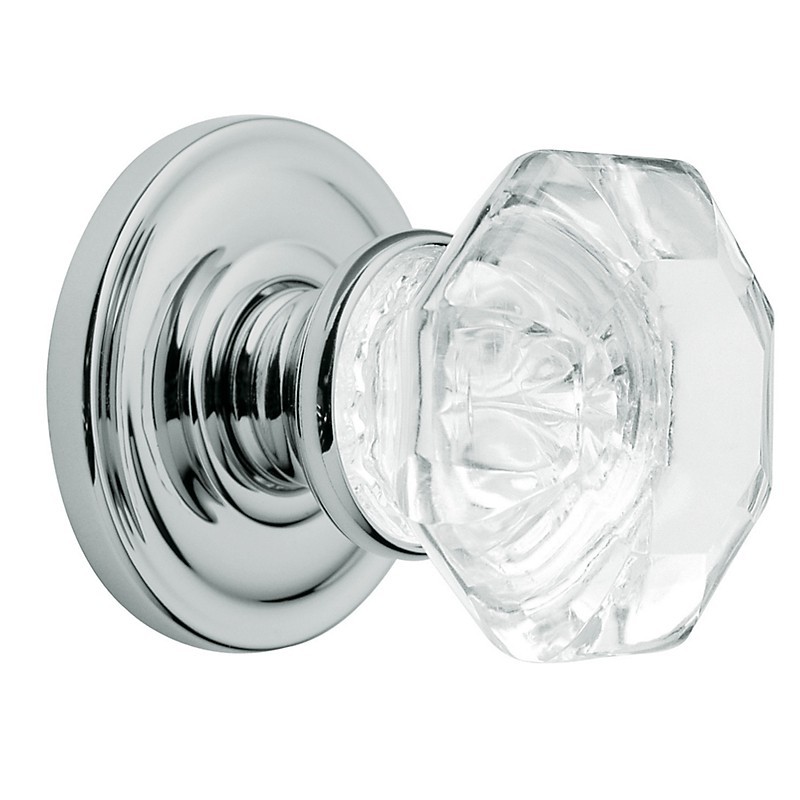

5080 Filmore Knob, shown Classic Rose
Solid forged brass
Finished and polished by hand
Premium 28° Estate Latch
Concealed Screws
The anti-friction nylon insert provides quiet closing and reduces strike plate scratches
Working parts are precisely machined for maximum strength
Lifetime Finishes create a surface highly resistant to the effects of weather and normal wear and tear
Lever-strength latches are built with heavy-duty springs to offset the solidity of Baldwin levers
Lifetime Limited Warranty

Specifications

Door Preparation: 2-1/8" cross bore. 1" edge bore for latch
Door Thickness: 1-3/8" to 2" standard. Thick door optional for up to 2-1/2"
Cylinder: Baldwin 5-pin C-Keyway
UL: 20-minute certified UL option available
Front & Latch: Square Corner Adjustable (SL) standard. Round Corner (RL), Drive In (DL), or 6 Way Adjustable (6L) optional
Strike: Square Corner (SS) standard. Round Corner (RS), or Dual Strike (DS) optional. Extended Lip strike shipped with all thick door locks (ES)
Latch Bolt: ½" passage/privacy/entry function bolt
Handing: Handing not required
ANSI/BHMA: A Tested to exceed ANSI/BHMA Grade 2 security
ADA: N/A

Handing: Reversible
Rose Diameter: 2⅝"
Material: Solid Forged Brass
Concealed Screws: Yes
Projection: 2.177"
Knob Diameter: 2.125"
Door Thickness: 1⅜" to 1¾"
Cross Bore: 2⅛"
Backset: 2⅜"
Keys: 2 Baldwin Keys per lock

Helpful Downloads

Baldwin Hardware Warranty

Baldwin Knobs Finish Options

Baldwin Knobs

	Polished Brass003	Matte Brass & Black049	Venetian Bronze112	Polished Nickel141	Satin Nickel150	Matte Antique Nickel152	Polished Chrome260	Dark Bronze481	White Bronze492
Crystal	✔	✔	✔	✔	✔	✔	✔
Ellipse	✔	✔	✔	✔	✔	✔	✔
Round	✔	✔	✔	✔	✔	✔	✔
Traditional	✔	✔	✔	✔	✔	✔	✔
Rustic								✔	✔

Available Model Numbers and Combinations

Model/SKU	Attributes
5080.030.PASS	Passage
5080.112.PASS	Passage, Venetian Bronze
5080.030.PRIV	Privacy
5080.112.PRIV	Privacy, Venetian Bronze
5080.260.PRIV	Privacy
5080.030.IDM	Half Dummy
5080.112.IDM	Venetian Bronze, Half Dummy
5080.030.FD	Full Dummy
5080.112.FD	Venetian Bronze, Full Dummy
5080.260.FD	Full Dummy
5080.102.PASS	Passage,
5080.102.PRIV	Privacy,
5080.102.FD	Full Dummy,
5080.102.IDM	Half Dummy,
5080.260.PASS	Passage
