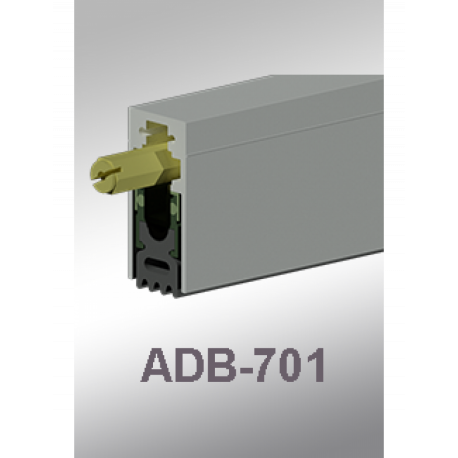

Cal-Royal ADB-701 Heavy Duty, Surface/Semi-Mortised Automatic Door Bottom w/ Neoprene Seal

Model: ADB-701

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Cal-Royal ADB-701 Heavy Duty, Surface/Semi-Mortised Automatic Door Bottom w/ Neoprene Seal

ADB-701 - Heavy Duty, Surface/Semi-Mortised with Neoprene Seal

Features

Automatic Door Bottoms are made from Extruded Aluminum combined with Neoprene or Vinyl seals.
It provides an efficient seal that blocks out air, smoke, sound, and fire.
Available in Surface Mounted, Semi-Mortised and Mortised Applications.
It can be installed on either wood or hollow metal doors; or as specified on each model.
Non-Handed, Reversible for Left or Right Hand Installation.
Low closing force; Slotted holes for adjustment.
Maximum cut should not be closer to 1 1/2" to the set screw.

Specifications

Finish Options: AN, DN
Length Available: 36", 48"
Max. Drop: 7/8" (22.2mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

ADB-701 Installation Instructions

Cal-Royal Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
ADB-701DN-36INS701-36	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Not Included, Not Included
ADB-701DN-36INS701-36SPH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Not Included, 8 x 1-1/2" Truss PHSMS
ADB-701DN-36INS701-36SFH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Not Included, 8 x 1-1/2" Truss FHSMS
ADB-701DN-36INS701-36EP701	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Included, Not Included
ADB-701DN-36INS701-36EP701SPH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Included, 8 x 1-1/2" Truss PHSMS
ADB-701DN-36INS701-36EP701SFH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 36", Included, 8 x 1-1/2" Truss FHSMS
ADB-701DN-36INS701-48	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Not Included, Not Included
ADB-701DN-36INS701-48SPH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Not Included, 8 x 1-1/2" Truss PHSMS
ADB-701DN-36INS701-48SFH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Not Included, 8 x 1-1/2" Truss FHSMS
ADB-701DN-36INS701-48EP701	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Included, Not Included
ADB-701DN-36INS701-48EP701SPH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Included, 8 x 1-1/2" Truss PHSMS
ADB-701DN-36INS701-48EP701SFH815	36", Dark Bronze Anodized Aluminum with Neoprene Insert, 48", Included, 8 x 1-1/2" Truss FHSMS
ADB-701AN-48	48", Aluminum with Neoprene Insert, Not Included, Not Included, Not Included
ADB-701AN-48SPH815	48", Aluminum with Neoprene Insert, Not Included, Not Included, 8 x 1-1/2" Truss PHSMS
ADB-701AN-48SFH815	48", Aluminum with Neoprene Insert, Not Included, Not Included, 8 x 1-1/2" Truss FHSMS
