Reduced price! Camden CM-2510/2520 Series Vestibule And Combo Key Switch

View larger

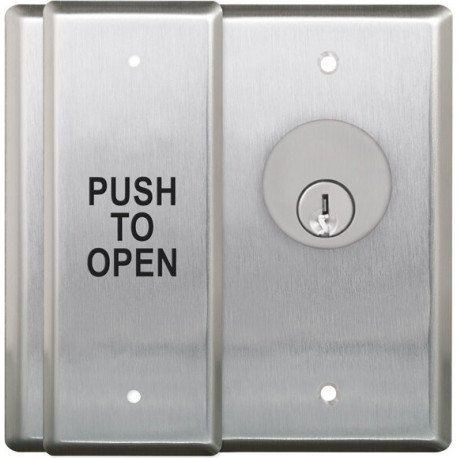

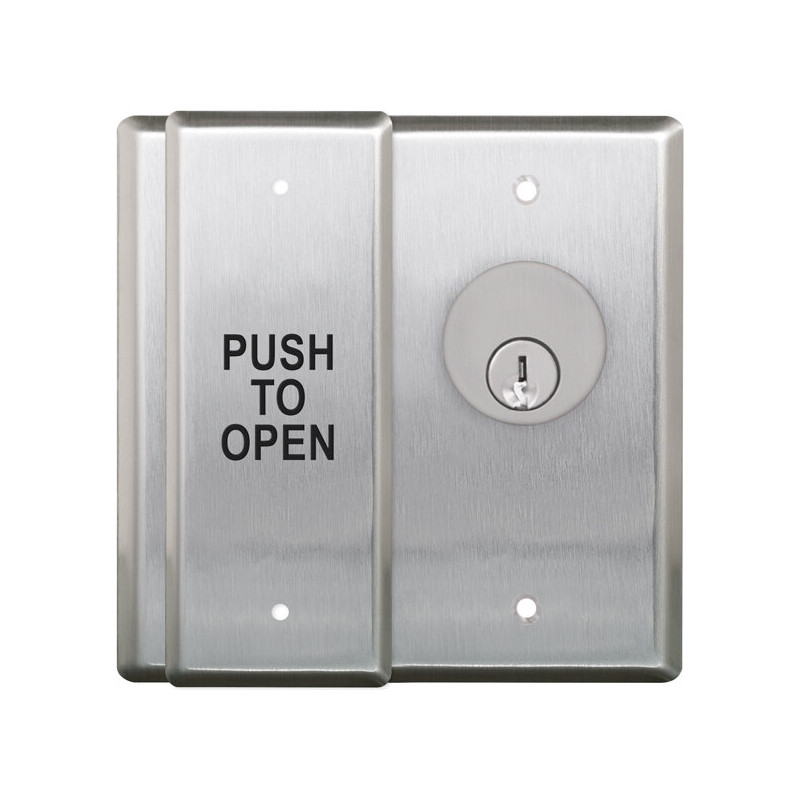

Camden CM-2510/2520 Series Vestibule And Combo Key Switch

Model: CM-

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Camden CM-2510/2520 Series Vestibule And Combo Key Switch

Camden CM-2510/2520 Series Vestibule And Combo Key Switch

CM-2510 and CM-2520 push plate switches have 4 1/2" × 4 1/2" rectangular faceplates designed for easy installation directly on a double gang electric box. The tubular switches provide virtually silent operation. CM-2510 includes a SPST maintained switch. Mortise cylinder and keys are sold separately.

Features:

Heavy Duty Stainless steel construction
ADA compliant
Minimal actuation force
Key switch easily enables/disables push plate switch
3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications:

Voltage: 12/24V AC/DC
Contact Type: Push Plate: N/O SPST Momentary
: Key Switch: N/O SPST Maintained
Contact Rating: Push Plate:
: 3A @30VDC
: Key Switch:
: 6A @ 30VDC
Temp Range: -40F to 140F (-40 to +60C)
Dimensions: CM-2520: 4 1/2" × 4 1/2" × 1 3/16"
: (114mm × 114mm × 30mm)
: CM-2510: 4 1/2" × 4 1/2" × 1 3/4"
: (114mm × 114mm × 44mm)
Std. Finish: US32 / C32D

Camden Door Controls Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
CM-2510/11000/60KA	Double Gang Push Plate/Key Switch, Blank, Not Included
CM-2510/11000/60KAWT	Double Gang Push Plate/Key Switch, Blank, Included
CM-2510/11000/60KD	Double Gang Push Plate/Key Switch, Blank, Not Included
CM-2510/11000/60KDWT	Double Gang Push Plate/Key Switch, Blank, Included
CM-2510/21000/60KA	Double Gang Push Plate/Key Switch, Wheelchair Symbol, Not Included
CM-2510/21000/60KAWT	Double Gang Push Plate/Key Switch, Wheelchair Symbol, Included
CM-2510/21000/60KD	Double Gang Push Plate/Key Switch, Wheelchair Symbol, Not Included
CM-2510/21000/60KDWT	Double Gang Push Plate/Key Switch, Wheelchair Symbol, Included
CM-2510/31000/60KA	Double Gang Push Plate/Key Switch, PUSH TO OPEN, Not Included
CM-2510/31000/60KAWT	Double Gang Push Plate/Key Switch, PUSH TO OPEN, Included
CM-2510/31000/60KD	Double Gang Push Plate/Key Switch, PUSH TO OPEN, Not Included
CM-2510/31000/60KDWT	Double Gang Push Plate/Key Switch, PUSH TO OPEN, Included
CM-2510/3F1000/60KA	Double Gang Push Plate/Key Switch, POUSSEZ POUR OUVRIR, Not Included
CM-2510/3F1000/60KAWT	Double Gang Push Plate/Key Switch, POUSSEZ POUR OUVRIR, Included
CM-2510/3F1000/60KD	Double Gang Push Plate/Key Switch, POUSSEZ POUR OUVRIR, Not Included
