  6. Camden Door Control CM-30E Economical One Label Push/Exit Square LED Illuminated Switch
Reduced price! Camden CM-30 Series Square Illuminated Economical One Label Push/Exit Switch View larger

Camden Door Controls

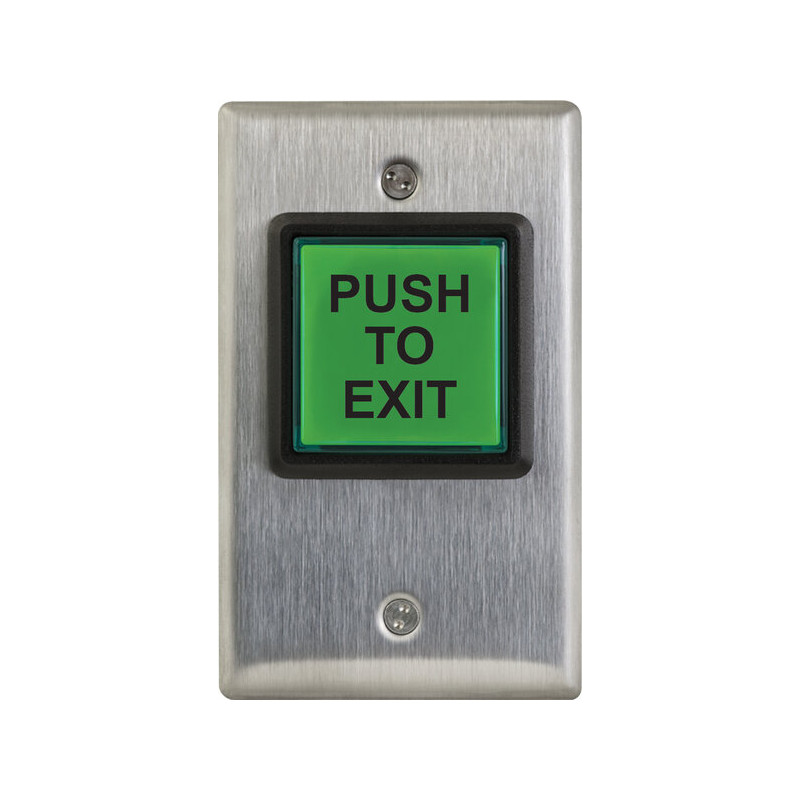

Camden Door Control CM-30E Economical One Label Push/Exit Square LED Illuminated Switch

CM-30E

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$41.60

35% Off

$64.00

Details: Camden Door Control CM-30E Economical One Label Push/Exit Square LED Illuminated Switch

CM-30 Series UL compliant LED illuminated Request To Exit (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE with double break circuitry.

Features

  • High visibility 2" square button.
  • Single gang with heavy-duty stainless steel faceplate.
  • LED bulb provides super-bright operation and longevity (10 year estimate).

Specifications

Voltage
12/24 VDC
Contact Type
SPDT Form 'C'
Contact Rating
10 A, 30 VDC
Switch Type
Momentary
Current Draw
LED Bulb 14 Ma
Dimensions
4-1/2" × 2-3/4" × 1-7/8" (114 mm × 70 mm × 48 mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
