> >>>>Camden CM-400 Series Mushroom Push Button W/ Stainless Steel Single Gang Faceplate
Reduced price! Camden CM-400 Series 1 5/8" Mushroom Push Button With Stainless Steel Single Gang Faceplate View larger

Camden Door Controls

Camden CM-400 Series Mushroom Push Button W/ Stainless Steel Single Gang Faceplate

CM-

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$55.25

35% Off

$85.00

Details: Camden CM-400 Series Mushroom Push Button W/ Stainless Steel Single Gang Faceplate

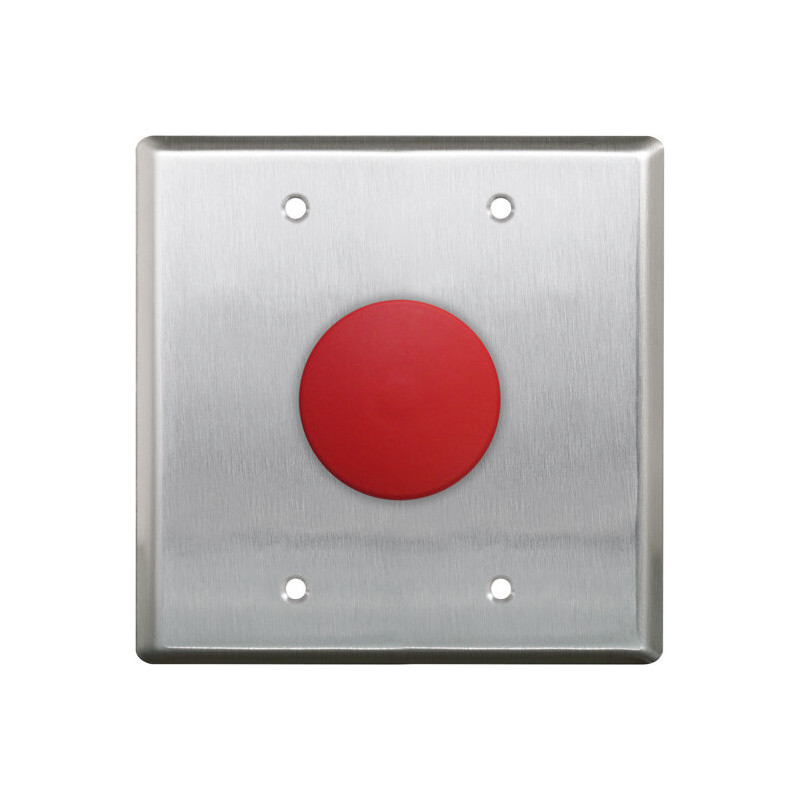

Camden CM-400 Series 1 5/8" Mushroom Push Button With Stainless Steel Single Gang Faceplate

CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1 5/8" (40 mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.

Features:

  • 1 5/8" (40 mm) diameter button
  • Vandal resistant free-spinning, heavy-duty button
  • Vandal resistant 18 gauge stainless steel faceplate
  • Single gang, double gang and narrow faceplates
  • 3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications:

Voltage
12/24V DC
Contact Rating
6A@30V DC
Switch Type
Momentary
Dimensions
CM-400:
4 1/2" × 2 3/4" × 1 3/4"
(114mm × 70mm × 44m)
Std. Finish
US32 / C32D

Available Model Numbers and Combinations

Model/SKUAttributes
CM-410RH/7 Normally Closed (N/C), Red, Wheelchair Symbol, PUSH TO EXIT
CM-420BE/8FE Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT, POUSSEZ POUR VERROUILLER / PUSH TO LOCK
CM-400RESA/1 Normally Open (N/O), Red, SALIDA, Not Included
CM-410RH/7F Normally Closed (N/C), Red, Wheelchair Symbol, POUSSEZ POUR OUVRIR SORTIR
CM-420BE/12 Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT, PRESS FOR EMERGENCY ASSISTANCE
CM-410RH/8 Normally Closed (N/C), Red, Wheelchair Symbol, PUSH TO LOCK
CM-420BE/12F Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT, APPUYER POUR AIDE DURGENCE
CM-400RH/1 Normally Open (N/O), Red, Wheelchair Symbol, Not Included
CM-410RH/8F Normally Closed (N/C), Red, Wheelchair Symbol, POUSSEZ POUR OUVRIR VERROUILLER
CM-420BE/12FE Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT, PRESS FOR EMERGENCY ASSISTANCE / APPUYER POUR AIDE DURGENCE
CM-410BESA/1 Normally Closed (N/C), Blue, SALIDA, Not Included
CM-410RH/8FE Normally Closed (N/C), Red, Wheelchair Symbol, POUSSEZ POUR VERROUILLER / PUSH TO LOCK
CM-410RH/12 Normally Closed (N/C), Red, Wheelchair Symbol, PRESS FOR EMERGENCY ASSISTANCE
CM-420BES/3 Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT / SORTIE, PUSH TO OPEN
CM-420BES/1 Normally Open (N/O) & Closed (N/C) Contacts, Blue, EXIT / SORTIE, Not Included

View All Model Numbers and Options
