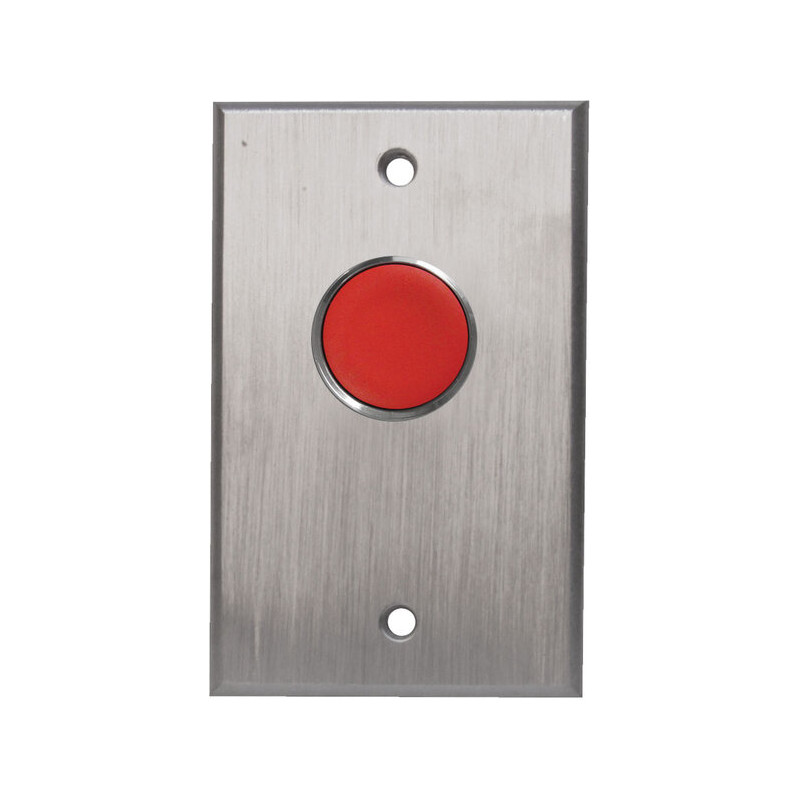

Details: Camden CM-7000 Series Medium Duty Push / Exit Switch w/ (Recessed Button) Single Gang Faceplate

Camden CM-7000/7100 Series Medium Duty Push/Exit Switch with (Recessed Button) Single Gang Faceplate

CM-7000 Series push/exit switches are vandal resistant, and designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang or narrow widths. Optional duranodic (US 40) finish is also available. CM-7000 Series Recessed Buttons are specially designed to limit accidental activation (not suitable for ADA applications) and to provide protection from vandalism.

Features:

  • 1" diameter red, or green button
  • Mounted on heavy 1/4" thick aluminum plate
  • Indoor or outdoor applications
  • Spring return operation
  • Option for paint filled/engraved button, or laser engraved graphics on faceplate
  • Pneumatic time delay models available
  • 3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications:

Voltage
12/24 VDC
Contact Type
CM-7000/7100: N/O SPST
CM-7010/7110: N/C SPST
CM-7020/7120: N/O&N/C DPST
CM-7085/7185: N/O&N/C DPST Form 'Z' Pneumatic Timer
Contact Rating
6A@30V DC
Switch Type
Momentary
Dimensions
CM-7000/7010/7020/7085:
4 1/2" × 2 3/4" × 2 1/4"
(114mm × 70mm × 57mm)
Std. Finish
Brushed Aluminum

Available Model Numbers and Combinations

Model/SKUAttributes
CM-7020RE/3FSA Red, EXIT, POUSSEZ POUR OUVRIR,
CM-7020RE/3FBZ Red, EXIT, POUSSEZ POUR OUVRIR, Satin Bronze
CM-7020RE/3SSA Red, EXIT, EMPUJE PARA ABRIR,
CM-7020RE/3SBZ Red, EXIT, EMPUJE PARA ABRIR, Satin Bronze
CM-7020RE/7SA Red, EXIT, PUSH TO EXIT,
CM-7020RE/7BZ Red, EXIT, PUSH TO EXIT, Satin Bronze
CM-7020RE/7FSA Red, EXIT, POUSSEZ POUR OUVRIR SORTIR,
CM-7020RE/7FBZ Red, EXIT, POUSSEZ POUR OUVRIR SORTIR, Satin Bronze
CM-7020RE/8SA Red, EXIT, PUSH TO LOCK,
CM-7020RE/8BZ Red, EXIT, PUSH TO LOCK, Satin Bronze
CM-7020RS/3SA Red, SORTIE, PUSH TO OPEN,
CM-7020RS/3BZ Red, SORTIE, PUSH TO OPEN, Satin Bronze
CM-7020RS/3FSA Red, SORTIE, POUSSEZ POUR OUVRIR,
CM-7020RS/3FBZ Red, SORTIE, POUSSEZ POUR OUVRIR, Satin Bronze
CM-7020RS/3SSA Red, SORTIE, EMPUJE PARA ABRIR,

View All Model Numbers and Options
