Reduced price! Command Access CAT EPT Concealed Power Transfer View larger

Command Access Technologies

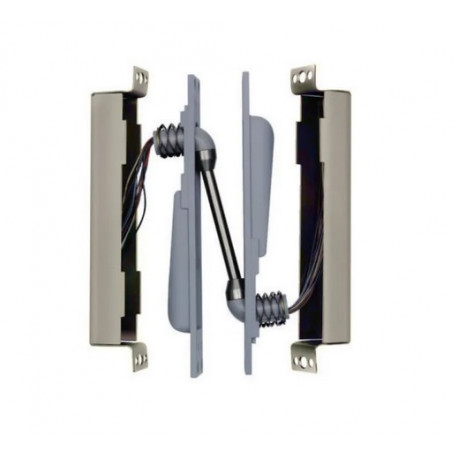

Command Access CAT EPT Concealed Power Transfer

CAT EPT

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$439.01

12% Off

$498.87

Details: Command Access CAT EPT Concealed Power Transfer

The Command Access EPT is a concealed power transfer ideal for high traffic applications, matching the Von Duprin EPT prep. It is a available in 2 or 10 wire configurations, ALUM or DURO finish, & CON connections can be added.

Features

  • CAT EPT-2, CAT EPT-10 and CAT EPT-10C are designed to transfer electrical power from the frame to the door in a very secure manner.
  • UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard 7-2, "Fire Test of Door Assemblies"
  • UL-Listed as Miscellaneous Fire Door Accessories
  • Classified according to Uniform Building Code (UBC)
  • Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
  • Designed for use in high traffic openings
  • Packaged individually with fasteners for wood, steel or aluminum doors and frames
  • All parts are made of metal including back boxes - no plastic parts
  • Crimp connectors are supplied for a more secure and clean connection
  • Not For Use With:
  • Swing-clear hinges
  • Pocket pivots
  • Butt hinges larger than 6"
  • 1 1/2" offset pivots
  • Center hung doors

Specifications

CAT EPT-2
(2) 18AWG WIRES
MAX. RATING
UP TO 2 AMPS @24VDC
CAT EPT-10
(10) 24 AWG WIRES
MAX. RATING
UP TO 1 AMP @ 24VDC

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
CAT EPTALUM2W Auminum, 2W
CAT EPTALUM10W Auminum, 10W
CAT EPTDURO2W Duronatic, 2W
CAT EPTDURO10W Duronatic, 10W
