Ekey 102076 FS OM E BL RFID Crestron, RS-485 800 Fingers BAUD19200

Model: 102076

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Ekey 102076 FS OM E BL RFID Crestron, RS-485 800 Fingers BAUD19200

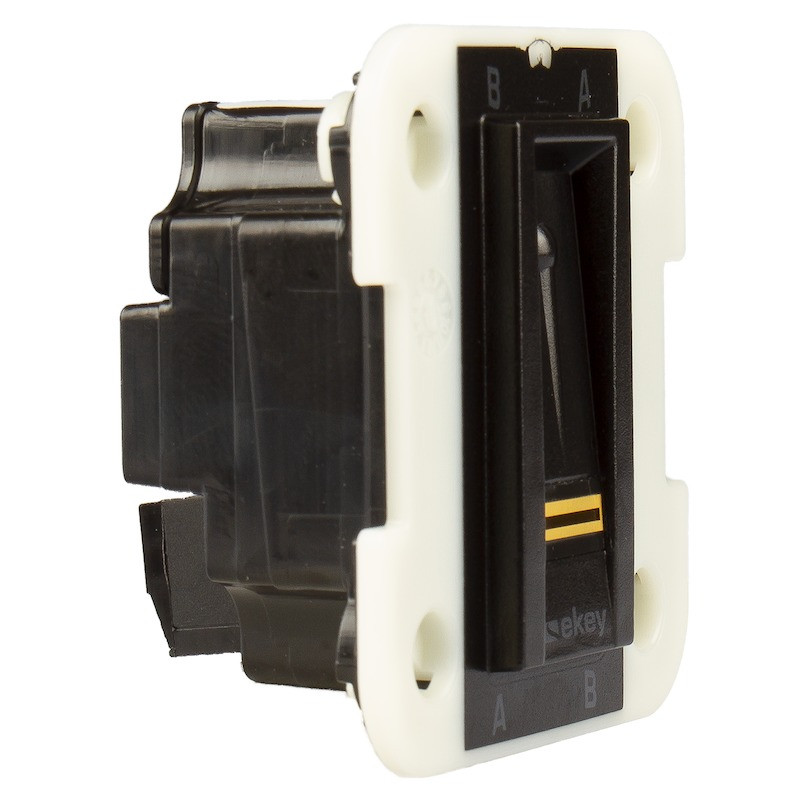

The finger scanner outlet-mounted black for electricians with RFID function for flush-mounting installation is a biometric sensor terminal for the registration of fingerprints by means of an RF line sensor from AuthenTec. The finger scanner also functions as an RFID terminal, which can be used with RFID cards. The finger scanner is for use in Crestron control systems. This finger scanner is used to identify authorized users and is intended for use in both domestic and business applications. The finger scanner is designed for fixed flush-mounting installation on immobile components, such as masonry.

Specifications

Supply typ: DC
Maximum supply voltage: 24 V
Minimum supply voltage: 8 V
Maximum current consumption: 470 mA
Minimum current consumption: 100 mA
Current consumption rating: 130 mA
Maximum power: 4 W
Minimum power: 0.8 W
Power rating: 1 W
Minimum operating temperature: -25
Ekey Warranty
