Reduced price! Falcon 19 Series Rim Strike

View larger

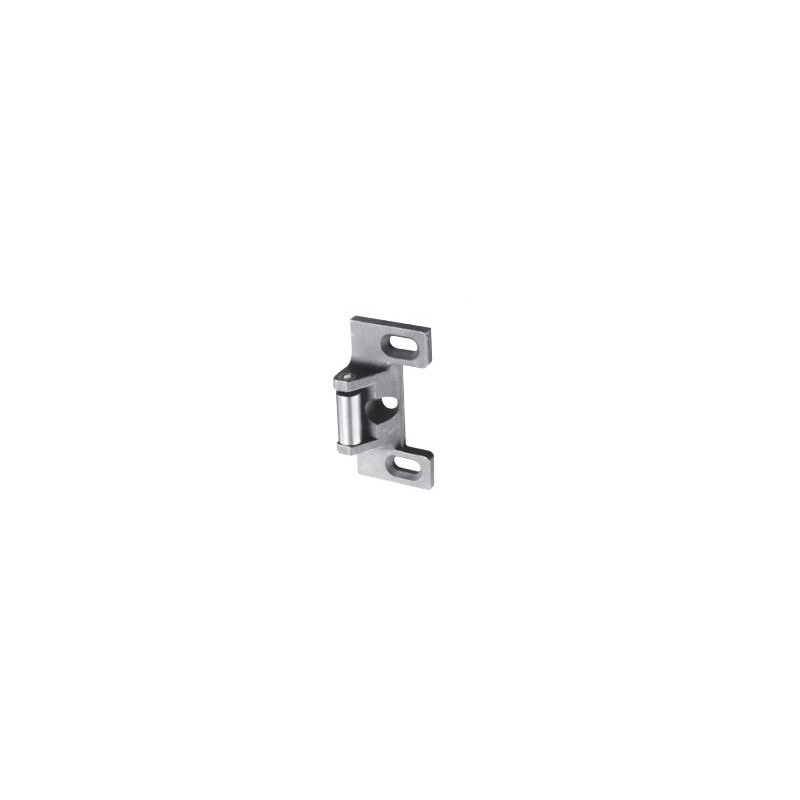

Falcon 19 571 Series Rim Strike For 19-R Panic & Fire Exit Device

Model: 571

Finish: Unfinished

edit options

Write a review

Item normally ships out within 3-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Falcon 19 571 Series Rim Strike For 19-R Panic & Fire Exit Device

The 19 Series narrow stile exit devices provide value and dependability on light- to medium-duty door applications. They can be mounted on interior or exterior single or double doors, where traffic is not consistently heavy.

Ideal for commercial, multi-family, office, retail and other medium-traffic installations, the 19 Series exit devices are an affordable and reliable choice. A certified ANSI/BHMA A156.3-2001 Grade 1 exit device, they are non-handed and covers a 161 door prep. The 19 Series offer multiple functions and a full trim complement

Features

Certified ANSI/BHMA A156.3-2001 Grade 1
Stainless steel push pad provides a scratch-resistant pushing surface
Covers a 161 door prep for easy field retrofit
Offered in two common industry device types: rim and surface vertical rod device
Offered in five trims and three finish options
Optional "B" label (1-1/2-hour) fire exit construction

Finishes

SP28
SP313
US32D

Trim Options

Exit only (EO) - No trim, exit device only.
Lever trim (912 Series) - Standard escutcheon trim with lever design. Lever (L): key locks and unlocks the trim. Night latch (L-NL): key retracts latch but does not unlock trim. Dummy trim (L-DT): no cylinder, acts as a pull. Blank escutcheon (L-BE): no cylinder or lever.
Knob trim (911 Series) - Standard escutcheon trim with knob design. Knob (K): key locks and unlocks the trim. Night latch (K-NL): key retracts latch but does not unlock trim. Blank escutcheon (K-BE): no cylinder or lever.
Key-in-lever (914 Series) - Rose trim with key in lever. Key-in-lever (KIL): provides storeroom functionally on the trim side, key retracts latch but does not unlock trim with a standard cylinder. Key-in-lever interchangeable core (KIL-IC): provides storeroom functionally on the trim side, key retracts latch but does not unlock trim with a small format interchange core (SFIC).
Centron trim (930 Series) - Pull trim and plates.
Exit only (EO) - Plate with no cylinder or pull, exit only. Cylinder (C): plate with cylinder only, no pull, key retracts latch but does not unlock trim. Dummy trim (DT): pull trim only, no cylinder. Night latch (NL): pull trim with cylinder, key retracts latch but does not unlock trim.
Trident trim (920 Series) - Lip pull trim. Dummy trim (DT): pull trim only, no cylinder. Night latch (NL): pull trim with cylinder, key retracts latch but does not unlock trim.
Control trim (918 Series) - Standard pull trim. Dummy trim (DT): pull trim only, no cylinder. Night latch (NL): pull trim with cylinder, key retracts latch but does not unlock trim.
Pull (9970 Series) - Standard pull trim.

Specifications

Certifications: ANSI: certified ANSI A156.3 2001 Grade 1 standards
Rim device: 19-R Series rim device. F-19-R Series rim device.
Surface vertical: 19-V vertical rod device. F-19-V vertical rod device.
