Reduced price! Falcon T-Series Latches Sold Seperately

View larger

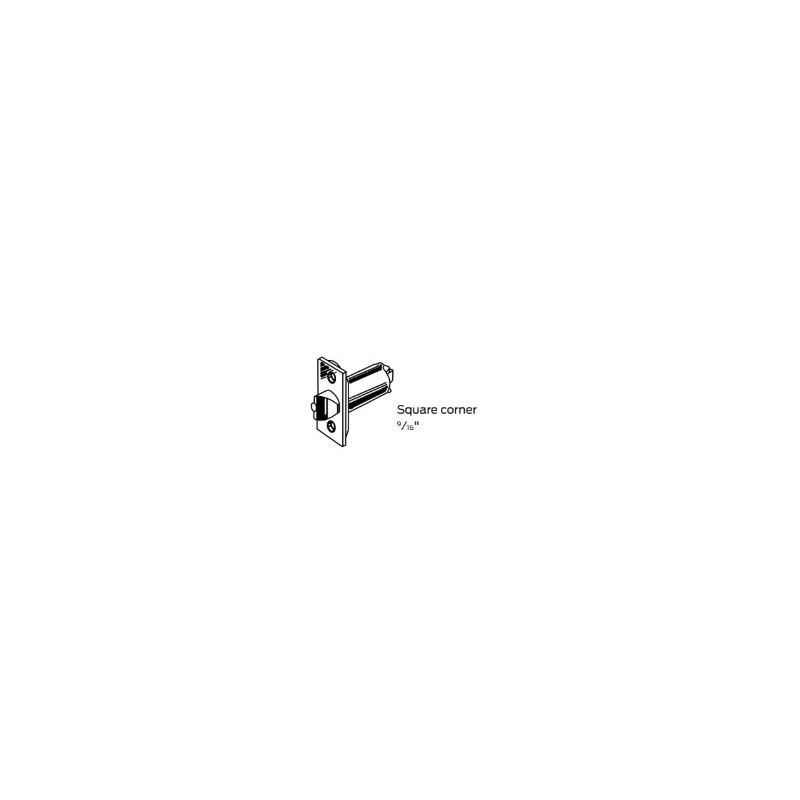

Falcon 2 T-Series Latch

Model:

Write a review

Item normally ships out within 3-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Falcon 2 T-Series Latch

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple.

The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

Features

Security

Pressure Release lever rotation standard prevents the damage to internal lock components when subjected to excessive force
Heavy-duty compression springs behind the rose provide consistent lever return and prevent lever sag
Inside levers are attached by Allen-head set screw, which prevents tampering or vandalism

Reliability

Trim is through-bolted with two 10-32 screws coated with thread sealant
Certified Grade 1 and UL10C 3-hour A label
Lever designs exceed ADA and state disability requirements

Compatibility

Adjustable door thickness from 1-3/4" to 2-1/8" to fit all common door thicknesses
Non-handed design
Does not require field disassembly for re-handing
Fits most competitors' conventional key systems, small format interchangeable cores (SFIC), and Schlage full size interchangeable cores (FSIC)

Finishes

Bright Brass
Satin Brass
Satin Bronze
Oil Rubbed Bronze
Aged Bronze
Satin Nickel
Matte Black
Bright Chrome
Satin Stainless Steel

Designs

Levers are available in 7 different styles to complement modern designs
Additional options, such as abrasive coating and lead lining, are available on all T Series levers to cover various application requirements
Levers are solid pressure cast zinc finished to match mating parts
Roses are wrought brass or bronze installed over steel through-bolted rose inserts
All levers are available with abrasive coating along the length of the lever to identify entrances of hazardous areas to the handicapped

Specifications

Certifications: ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1. UL: 3 hour A label and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.

Downloads

Falcon Locks Warranty

Falcon T Series

Falcon T Series Grade 1, Cylindrical Lock
$254.40
Falcon A231 T Series Complete Conventional Cylinder
$45.60
Falcon A30730 T Series Tailpiece For Conventional Cylinder (10/pack)
$19.56
Falcon T Series IC Throw Member (Tailpieces)
$2.46
Falcon T Series Strike
$11.40

Falcon Lock Comparison

		Features	Application	Options
T Series	Cylindrical	Grade 1 certified Wide variety of functions and options Can accept competitive standard cylinders SFIC and FSIC	Ideal for new construction and retrofit applications where Grade 1 security is needed	15 commercial functions 8 finishes 7 lever designs
K Series		Grade 1 certified Most common functions, lever styles and finishes Affordable price	Where Grade 1 security and reliability are needed, but cost is a concern	8 commercial functions 2 finishes 3 lever designs
X Series		Grade 1 certified Corrosion resistant option Compatible with competitive SFIC	Where a Grade 1 security lock is needed and corrosive marine conditions could be a concern	10 commercial functions 6 finishes 3 knob designs 2 rose options
B Series		Grade 2 certified Perfect replacement for existing locks or new construction Compatible with competitive SFIC	Where frequent use is expected and durability is needed, but Grade 1 security is not required	10 commercial functions 5 finishes 2 lever designs
W Series		Grade 2 certified Two rose diameter options to match most commerical door trim	Applications with nontraditional door trim where cost is a concern	12 commercial lever functions 8 commercial knob functions 8 finishes 7 lever/2 knob designs 2 rose options
D100 Series	Deadbolt	Grade 1 certified for security Supplemental protection against break-in Compatible with competitive SFIC	Where supplemental Grade 1 security is required	5 commercial functions 5 finishes
D200 Series	Deadbolt	Grade 2 certified for security Supplemental protection against break-in Compatible with competitive SFIC	Where supplemental, Grade 2 security is required	8 commercial functions 5 finishes
RU Series	Unit	Grade 1 certified Old-fashioned style with modern strength, security and convenience Compatible with competitive SFIC	Retrofitting older and historical buildings where Grade 1 security is required	12 commercial functions 2 finishes 2 lever designs
MA Series	Mortise	Grade 1 certified One of Falcon's toughest locks that is built to stand up to constant use without fail Compatible with competitive SFIC	Where a tough-as-nails, reliable and durable Grade 1 security lock is required Facilities where a large variety of applications are needed	26 commerical functions 9 finishes 8 lever designs 1 knob design Rose (sectional) and escutcheon option
H2 Series	Interconnected	Grade 2 certified Large inner plate that connects lock and deadbolt Exterior has the appearance of a tubular lock and deadbolt	Where strength and security are required, but cost is a concern Used in multi-family applications for one step egress	2 commercial functions 5 finishes 5 lever design

Available Model Numbers and Combinations

Model/SKU	Attributes
23981160613	Oil Rubbed Bronze
23981160630
23981145606	Satin Brass
23981145613	Oil Rubbed Bronze
23981145630
23981152606	Satin Brass
23981152613	Oil Rubbed Bronze
23981152630
23981129606	Satin Brass
23981129613	Oil Rubbed Bronze
23981129630
43-005606	Satin Brass
23981111606	Satin Brass
43-005613	Oil Rubbed Bronze
23981111613	Oil Rubbed Bronze
