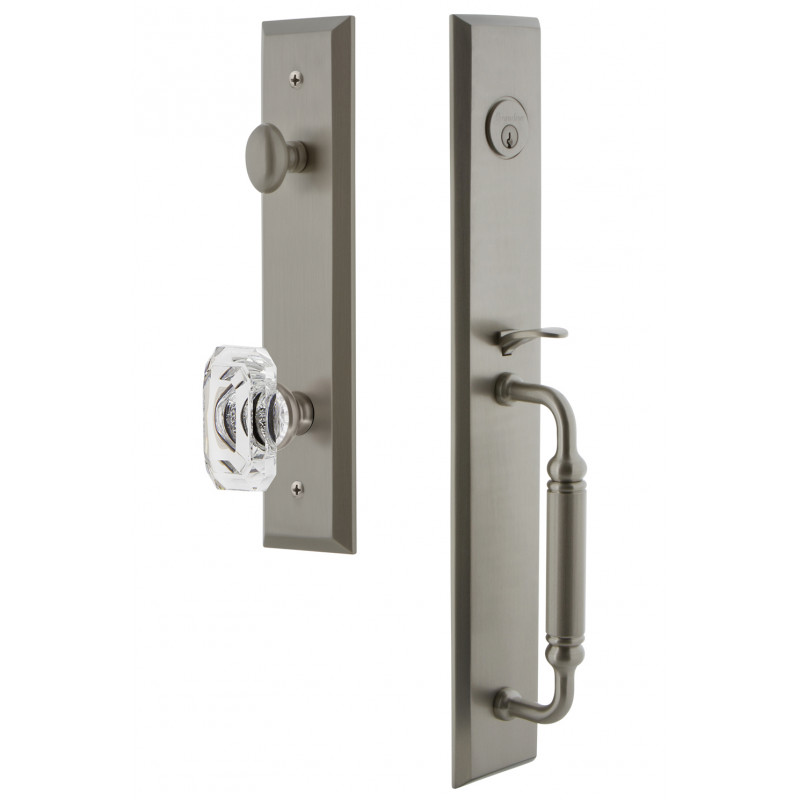

Grandeur Fifth Avenue One-Piece Handleset w/ Baguette Clear Crystal Knob

Model:
Part #: 842518

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Grandeur Fifth Avenue One-Piece Handleset w/ Baguette Clear Crystal Knob

The simple, straight lines and tailored outer edges provide a custom look to your door giving it a broad appeal for almost any home. The Fifth Avenue One-Piece Handleset is available with any Grandeur Hardware knob and lever. Offered in the following Grandeur designer finishes to help you mix and match your door hardware: Vintage Brass, Antique Pewter, Satin Nickel, Timeless Bronze and Lifetime Brass.

Deadbolt latch and kit with cylinder, exterior one piece handleset trim with grip, interior tall plate trim with turn, passage latch and kit, screws to install and two keys.

Made of solid, forged brass for long lasting durability
Ideal for doors that are 84 inches or higher, where a standard height plate would not look to scale
Drilling template and mounting hardware included for easy installation
Available in 5 designer finishes
Available with all Grandeur Hardware door knobs and levers

Design Code: FAVCGRBCC
Collection: Fifth Avenue
Category: Entry Set
ADA Rated: NO
Finishes Available: Antique Pewter, Lifetime Brass, Satin Nickel, Timeless Bronze, Vintage Brass
Material: Brass/24% Lead Crystal
Door Handing: Non-handed
Backset Options: 2-3/8", 2-3/4"
Assembled In: YES

Dimensions

Grip Center to Center: 8.46"
Exterior One Piece Handleset Height: 19"
Exterior One Piece Handleset Width: 3"
Exterior One Piece Handleset Plate Thickness: 0.5"
Interior Tall Plate Height: 11"
Interior Tall Plate Width: 2.625"
Interior Tall Plate Thickness: 0.39"
Knob Height: 2.75"
Knob Width: 2.75"
Projection: 3"
Cross Bore Distance Center to Center: 5.5"
Cross Bore: 2.125"
Thumb Turn Diameter: 1.375"
Thumb Turn Projection: 1.55"
Edge Bore Hole Diameter: 1"
Door Bore Hole Diameter: 2.125"
Strike Height: 2.25"
Strike Width: 1"
Deadbolt Throw Length: 1"

Shipping

Box Size: 7" × 5-1/8" × 19 1/4"
Shipping Weight: 8 lbs

Grandeur Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
FAVSGRBCC 83 KA VB 238	Vintage Brass, Keyed Alike, S Grip, Entry,
FAVSGRBCC 83 KD AP 238	Keyed Different, S Grip, Entry, Antique Pewter,
FAVSGRBCC 83 KD AP 234	Keyed Different, S Grip, Entry, Antique Pewter,
FAVSGRBCC 83 KD LB 234	Lifetime Brass, Keyed Different, S Grip, Entry,
FAVSGRBCC 83 KD SN 234	Satin Nickel, Keyed Different, S Grip, Entry,
FAVSGRBCC 83 KD TB 234	Keyed Different, Timeless Bronze, S Grip, Entry,
FAVSGRBCC 83 KD VB 234	Vintage Brass, Keyed Different, S Grip, Entry,
FAVSGRBCC 83 KD LB 238	Lifetime Brass, Keyed Different, S Grip, Entry,
FAVSGRBCC 83 KD SN 238	Satin Nickel, Keyed Different, S Grip, Entry,
FAVSGRBCC 83 KD TB 238	Keyed Different, Timeless Bronze, S Grip, Entry,
FAVSGRBCC 83 KD VB 238	Vintage Brass, Keyed Different, S Grip, Entry,
FAVSGRBCC 84 TB	Dummy, Timeless Bronze, S Grip,
FAVSGRBCC 84 VB	Dummy, Vintage Brass, S Grip,
FAVSGRBCC 84 AP	Dummy, S Grip, Antique Pewter,
FAVSGRBCC 84 LB	Lifetime Brass, Dummy, S Grip,
