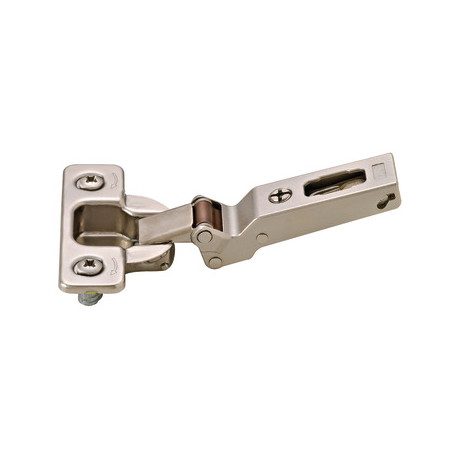

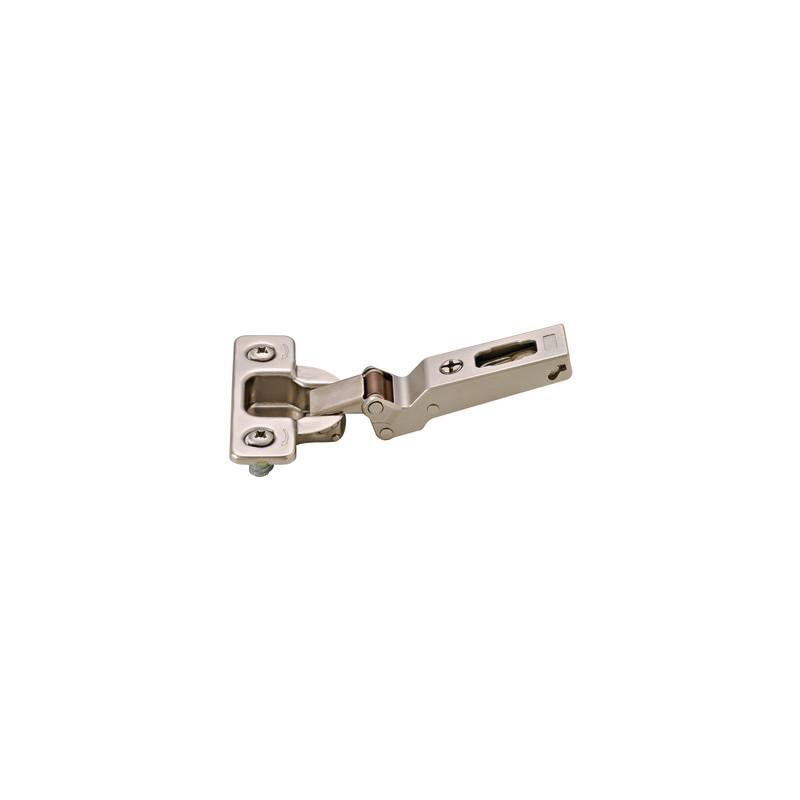

> >>>>Hafele 329.09. Concealed Hinge, Salice, - 45D Corner Special Application, Full Overlay
Hafele 329.09. Concealed Hinge, Salice, - 45D Corner Special Application, Full Overlay View larger

Hafele

Hafele 329.09. Concealed Hinge, Salice, - 45D Corner Special Application, Full Overlay

329.09.

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$6.77

Details: Hafele 329.09. Concealed Hinge, Salice, - 45D Corner Special Application, Full Overlay

Specifications

Crank type
Straight
Door processing for assembly
with cup drilling
Material
Cup: Steel, Hinge arm: Zinc alloy
Corner applications
- 50D, - 45D and - 40D
Cup drilling depth
11 mm
Cup drilling
35 mm

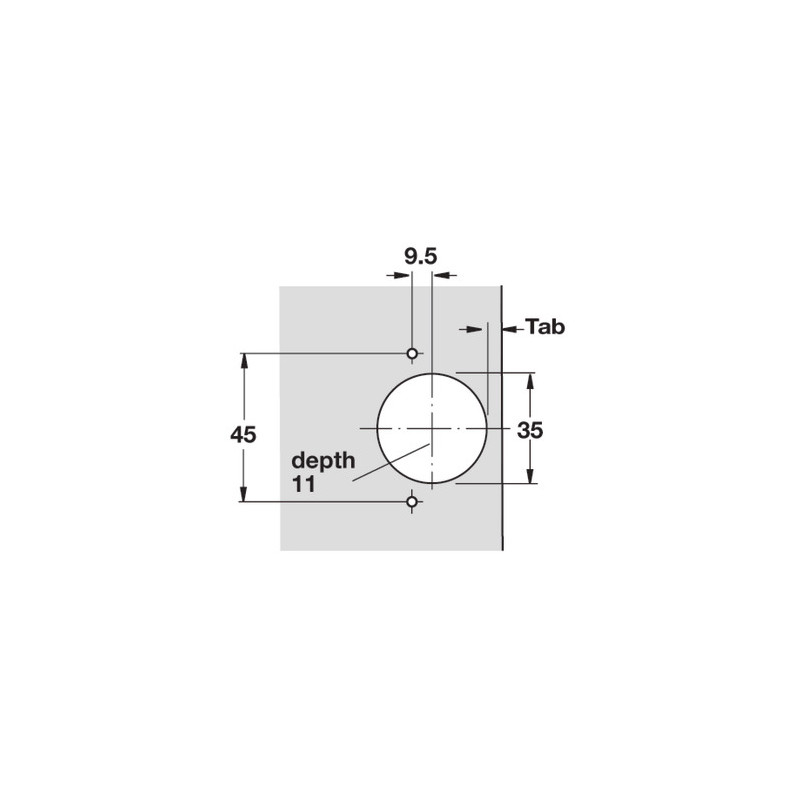

Drilling pattern
45/9.5
Installation
Rapido fixing

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government,
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
