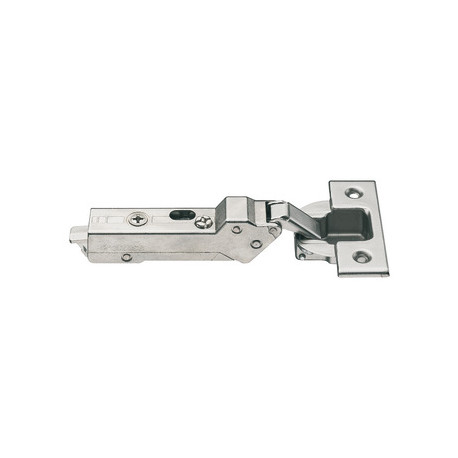

Hafele 348.31. Concealed Hinge, Grass Tiomos, 110D Half Overlay/Twin Mounting, Steel, Nickel-Plated

Model: 348.31.

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 348.31. Concealed Hinge, Grass Tiomos, 110D Half Overlay/Twin Mounting, Steel, Nickel-Plated

Features

optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm
with automatic opening mechanism for convenient opening of front panels without handles
Optimum gap dimensions with door thickness of up to 24 mm

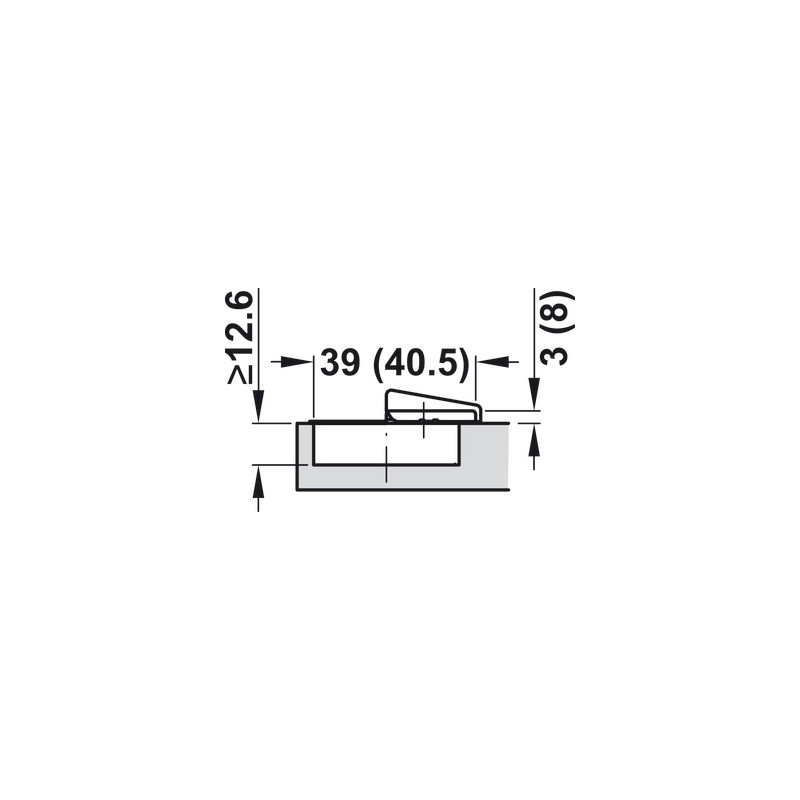

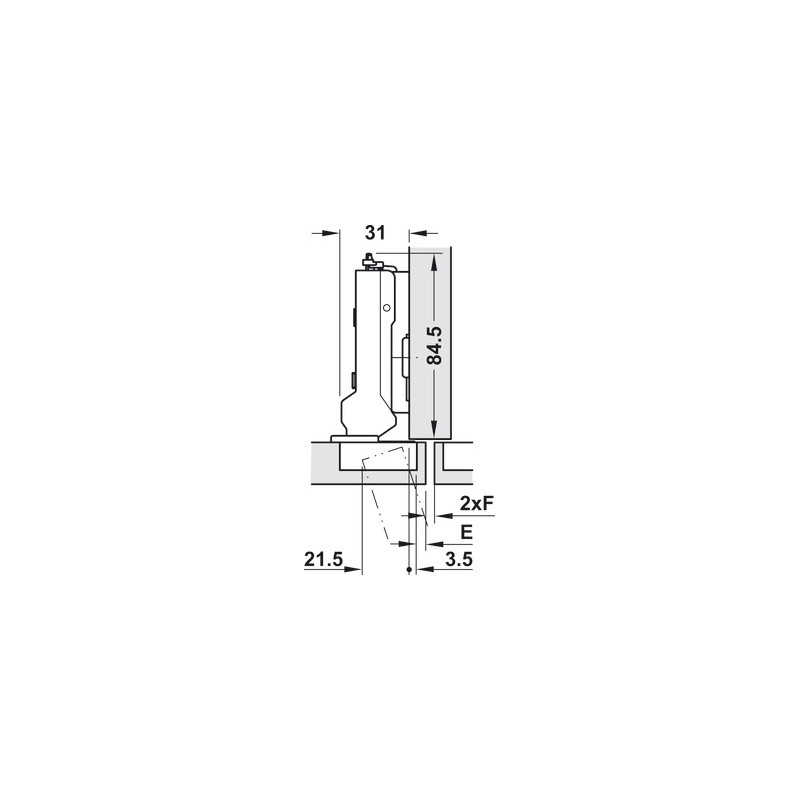

Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2 mm.

Specifications

Concealed hinge version: full overlay
Crank type: Cranked
For door material: wood
Door processing for assembly: with cup drilling
Material: Steel
Color/finish
: nickel plated
Opening angle: 110D

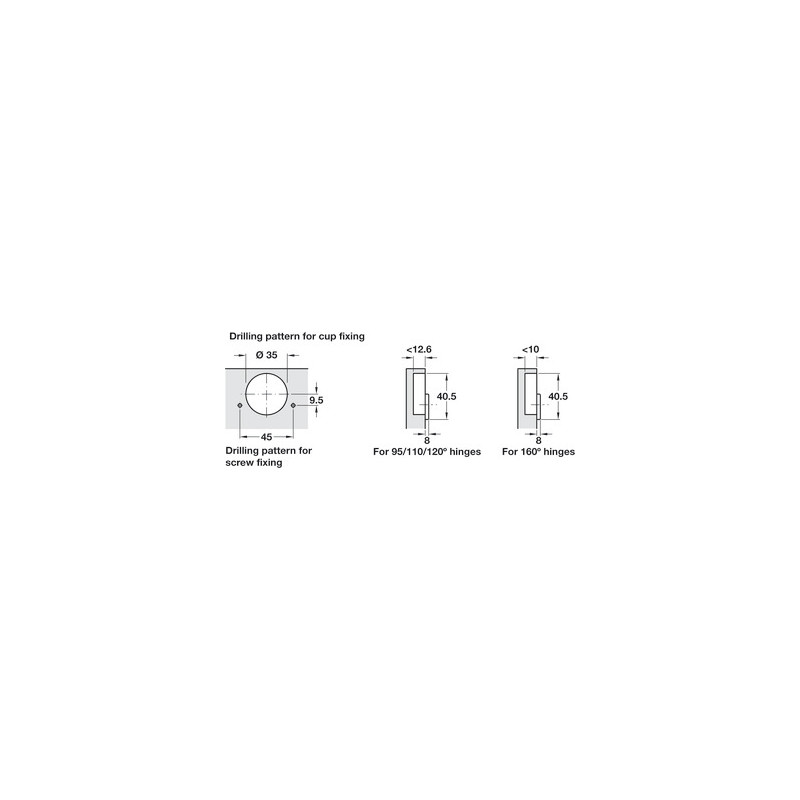

Cup drilling depth: 12.6 mm
Cup drilling: 35 mm

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use
