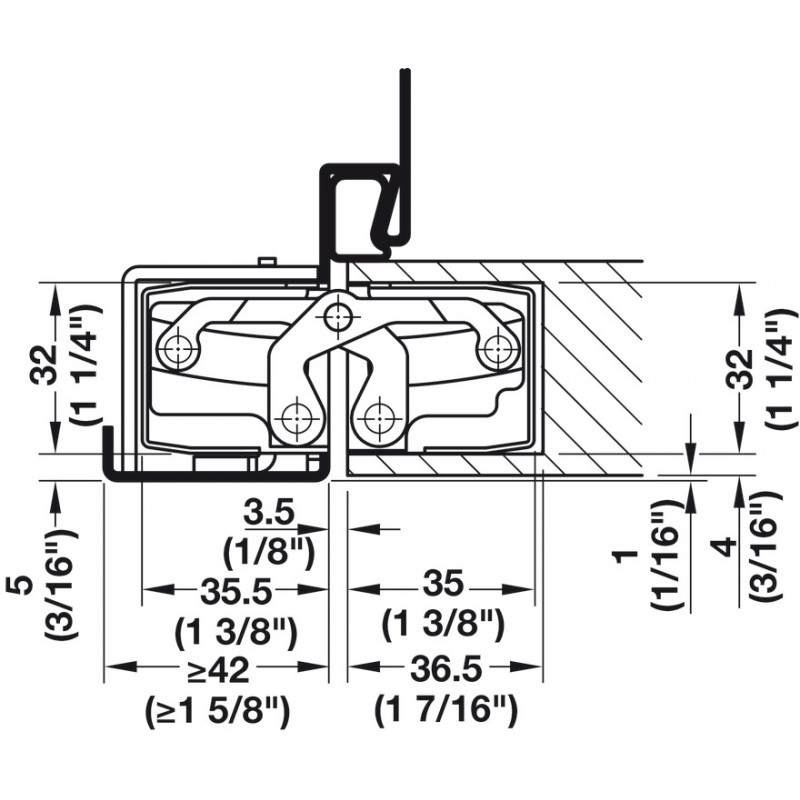

Hafele 924 Concealed Hinge for Tectus TE 540 3D, Aluminum Die-Cast

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$383.54

Details: Hafele 924 Concealed Hinge for Tectus TE 540 3D, Aluminum Die-Cast

Features

  • Maintenance-free slide bearings
  • Used in door frames made out of hollow metal or wood in flush interior doors
  • Maintenance-free slide bearings
  • Suitable for left and right hand applications
  • UL listed for 20 minute rated fire doors (Maximum door size: 4' × 8' for a single door, 8' 8' for a pair of doors)

Specifications

Mounting
For DIN left and DIN right hand use
Flange shape
Rounded
Flange width
32 mm
Material
Aluminum, Steel
Flange height
200 mm
Door weight max.
264 lbs
For door thickness min.
1-9/16"
Model series
TE 540 3D
Area of application
Used in door frames made out of hollow metal or wood for flush doors
Maximum door size
4 x 8 for a single door, 8 x 8 for a pair of doors
For frame type
Steel frame, Wooden/lining frame , Aluminium frame
Max. door weight for 2 hinges
120.00 kg
Opening angle
180.00 degree
Router bit dia
24.00 mm
Router bit dia
15/16"; Guide - 1-3/16"
Thrust ring dia
30.00 mm
Standard
Certified in compliance with EN 1935:2002

Applications

  • Oil, Gas & Chemical Industries
  • Construction & Welding
  • OSHA Safety
  • Warehousing & Transport
  • Manufacturing Industries
