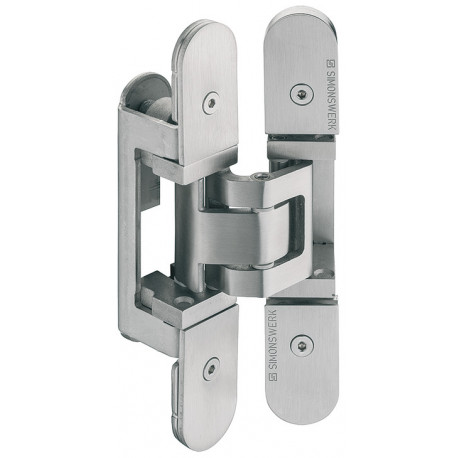

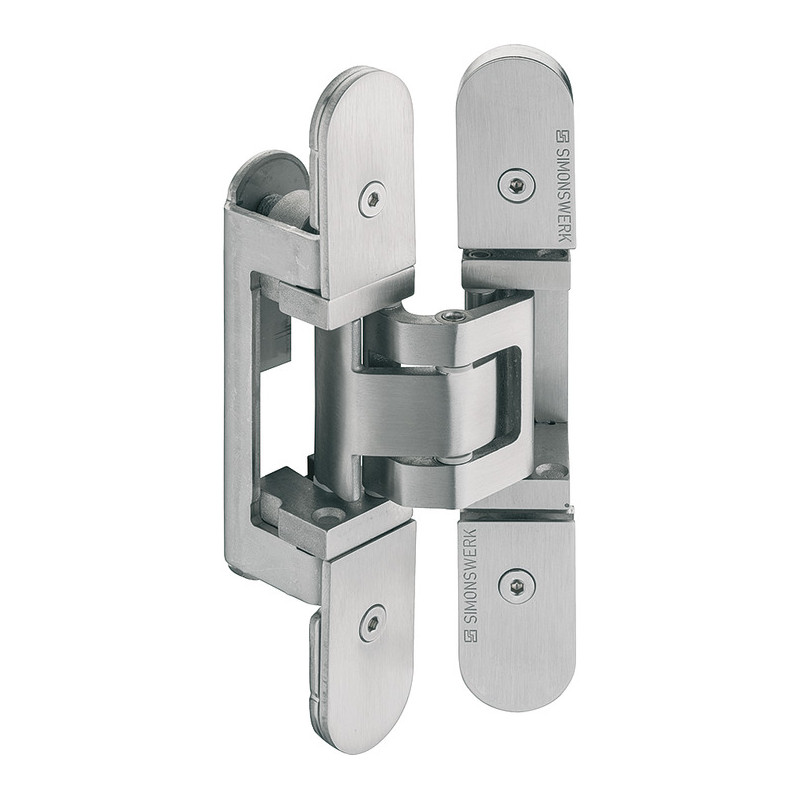

Hafele 924.16.803 Concealed Hinge for Simonswerk Tectus TE 526 & 527 3D, Flush Doors View larger

Hafele

Previous Next

Hafele 924.16.803 Concealed Hinge for Simonswerk Tectus TE 526 & 527 3D, Flush Doors

924.16.803

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$649.88

Details: Hafele 924.16.803 Concealed Hinge for Simonswerk Tectus TE 526 & 527 3D, Flush Doors

Features

  • Used in door frames made out of hollow metal or wood in flush interior doors
  • Maintenance-free slide bearings
  • Suitable for left and right hand applications
  • UL listed for 45 minute rated fire doors

Specifications

Mounting
For DIN left and DIN right hand use
Flange shape
Rounded
Flange width
26 mm
Color/finish
Matt
Material
Stainless steel
Model
TE 526 3D
Flange height
155 mm
Door weight max.
264 lbs
For door thickness min.
1-3/8"
Model series
TECTUS
Area of application
For wooden, steel or aluminium frames, for flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Opening angle
180.00 degree
Router bit dia
24.00 mm
Thrust ring dia
30.00 mm
Bearing type
Friction bearing, maintenance-free
Standard
Certified in compliance with EN 1935:2002

Applications

  • Oil, Gas & Chemical Industries
  • Construction & Welding
  • OSHA Safety
  • Warehousing & Transport
  • Manufacturing Industries

Downloads

TCH_Architectural_Hardware
