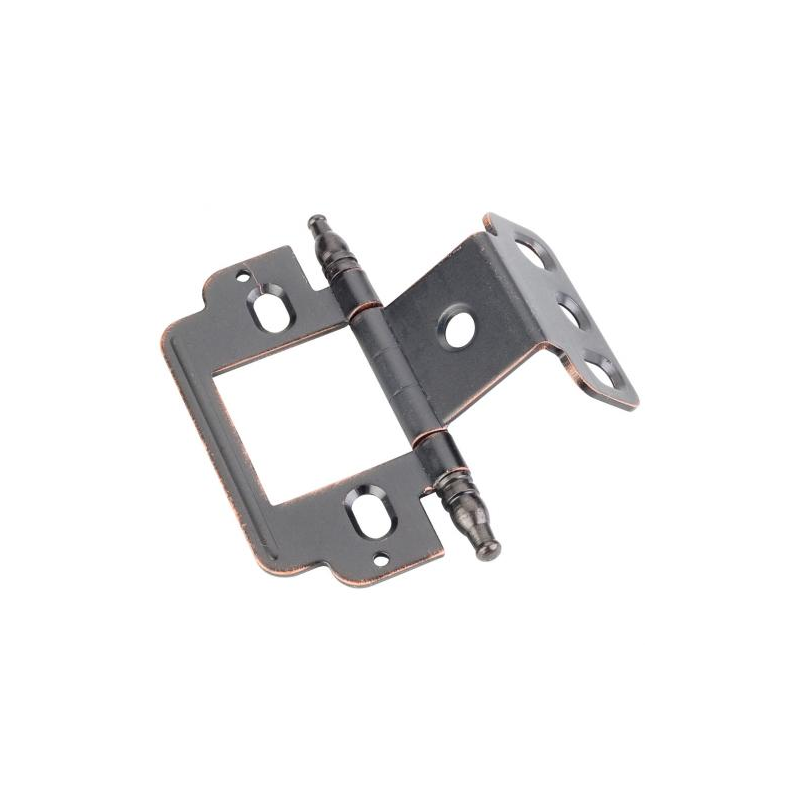

Reduced price! Hardware Resources 0148 Partial Wrap Around Hinge, Full Inset "A" Style Minaret Tip For 3/4" Frame x 3/4" Door

View larger

Hardware Resources 0148 270 Deg. Partial Wrap For 3/4" Frame x 3/4" Door, Inset Flush,"A" Style Minaret Tip Hinge

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 0148 270 Deg. Partial Wrap For 3/4" Frame x 3/4" Door, Inset Flush,"A" Style Minaret Tip Hinge

Features

"A" Style Minaret Tip Design For 3/4" frame and 3/4" door, 270 Degree opening
Stylish ball tips for shaker style cabinets with raised panel doors
Non-mortise hinge quickly installs and yields minimal door gap
Slotted holes provide vertical adjustment
For full inset frame applications
No.6 × 5/8" flat head screw recommended for attachment to frame and No.6 × 1/2" flat head screw recommended for door attachment

Specifications

Closing: Free-swinging
Hinge Type: Decorative
Inset: Full
Recommended Screws: No.6 x 5/8" flat head screw for attachment to frame and No.6 x 1/2" flat head screw for door attachment
Cabinet Type: Faceframe
Pivot Type: Single
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 270 Degree
Overlay: Inset
Brand: Hardware Resources
Series: 0148
Material: Steel
Installation: Screw
Mount Type: Screw
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
