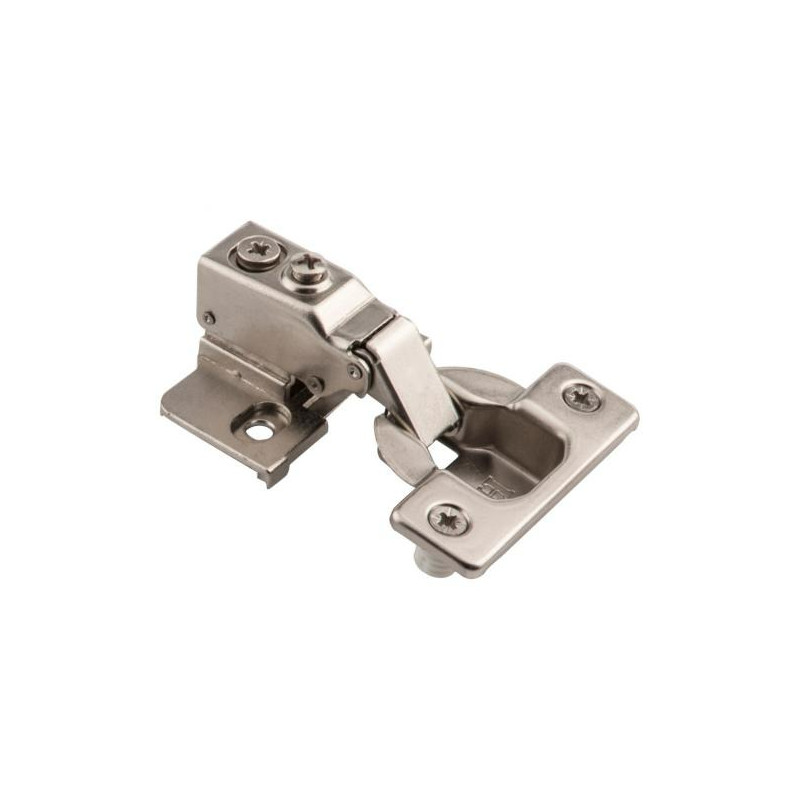

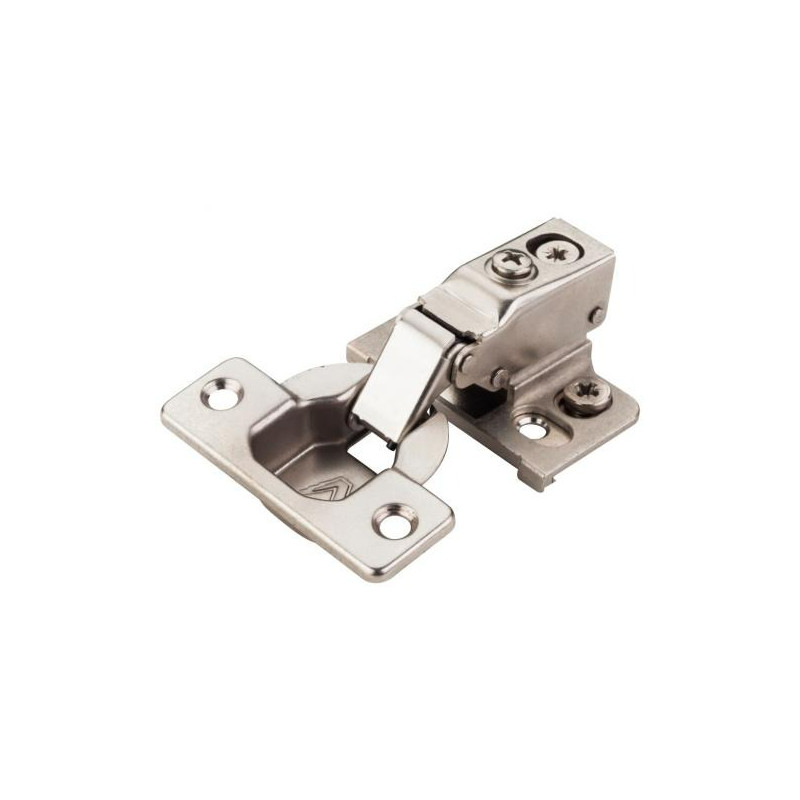

Hardware Resources 22855 Soft-close Face Frame Hinge

View larger

Hardware Resources 22855 HR MAX Soft-Close Face Frame Hinge, 105 Deg., 1/2" Overlay Cam Adjustable

Model: 22855-

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 22855 HR MAX Soft-Close Face Frame Hinge, 105 Deg., 1/2" Overlay Cam Adjustable

Features

HR Max = Quality backed by Lifetime warranty
Robust die cast face frame plate securely grasps the frame and provides two attachment points
Concealed soft-close damper
One piece 6-way adjustable compact assembly with vertical, horizontal, and depth cam adjustment dual pivot point
Dual Pivot Point brings the door closer to the cabinet reducing door gap.
Cold rolled steel with nickel plating
45 mm boring pattern
No.6 × 5/8" pan washer head screw (6X258017Q) recommended

Specifications

Closing: Soft-close
Hinge Cup Bore Depth: 12.5 mm
Hinge Type: Compact
Mount Centers: 45 mm
Recommended Screws: No.6 x 5/8" pan washer head screw (6X258017Q)
Cabinet Type3Faceframe
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 105 Degree
Overlay: 1/2"
Adjustment Type: Cam
Brand: HR Max
Series: 22855
Hinge Cup Diameter: 35 mm
Material: Steel
Patent: 7594300
Certification: ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
