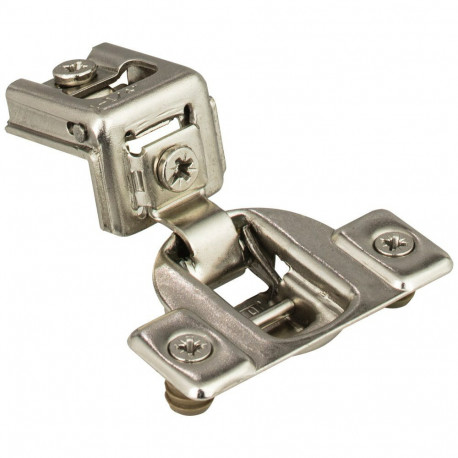

Hardware Resources 3394-2C Self-Close Compact Hinge with 2 Cleats and 8 mm Dowels

View larger

Hardware Resources 3394 HR MAX Economical Standard Duty Self-Close Compact Hinge w/ Dowel

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 3394 HR MAX Economical Standard Duty Self-Close Compact Hinge w/ Dowel

Features

HR Max = Quality backed by Lifetime warranty
Market proven economical standard duty compact hinge
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
6-way adjustability
Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
For face frame applications
Single pivot point
45 mm boring pattern
No.7 × 5/8" pan washer head screw (7X0580WCQ) recommended

Specifications

Closing: Self-close
Hinge Cup Bore Depth: 12.5 mm
Hinge Type: Compact
Mount Centers: 45 mm
Recommended Screws: No.7 x 5/8" pan washer head screw (7X0580WCQ)
Pivot Type: Single
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 105 Degree
Overlay: 1-1/4"
Overlay Adjustment: +2 mm, -2 mm
Adjustment Type: Cam
Brand: HR Max
Series: 3390 Series
Finish: Polished Nickel
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Patent: 7653967
Certification: ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Mount Type: Press-in

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
