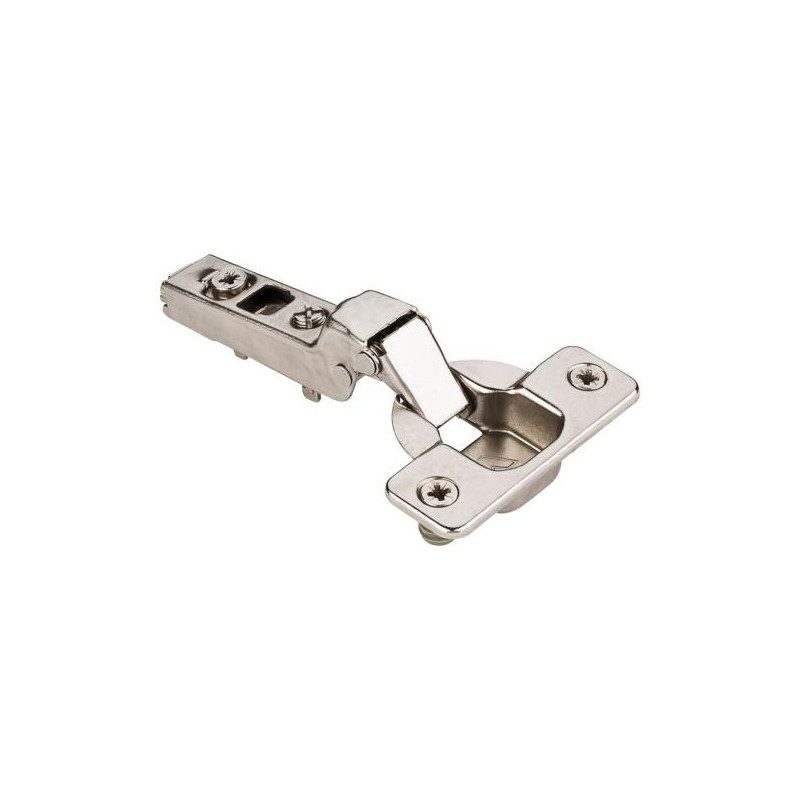

Hardware Resources 500.0179.75 Partial Overlay Self-close Hinge with Dowels

View larger

Hardware Resources 500.0 HR MAX Standard Duty Hinge w/ Press-In Dowel, 110 Deg.

Model:

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Use With:-

Hardware Resources 400.011 HR MAX Standard Duty Non-Cam Adjustable Steel...
$0.83
View Details
Hardware Resources 400.0P7 HR MAX Standard Duty Adj Steel Plate w/ Euro Screw
$1.32
View Details
Hardware Resources 400.0P29.75 HR MAX Heavy Duty Zinc Die Cast Plate w/ Euro...
$2.93
Hardware Resources 400.0P7 HR MAX Heavy Duty Zinc Die Cast Plate w/ Euro...
$2.23
View Details
Hardware Resources 400.0R2 HR MAX Standard Duty Steel Plate For 500 Series...
$1.19
View Details
Hardware Resources 400.0R23.75 HR MAX Heavy Duty Zinc Die Cast Plate, Cam Adj.
$2.04
Hardware Resources 400.0R30.75 HR MAX Heavy Duty Zinc Die Cast Plate, Cam...
$2.59
Hardware Resources 400.1233.75 HR MAX Standard Duty Steel Plate w/o Screw,...
$0.69
Hardware Resources 400.1234.75 HR MAX Standard Duty Steel Plate, Non-Cam Adj.
$0.69
Hardware Resources 400.345 HR MAX Heavy Duty Zinc Die Cast Plate w/o Screw,...
$1.37
View Details
Hardware Resources 400.3456.75 HR MAX Heavy Duty Zinc Die Cast Plate, Non-Cam...
$2.93
Hardware Resources 400.3457.75 HR MAX Standard Duty Steel Plate, Non-Cam Adj.
$0.69
Hardware Resources 400.3553.75 HR MAX Heavy Duty Zinc Die Cast Plate For...
$1.55
Hardware Resources 400.3554.75 HR MAX HD Non-Cam Adj Zinc Die Cast Plate For...
$1.55
Hardware Resources 400.371 HR MAX Heavy Duty Zinc Die Cast Plate, Non-Cam Adj
$1.32
View Details
Hardware Resources 400.3723.75 HR MAX Heavy Duty Zinc Die Cast Plate For 125...
$2.05
Hardware Resources 400.3724.75 HR MAX Heavy Duty Zinc Die Cast Plate For 125...
$2.18
Hardware Resources 500.SC HR MAX Clip-On Soft-Close Device For Long-Arm...
$4.28
Hardware Resources 575.RC HR MAX 90 Deg. Restrictor Clip For 500 Series Hinge
$0.14

Details: Hardware Resources 500.0 HR MAX Standard Duty Hinge w/ Press-In Dowel, 110 Deg.

Features

HR Max = Quality backed by Lifetime warranty
Standard Duty European Hinge with the performance you need and competitive price point
Hinge and plate provide 6-way adjustability
Compatible with 400 series mounting plates
9 mm Crank
6-Way adjustability: Horizontal, depth and vertical with plate

Specifications

Closing: Self-close
Hinge Cup Bore Depth: 11.2 mm
Arm Type: Half Cranked
Hinge Type: European
Mount Centers: 45 mm
Cabinet Type: Faceframe or Frameless
Pivot Type: Dual
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 110 Degree
Overlay: Half Overlay
Hinge Crank Amount: 9 mm
Overlay Adjustment: +2 mm, -2 mm
Depth Adjustment: +3 mm, -2 mm
Brand: HR Max
Series: 500 Series
Finish: Polished Nickel
Overall Length: 68 mm
Height: 20.7 mm
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Certification: ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation: Press-in 8 mm Dowels
Mount Type: Press-in

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
