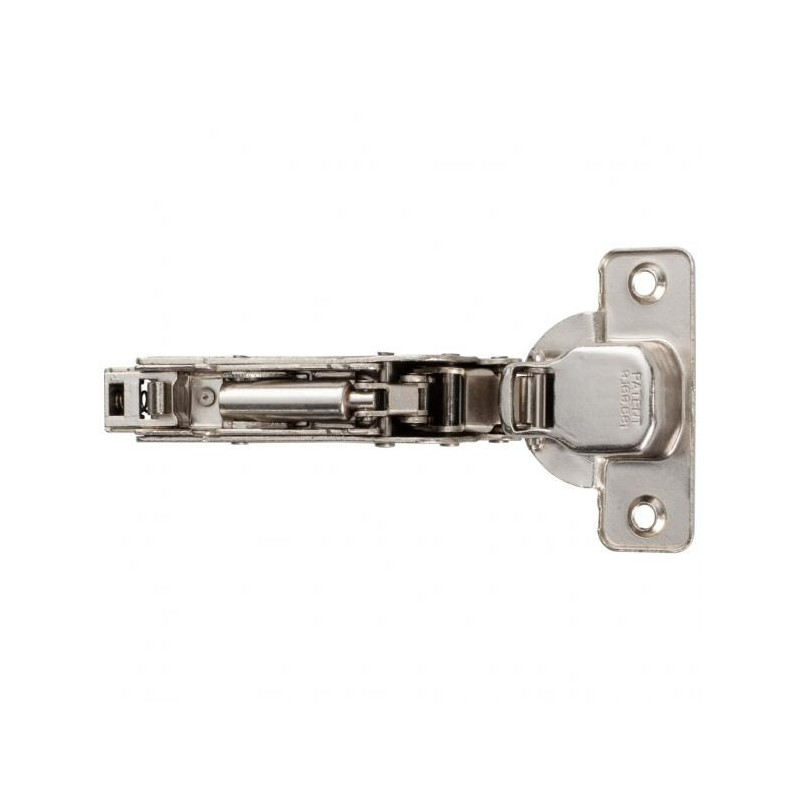

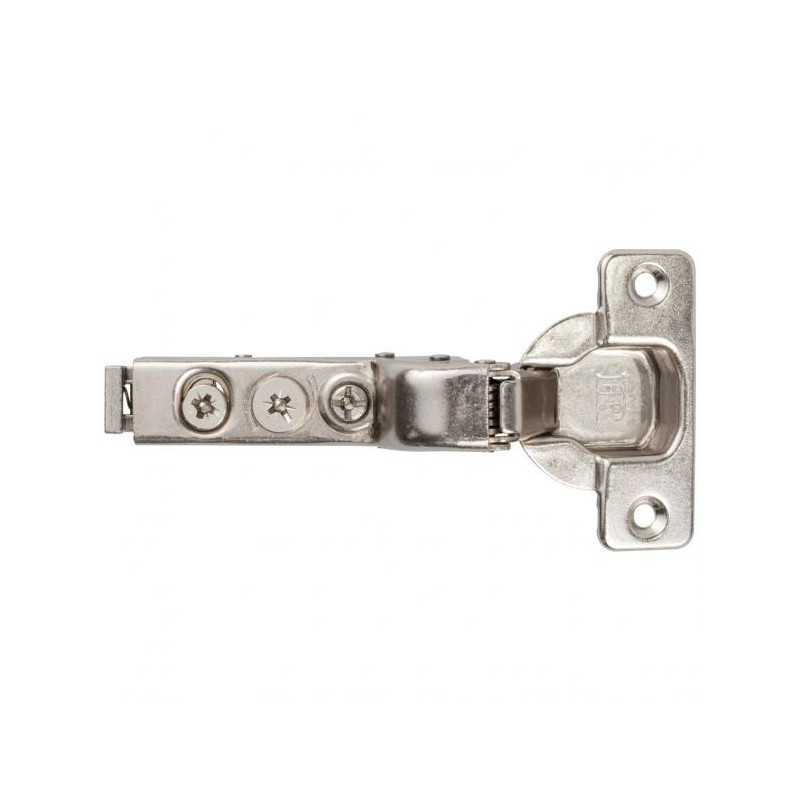

  6. Hardware Resources 1750 HR MAX Adjustable Heavy Duty Adjustable Soft-Close Hinge, 110 Deg.
Reduced price! Hardware Resources 1750.0 Adjustable Heavy Duty Adjustable Soft-close Hinge View larger

Hardware Resources

Previous Next

Hardware Resources 1750 HR MAX Adjustable Heavy Duty Adjustable Soft-Close Hinge, 110 Deg.

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$6.73

10% Off

$7.48

Details: Hardware Resources 1750 HR MAX Adjustable Heavy Duty Adjustable Soft-Close Hinge, 110 Deg.

Features

  • HR Max = Quality backed by Lifetime warranty
  • Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door
  • Heavy duty spring and linkage system
  • Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Hinge and plate provide 6-way adjustability
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern
  • 2-stop action
  • Compatible with 600 Series Plates

Specifications

Closing
Soft-close
Cycles
100,000+
Hinge Cup Bore Depth
11.2 mm
Arm Type
Half Cranked (1750.0536.25, 1750.0179.25), Full Cranked (1750.0537.25, 1750.0280.25)
Hinge Type
European
Mount Centers
45 mm
Cabinet Type
Faceframe or Frameless
Pivot Type
Dual
ADA Friendly
No
Packaging Type
Small Package
Degree of Opening
110 degree
Overlay
Half Overlay (1750.0536.25, 1750.0179.25), Inset (1750.0537.25, 1750.0280.25)
Hinge Crank Amount
9 mm (1750.0536.25, 1750.0179.25), 15 mm (1750.0537.25, 1750.0280.25)
Overlay Adjustment
+2 mm, -2 mm
Depth Adjustment
+3 mm, -2 mm
Adjustment Type
Cam
Brand
HR Max
Series
1750 Series
Finish
Polished Nickel
Overall Length
72 mm
Hinge Cup Diameter
35 mm
Material
Steel
Patent
US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2
Certification
ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012
Installation
No Dowels (1750.0536.25, 1750.0537.25), Press-in 8 mm Dowels (1750.0179.25, 1750.0280.25)
Mount Type
Screw (1750.0536.25, 1750.0537.25), Press-in (1750.0179.25, 1750.0280.25)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
