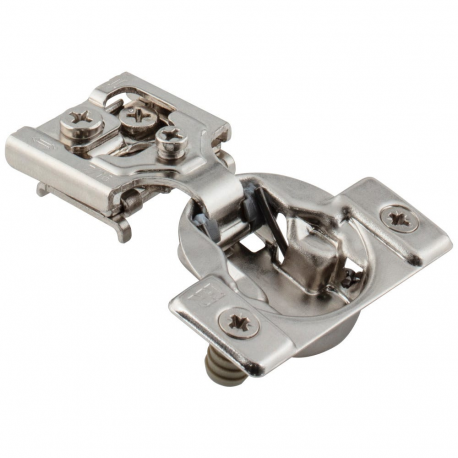

Hardware Resources 8390-716 HR MAX Self-Close Compact Hinge w/ Press-In 8 mm Dowel, 7/16" Overlay

Model: 8390-716

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 8390-716 HR MAX Self-Close Compact Hinge w/ Press-In 8 mm Dowel, 7/16" Overlay

Features

HR Max = Quality backed by Lifetime warranty
Streamlined glide channels reduce friction and wear
Use in conjuction with 9390 Series hinges on lighter doors
Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
For face frame applications
Single pivot point
No.7 × 5/8" pan washer head screw recommended for installation (item No. 7X0580WCQ)

Specifications

Closing: Self-close
Hinge Cup Bore Depth: 11.2 mm
Hinge Type: Compact
Mount Centers: 45 mm
Cabinet Type: Faceframe
Pivot Type: Single
ADA Friendly: No
Packaging Type: Small Package
Degree of Opening: 105 Degree
Overlay: 7/16"
Overlay Adjustment: +2 mm, -2 mm
Adjustment Type: Cam
Brand: HR Max
Series: 8390 Series
Finish: Nickel
Hinge Cup Diameter: 35 mm
Hinge Dowels: Press-in
Material: Steel
Certification: ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation: Screw
Mount Type: Press-in
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
