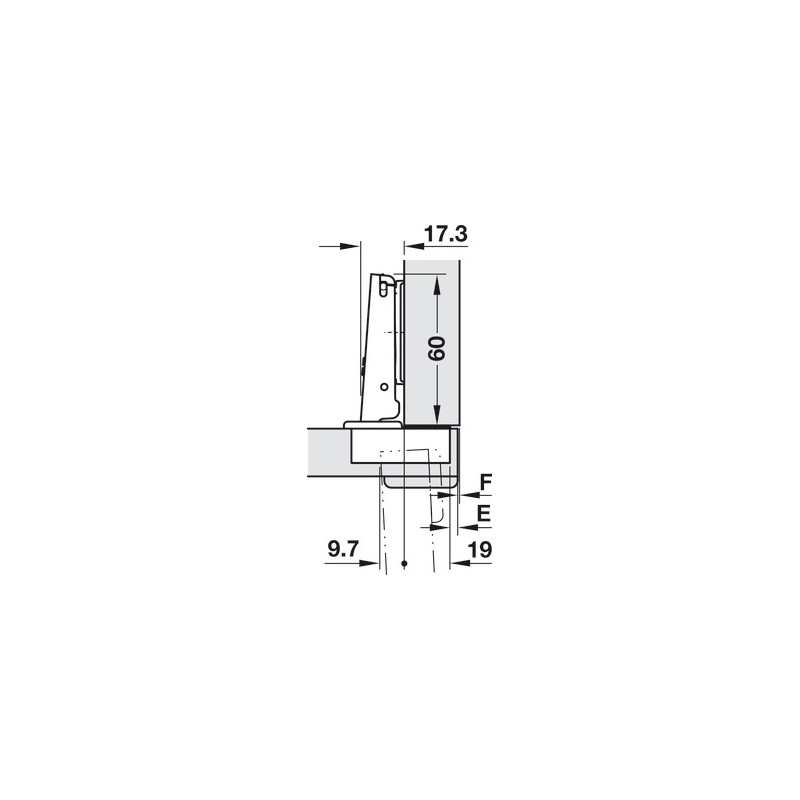

Hafele 329 Salice Hinge 94D Full Overlay

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 329 Salice Hinge 94D Full Overlay

Specifications

Version: Without spring
Concealed hinge version: full overlay
Crank type: Straight
For door material: wood
Door processing for assembly: with cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Color/finish: nickel plated
Opening angle: 94D
Cup drilling depth: 13 mm
Cup drilling: 40 mm
Drilling pattern: 52/7.5
Adjustment facility: Side adjustment -0.5-5.5 mm, Height adjustment +or- 2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM quick fixing mounting plates from -0.5 to +2.8 mm
Installation: Door on cabinet with slide-on system A or quick fixing system SM

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use
