INOX AX-SR1 RIM Exit Device Access Control Box

AX-B30-W-SR1-P13-D2-

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,830.40

20% Off

$2,288.00

Details: INOX AX-SR1 RIM Exit Device Access Control Box

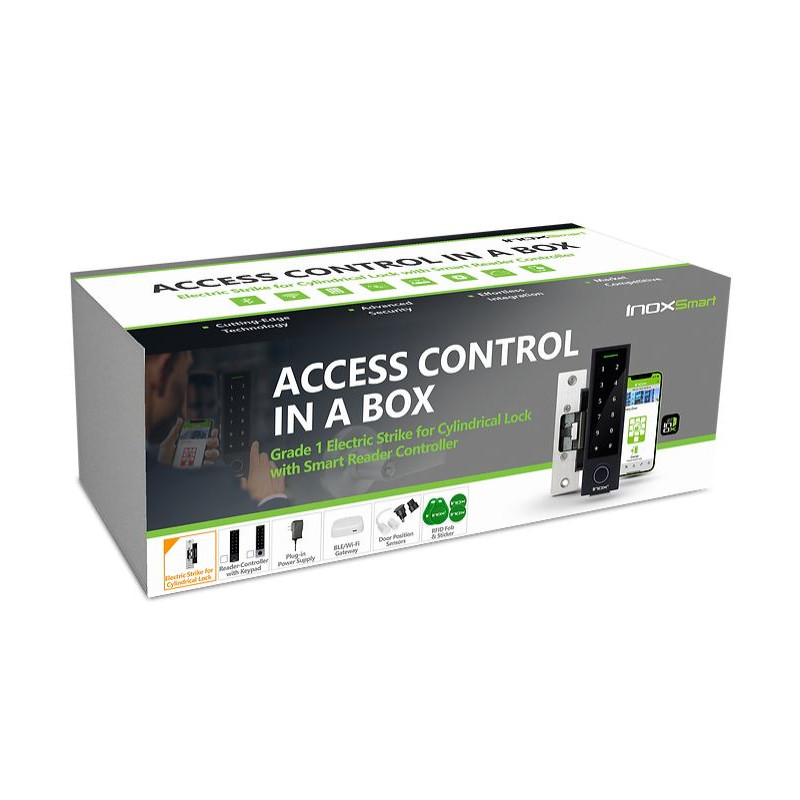

INOX ACBX "Access Control in a Box" is a comprehensive and innovative solution for Access Control and Access Management. It revolutionizes traditional access systems by seamlessly integrating a Grade 1 Electric Strike, a Smart Reader Controller Keypad, a WIFI gateway, door position sensors and a Plug-in Power Supply. This thoughtfully designed package empowers users to upgrade their existing door systems, enabling convenient electronic unlocking and locking, both remotely and on-site; reducing the risks associated with lost or stolen keys.

Features

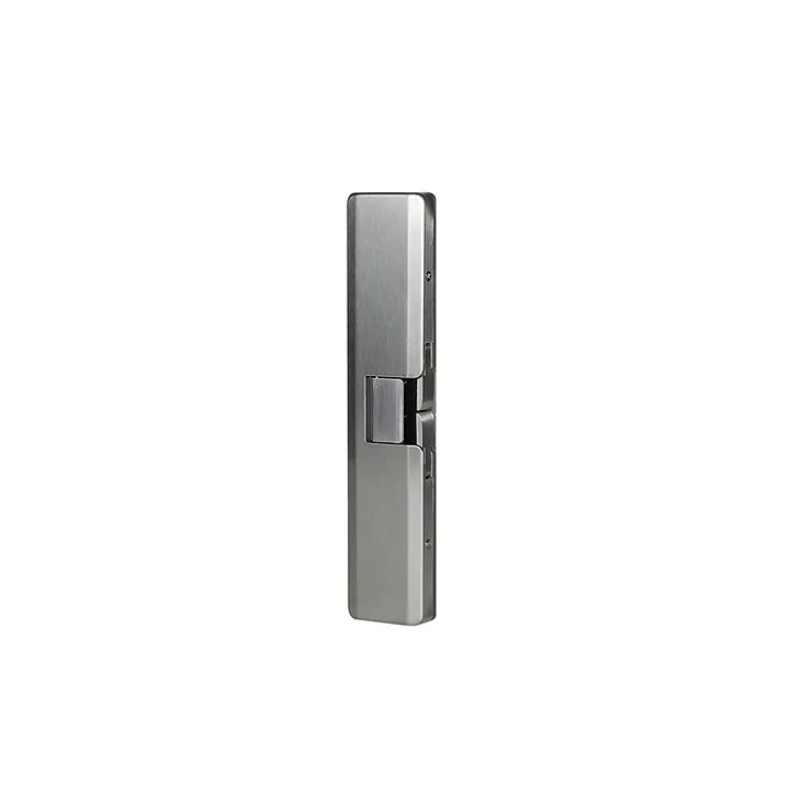

Electric Strike for RIM Exit Device

  • Voltage 12/24V AC/DC
  • Current draw 560mA at 12V DC / 280mA at 24V DC
  • 250K UL verified endurance cycle testing
  • 3HR fire rated: UL10C/CAN4-S104 (fail secure only)
  • Latch bolt monitor, SPDT 100mA @ 24V DC

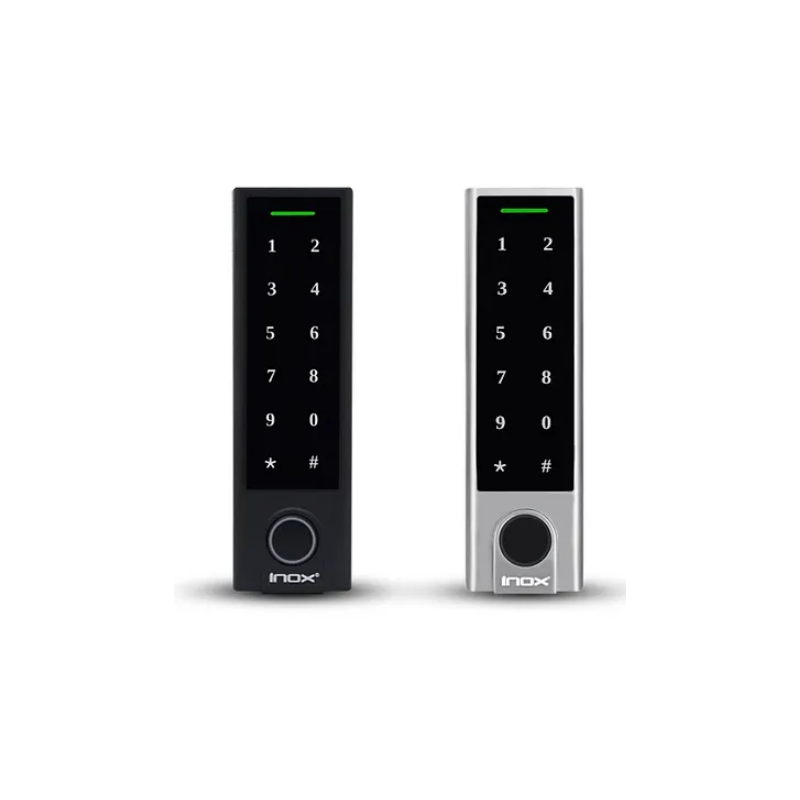

Reader, Controller with digital keypad

  • Voltage 12/24V AC/DC
  • Current draw 80mA at 12V and 40mA at 24V
  • Reading Range of 3/4" to 2-1/4"
  • Pin length; 4 ~ 8 digits

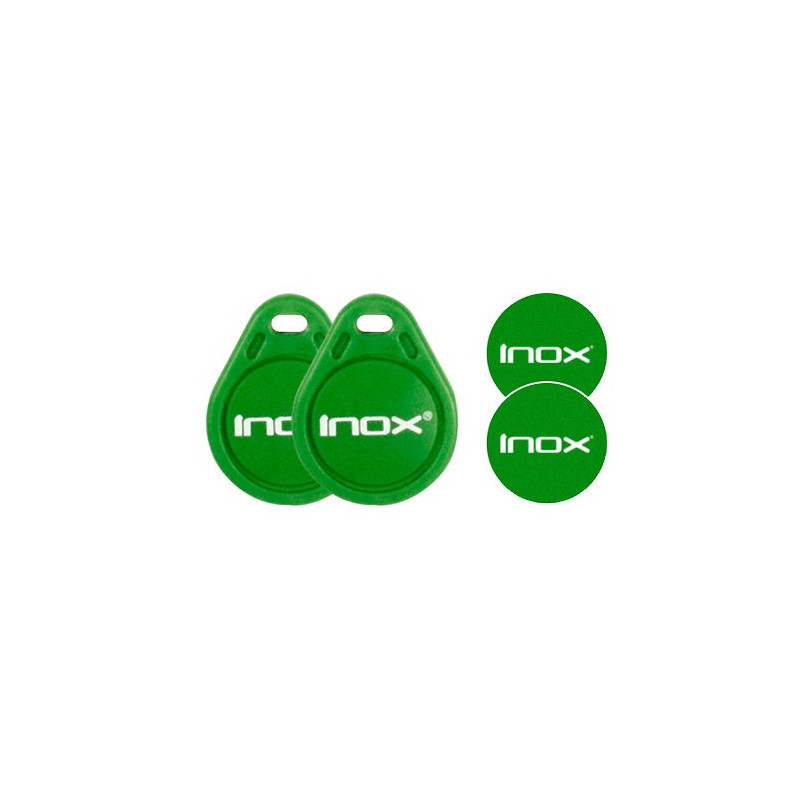

  • RFID Mifare 13.56MHz

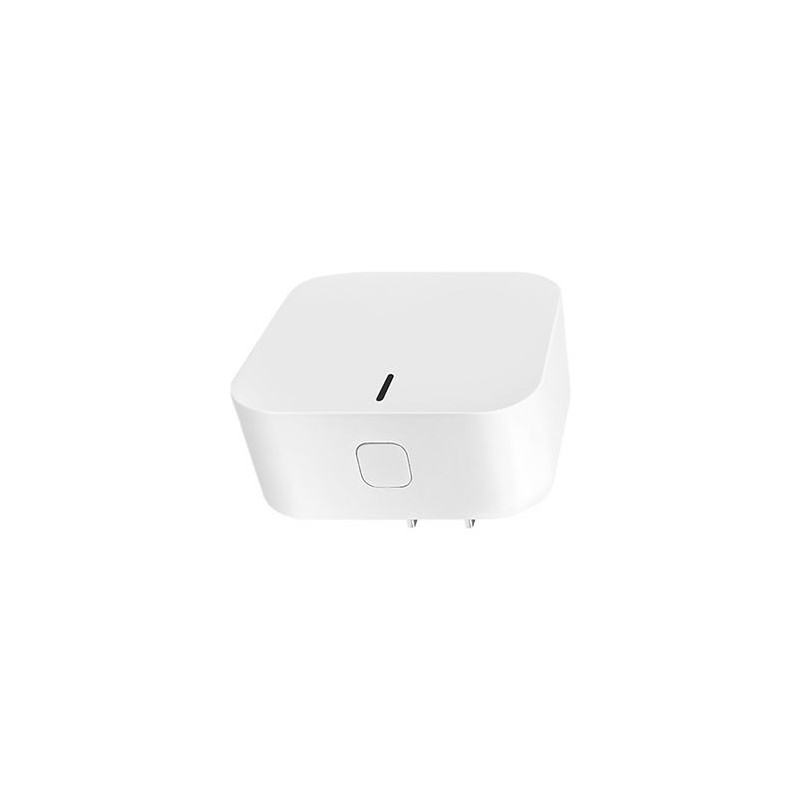

Plug-in Gateway

  • Plug-in 110V Outlet
  • Supports up to 128 devices simultaneously
  • Range: Clear line of sight at 55'; through two walls is 20'

Door Position Sensor (DPS) for metal doors and frames

  • Voltage 100V AC/DC
  • Current draw 0.5mA
  • Reading Range of 1" to 1-3/8"

Door Position Sensor (DPS) for wood doors and frames

  • Voltage 100V AC/DC
  • Current draw 0.5mA
  • Reading Range of 1/2" to 1"

Plug-in power with 3 Molex connectors

  • Plug into any standard 110V outlet
  • Comes standard with 3 Molex connectors
  • DC Power Cord is 6.5 feet
  • Power up to 1 AMP

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Resources

Data Sheet
