  5. INOX ED93F-CVRM3684 Grade 1 Heavy Duty, Concealed Vertical Rod For Metal Door, Fire Rated, Satin Stainless Steel

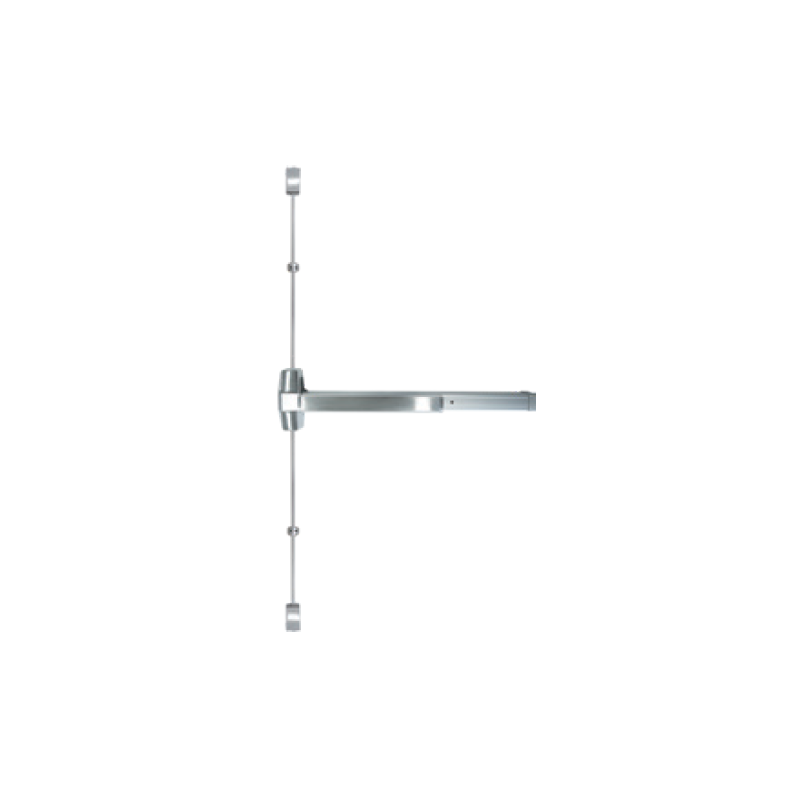

Reduced price! INOX ED93F Concealed Vertical Rod For Metal Door, 36" x 84",Fire Rated, Finish-Satin Stainless Steel View larger

Inox Unison

INOX ED93F-CVRM3684 Grade 1 Heavy Duty, Concealed Vertical Rod For Metal Door, Fire Rated, Satin Stainless Steel

ED93F-CVRM3684-

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,766.40

20% Off

$2,208.00

?

Details: INOX ED93F-CVRM3684 Grade 1 Heavy Duty, Concealed Vertical Rod For Metal Door, Fire Rated, Satin Stainless Steel

ANSI/BHMA 156.5 Grade 1 Heavy Duty Concealed Vertical Rod Exit Device For Metal Door

Features

  • INOX ED93F-CVRM concealed vertical rod exit devices are suited for most single and double hollow metal door applications
  • UL listed for Fire Exit Hardware and meets ANSI A156.3 Grade 1 standards
  • Non-handed with a universal design that allows it to easily retro?t the Von Duprin 99 series installation when paired with our INOX exit device trim
  • Fits all doors from 36" - 48" in width, 84" - 96" in height, and 1-3/4" in thickness. 36" × 96" and 48" × 84" are available as special order items

Specifications

Device Lengths
3' - 2'2" to 3' (660mm to 914mm) door size, 4' - 2'9" to 4' (838mm to 1219mm) door size
Strikes
Top Dull Black Strike (EDLSR-260), Bottom Dull Black Strike (EDLSR-265)
Dogging Options
Dogging not available on this device
Electric Options
Alarm Kit 36" and 48" available; 1. QLR - Motor Driven Retraction, 2. REX - Request-to-Exit Switch, 3. LBM - Latchbolt Monitor Switch
Miscellaneous Options
GBK Glass Bead Kit, PA Panic Armor
Fasteners & Sex Bolts
Furnished with wood & machine screws
Latch Bolt
Stainless Steel 3/4" (19mm) throw
Device Centerline From Finished Floor
41" (1041mm)
Center Case Dimensions
8-3/32" x 2-13/16" x 2-15/32" (206mm x 71mm x 63mm)
Mechanism Case Dimensions
2-3/16" w x 1-15/16" (55.4mm x 49.1mm)
Standard Panic
3-15/16" x 2-1/8" x 1-3/8" (100mm x 54mm x 35mm)
Fire Rated
3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 52mm)
Vertical Rods
36" Door - Top Rod - 43-1/4" (1099mm), Bottom Rod - 37-3/4" (959mm); 48" Door - Top Rod - 56-1/16" (1424mm), Bottom Rod - 37-3/4" (959mm)
Projections
Pushbar Neutral 3-3/4" (95.3mm), Pushbar Depressed 2-15/16" (74.5mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
