Reduced price! INOX FH17 8000 Series Bezel Flush Pull w/ TT09 Thumbturn

View larger

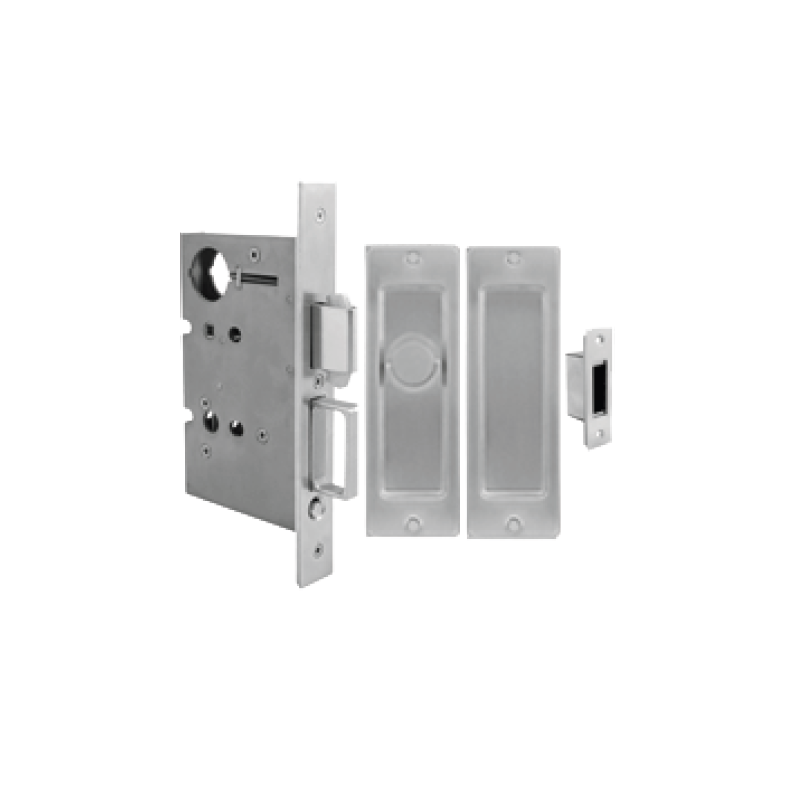

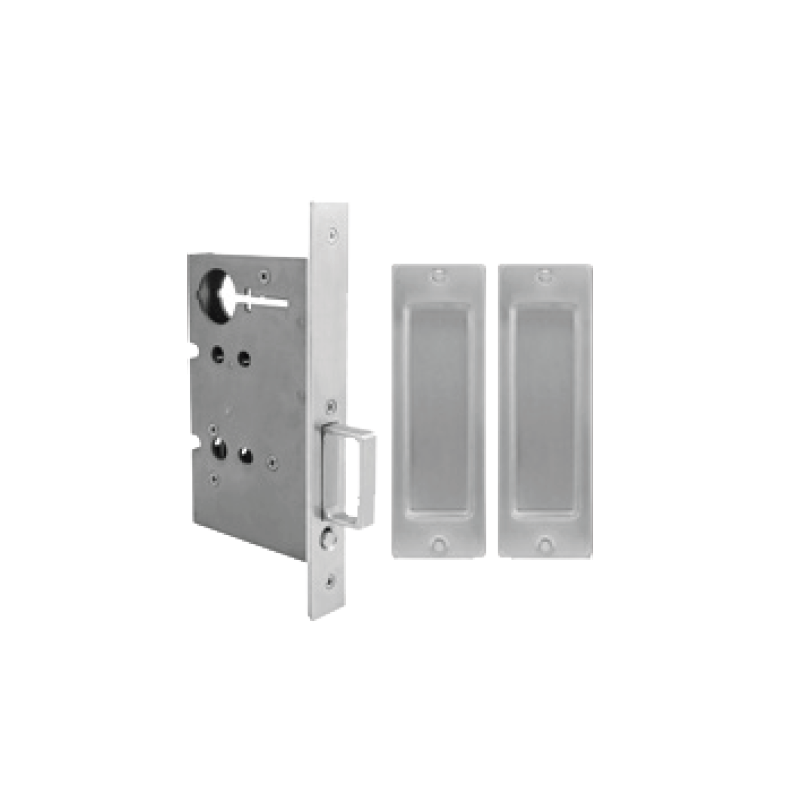

INOX PD8000 Interior Mortise Lockset w/ FH17 Bezel Flush Pull for Pocket Door

Model: FH17

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: INOX PD8000 Interior Mortise Lockset w/ FH17 Bezel Flush Pull for Pocket Door

Mortise Lockset The INOX PD8000 Series takes sliding door locks to a level never before achieved in the industry. In addition to a variety of options and functions, beautifully designed and crafted materials, and nine stock finishes to accent and complement any decor, INOX has introduced a series of patented improvements to mortise door locks, as well as stunning options for thin doors in our Slim Trim and Concealed Fixing trim.

Flush Pull All INOX Sliding & Pocket Door Flush Pulls are available in beautiful CeraMax Ceramic Coating finishes, including Graphite Black (C19G), Flat Black (C19), Dark Bronze (CDB), and Stormy Grey (CGY), and with our powerful and effective MicroArmor Antimicrobial Coating.

Specifications

Finish: PVD Satin Brass,Oil Rubbed Bronze,Graphite Black,Satin Stainless Steel,Bright Stainless Steel,Stromy Grey,Ceramax Dark Bronze,Ceramax Graphite Black,
Lever: Cologne,Munich,Frankfurt,Aurora,Sunrise,Twilight,Plaza,Cafe,Hampton,Empire,Tokyo,Osaka
Function: Passage,Passage Inactive,Privacy,Entry,Patio
Backset: 2 3/4",2 1/2",2"
Door Thickness, Standard Trim: 1-3/4" (45mm)
Thick door kits available
Backset: 2-3/4" (70mm), 2-1/2" (64.5mm), 2" (51mm)
Lock Case: 3-21/32" x 6" x 11/16" (93mm x 152mm x 17mm)
Deadbolt: 1" (25.4mm)
Bolt Projection: 5/8" (15.5mm)
Bolt Case Size: 3-1/4" x 3-5/8" x 1"
Thumbturn Spindle: 5 x 5mm square
Handing: Non-handed
Cylinder: Schlage C keyway, 5 pin mortise cylinder with 2 keys; specialty keying services available
Bezel Flush Pull: Standard Door Thickness
Thick Door Kits available
Handing: Non-Handed
Thumbturn Spindle: 5x5mm square
Deadbolt: 1" (25.4mm)
Cylinder: Schlage C keyway 5 pin mortise cylinder with 2
keys (KD). Keying services available; order separately
For Residential or Commercial application
Stainless Steel/Brass Material

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

PD8000 PD8000

Inox Unison Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
FH17 PD8460B10B	2", Patio, Oil Rubbed Bronze
FH17 PD8010PVD4	Passage,
FH17 PD8115BC19G	2",
FH17 PD845032D	Entry, Satin Stainless Steel
FH17 PD8460B19G	2", Patio, Graphite Black
FH17 PD801010B	Passage, Oil Rubbed Bronze
FH17 PD811519G	Graphite Black,
FH17 PD801019G	Passage, Graphite Black
FH17 PD8460B32D	2", Patio, Satin Stainless Steel
FH17 PD845032	Bright Stainless Steel, Entry
FH17 PD8440PVD4	Privacy,
FH17 PD801032D	Passage, Satin Stainless Steel
FH17 PD8460B32	Bright Stainless Steel, 2", Patio
FH17 PD801032	Passage, Bright Stainless Steel,
FH17 PD8450CGY	Entry, Stormy Grey
