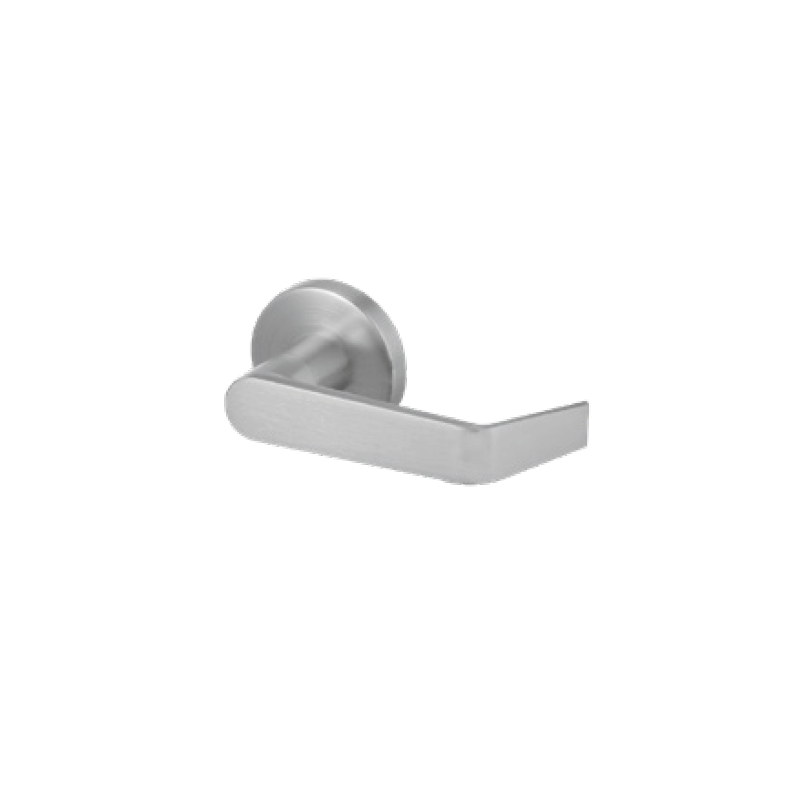

INOX MC7 Mortise Lockset with RS Rose, Satin Chrome

$366.40

20% Off

$458.00

Details: INOX MC7 Mortise Lockset with RS Rose, Satin Chrome

Heavy Duty, Grade 1 fire-rated locks that will provide security, and long-life operational functionality for your toughest projects

Features

  • Engineered to exceed 1 million cycles testing for high traffic applications
  • Built with heavy-duty stainless steel components and lock body
  • Auxiliary latch provides extra security by deadlocking when door is closed
  • Emergency egress in case of crisis
  • UL listed for 3 hour fire doors

Specifications

Standard Door Thickness
1-3/4" (44.5mm)
Thick Door Kits available
Backset
2-3/4" (70mm)
Bolt
1" (25.4mm)
Latchbolt
3/4" (19mm) throw with anti-friction
Lever Spindle
8x8mm square
Thumbturn Spindle
5x5mm square
Case Size
4" x 6-1/16" x 15/16"
(102mm x 154mm x 24mm)
Lever to Cylinder Center to Center
3-7/8" (98mm)
Lever to Thumbturn Center to Center
2-11/16" (68mm)
Handing
Specify handing
Lockcase
Field reversible without disassembly
Cylinder
Schlage C keyway 6 pin mortise with 2 keys
Optional keyways, keying services, and IC cores available

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
