Reduced price! INOX RA 106 Copenhagen Rose 2-1/2" (63mm) Diameter Interior Tubular Locksets

View larger

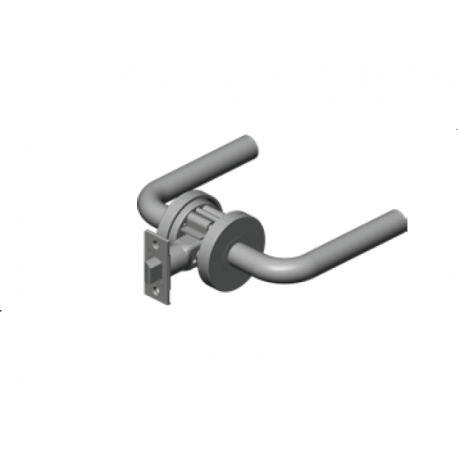

INOX RA 106 Copenhagen Interior Lockset With 2-1/2" Diameter Rose

Model: RA106L472 10B

edit options

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: INOX RA 106 Copenhagen Interior Lockset With 2-1/2" Diameter Rose

TL4:Our TL4 Latch is commercial grade with a 28 degree latch retraction to meet ADA requirements; pair with designer INOX trim for your most beautiful options. Also available with a 3-hour fire-rated latch.

TL7:A powerful magnetic latch that eliminates the need for lip strikes and door frame lip cut-outs. TL7 is applicable with all INOX decorative lever, knob, and escutcheon designs

Features

TL4:INOX TL4 series interior latch sets consist of beautifully designed trim made of stainless steel or forged brass, a spring-assisted interlocking chassis, and a commercial grade tubular latch, making it the perfect choice for high-end residential, mixed use, and hotel or other hospitality openings.
A 28 degree short retraction latch design makes for easier operation, and hardened steel hubs inside the latch prevent lever sag for extended life of the set
Meets ANSI/BHMA Grade 2 Standards. All lever sets meet ANSI A117.1 Accessibility (ADA Compliant). UL10B/UL10C fire rated TL4 latch available.
TL7:A new aesthetic option for homeowners or designers who want to eliminate unsightly or scratched, marred lip strikes, the TL7 is a perfect choice for frameless and flush-to-wall doors.
The TL7 magnetic latch is part of the interior leverset and available in both 2-3/8" (60mm) and 2-3/4" (70mm) backset.
For passage, privacy, or half passage functions, TL7 latch, bolt, and strike incorporate neodymium rare earth magnets, the most powerful magnet available for commercial use .
No special modifications required to use TL7 tubular magnetic latch with any INOX lever, knob, or escutcheon design.
Meets ANSI A117.1 Accessibility (ADA Compliant).

Specifications

Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
Latch Backset: 2-3/8" (60mm) or 2-3/4" (70mm)
Handing: Field reversible for Passage or Privacy functions; specify for Half Passage or Passage with Privacy Bolt
Latch Faceplate: 1" × 2-1/4" standard square corner
Lever Spindle: 8 × 8mm square
Lever Retraction: 28 degree

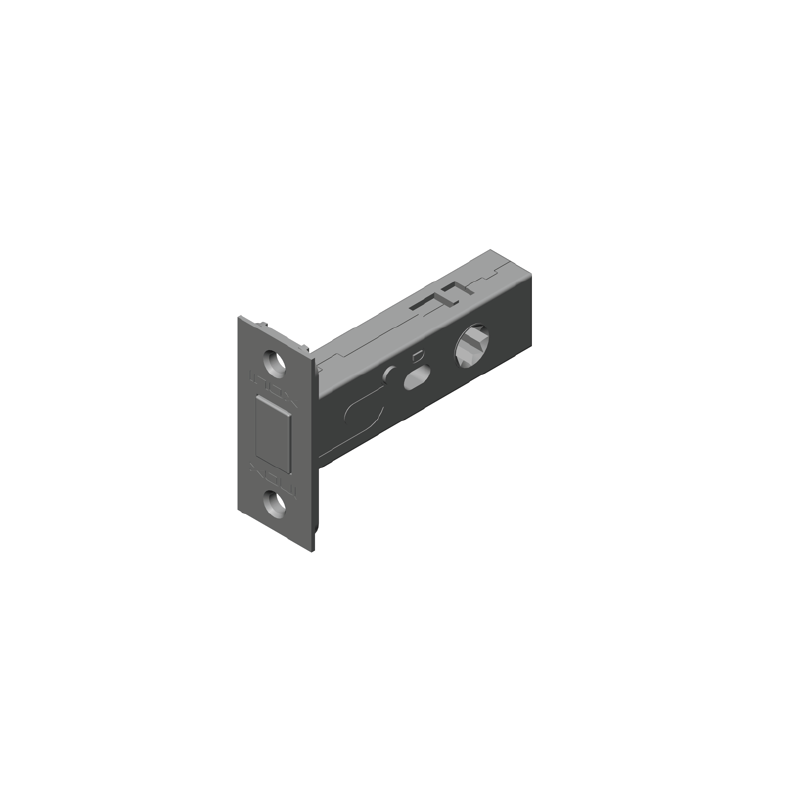

Standard Latch: TL4 Tubular Latch
Standard Strike: Ships with both full-lip strike and T-strike with square corners
Edge Bore(TL7 Magnetic): 1" Edge Bore, Latch face 2-1/4" × 1" square

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Data Sheet(TL4 Grade2)

Inox Unison Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
RA106L475 R 10B
RA106L472 32
RA106L461 C19
RA106DR CGY
RA106L475 L 10B
RA106L475 R CGY
RA106L472 10B
RA106L471 32D
RA106DR CDB
RA106L475 L CGY
RA106L472 CGY
RA106L475 R CDB
RA106L471 32
RA106L475 L CDB
RA106DR C19G
