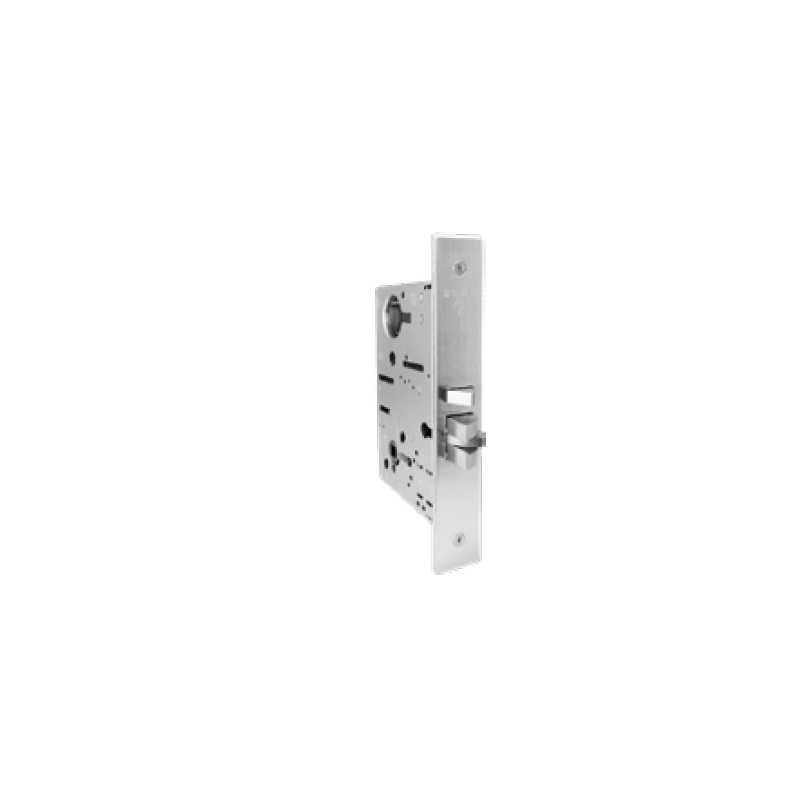

INOX XRA Round Rose, 2 1/2 Diameter Mortise Lockset By Roses, 2 3/4-Backset

XRA

$430.08

20% Off

$537.60

?

Details: INOX XRA Round Rose, 2 1/2 Diameter Mortise Lockset By Roses, 2 3/4-Backset

Heavy Duty, Grade 1 fire-rated locks that will provide security, and long-life operational functionality for your toughest projects

Features

  • Engineered to exceed 1 million cycles testing for high traffic applications
  • Built with heavy-duty stainless steel components and lock body
  • Auxiliary latch provides extra security by deadlocking when door is closed
  • Emergency egress in case of crisis
  • UL listed for 3 hour fire doors

Specifications

Standard Door Thickness
1-3/4" (44.5mm)
Thick Door Kits available
Backset
2-3/4" (70mm)
Bolt
1" (25.4mm)
Latchbolt
3/4" (19mm) throw with anti-friction
Lever Spindle
8x8mm square
Thumbturn Spindle
5x5mm square
Case Size
4" × 6-1/16" × 15/16" (102mm × 154mm × 24mm)
Lever to Cylinder Center to Center
3-7/8" (98mm)
Lever to Thumbturn Center to Center
2-11/16" (68mm)
Handing
Specify handing
Lockcase
Field reversible without disassembly
Cylinder
Schlage C keyway 6 pin mortise with 2 keys
Optional keyways, keying services, and IC cores
Available

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

>

Available Model Numbers and Combinations

Model/SKUAttributes
XRA244MC7470 C19RH Classroom, Flat Black, Twilight, Dummy Trim, Right Hand
XRA244MDP70 PVD4RH Classroom, PVD Satin Brass, Twilight, with Deadbolt, Right Hand
XRA276MC7038 PVD4RH PVD Satin Brass, Entrance w/o Toggle, Plaza, No Deadbolt, Right Hand
XRA276MC7453 PVD4RHR PVD Satin Brass, Entrance with Toggle No Deadbolt, Plaza, Dummy Trim, Right Hand Reserve
XRA318MC7010 CDBLH Passage, Ceramax Dark Bronze, Cafe, No Deadbolt, Left Hand
XRA318MC7050 32RH Bright Stainless Steel, Office And Inner Entry, Cafe, No Deadbolt, Right Hand
XRA318MDP38 C19GRH Ceramax Graphite Black, Entrance w/o Toggle, Cafe, with Deadbolt, Right Hand
XRA318MDPMDP C19GLHR Ceramax Graphite Black, Dummy Pair without Lockcase, Cafe, with Deadbolt, Left Hand Reserve
XRA319MC7070 32DRH Classroom, Satin Stainless Steel, Hampton, No Deadbolt, Right Hand
XRA319MC7480 CGYLHR Storeroom, Stromy Grey, Hampton, Dummy Trim, Left Hand Reserve
XRA319MC7470 CDBRH Classroom, Ceramax Dark Bronze, Hampton, Dummy Trim, Right Hand
XRA319MC7453 CDBLHR Ceramax Dark Bronze, Entrance with Toggle No Deadbolt, Hampton, Dummy Trim, Left Hand Reserve
XRA320MC7040 C19RH Privacy, Flat Black, Empire, No Deadbolt, Right Hand
XRA320MC7050 32DRH Satin Stainless Steel, Office And Inner Entry, Empire, No Deadbolt, Right Hand
XRA320MC7440 PVD4LHR Privacy, PVD Satin Brass, Empire, Dummy Trim, Left Hand Reserve
