> >>Johnson Hardware 170W 1700 Series Bi-Fold Door Hardware Set, 2-Panel, White Steel Track
Johnson Hardware 170W 1700 Series Bi-Fold Door Hardware Set, 2-Panel, White Steel Track View larger

Johnson Hardware

Johnson Hardware 170W 1700 Series Bi-Fold Door Hardware Set, 2-Panel, White Steel Track

170W

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$21.99

Details: Johnson Hardware 170W 1700 Series Bi-Fold Door Hardware Set, 2-Panel, White Steel Track

Smooth operating, non-binding top hung bi-fold hardware designed for use with solid core wood door panels. Available with either painted steel or extruded aluminum tracks. Surface mounted pivots and guides (no hole drilling). Four way adjustable bottom pivot bracket, shock absorbing hinges self locate and automatically align doors.

Features

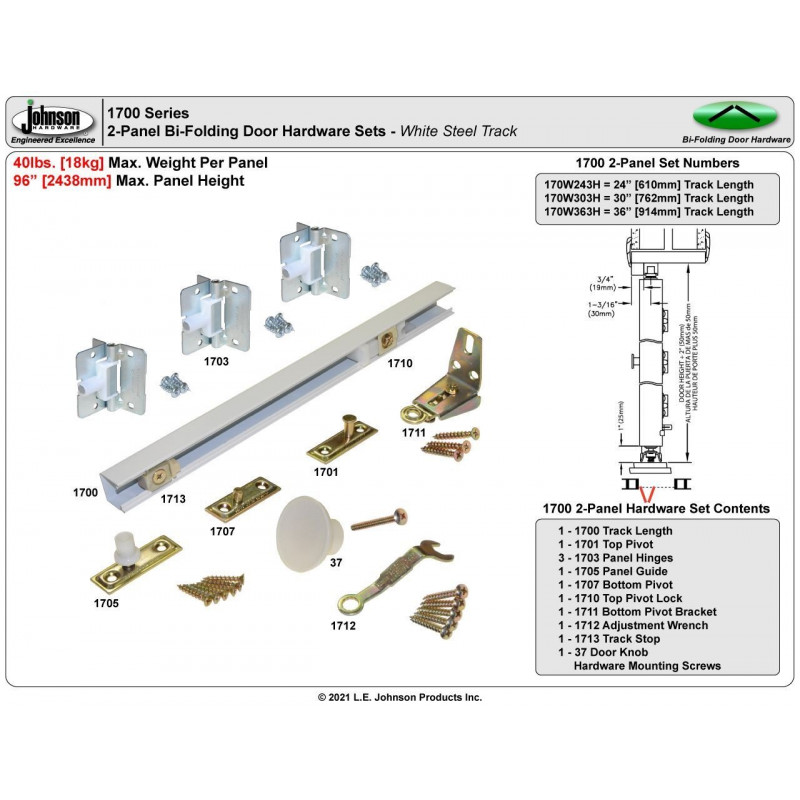

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
  • Track available in mill finished aluminum or brown or white rolled steel.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700 configurations possible by ordering 1700 components by the piece.

Specifications

Track Length
30" (762mm)
Track Type
White Rolled Steel
Max Panel Width
15" (381mm) × 2
Max Panel Thickness
1-3/8" (35mm)
Max Panel Weight
40lbs (18kg) Each
Hardware Sets
2-Panel
Max. Panel Width
15" × 2 (1' - 3" × 2) (381mm × 2)
Track Length
30" (2' - 6") (762mm)
Panels
2-Panels
Track Finish
White
Hanger Type
Top Mount
Steel Component Finish
Zinc Trivalent Plated
Steel Components
12-14 Gauge
Application
Interior Residential
Country of Origin
U.S.A

Applications

  • Residential & Light Commercial Applications
