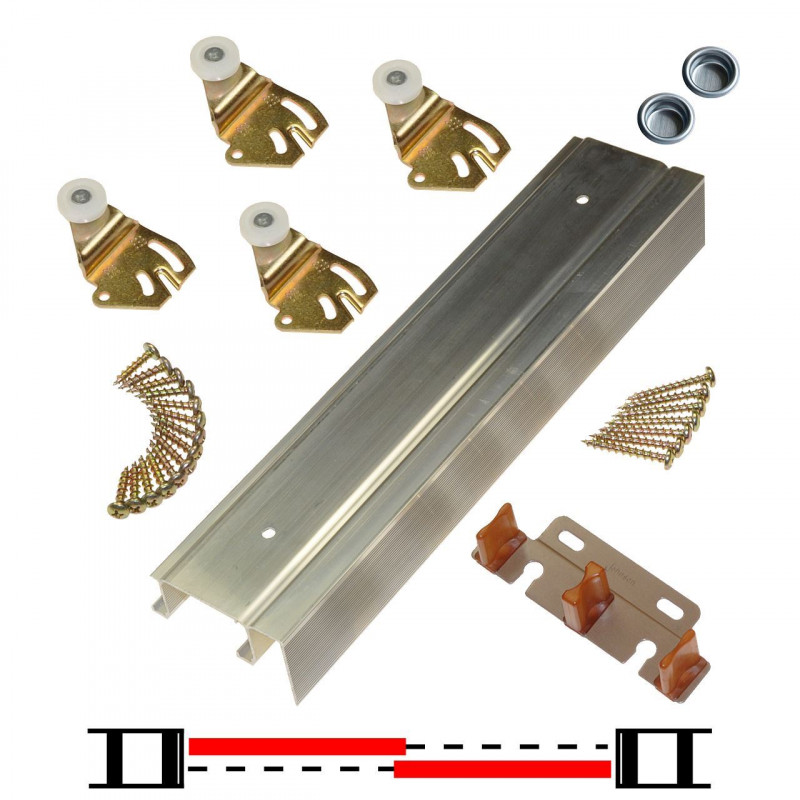

Johnson Hardware 2200F Series 2-Door Sliding Bypass Hardware Set, Single Wheel View larger

Johnson Hardware

Johnson Hardware 2200F Series 2-Door Sliding Bypass Hardware Set, Single Wheel

2200F

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$35.99

Details: Johnson Hardware 2200F Series 2-Door Sliding Bypass Hardware Set, Single Wheel

The 2200F is general purpose residential grade sliding by-pass door hardware for 1-3/8" (35mm) thick doors featuring a extruded aluminum track with integrated fascia. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. Hangers include one or two 7/8" (22mm) dia. molded nylon machine turned wheels with three point locking plates. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick door alignment.

Features

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for or 4 door sliding bypass installations.
  • The 2200F is compatible with 1-3/8" (35mm) thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2200F configurations possible by ordering 2200F components by the piece.

Specifications

Max. Weight Per Door
75lbs. (34kg) (W/Twin Wheel Hangers)
Hardware Sets
Single Wheel
Doors
2 - Doors
Max. Door Width
24" x 2 (2' - 0" x 2) (610mm x 2)
Track Length
48" (4' - 0") (1219mm)
Max. Weight Per Door
50lbs. (23kg)
Series Track
2200F
Track Finish
Mill Aluminum
Track Material
6063T6 Extruded Aluminum
Track Profile
Double Leg J-Track
Hanger Type
Side Mount
Wheel Dia.
7/8"
Wheel Type
Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish
Zinc Trivalent Plated
Steel Components
12-14 Gauge
Application
Interior Residential
Country of Origin
U.S.A.

Applications

  • Residential & Light Commercial Applications
