  6. Kaba E-Plex E5786 Series Double Sided lock w/ 125kHz Prox Reader, Entry/Egress 3,000 Users, 30,000 Audit Events

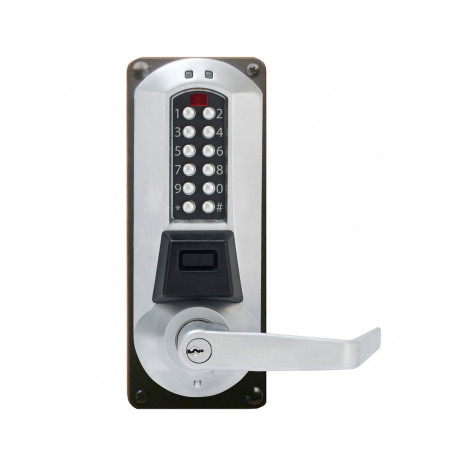

Reduced price! Kaba E-Plex E5786 Series Double Sided lock w/ 125kHz Prox Reader, Entry/Egress 3,000 Users, 30,000 Audit Events View larger

Kaba

Kaba E-Plex E5786 Series Double Sided lock w/ 125kHz Prox Reader, Entry/Egress 3,000 Users, 30,000 Audit Events

E5786

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3,103.29

40% Off

$5,172.14

Details: Kaba E-Plex E5786 Series Double Sided lock w/ 125kHz Prox Reader, Entry/Egress 3,000 Users, 30,000 Audit Events

The E-Plex 5x86 Electronic pushbutton/card lock provides combination access control for both interior and exterior sides of door, eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Provides exterior access control for multiple users using specific Cards (PROX—E-Plex 5786)

Features

Locking Device
ASM, American Standard Mortise with 1 1⁄4" (32 mm) face plate; without deadbolt
Number of Users
3,000 Access Users; (300 using LearnLok™ feature)
Audit Capability
Locks are programmed via keypad with or via optional E-Plex Enterprise Software (not included)
Key Override
Key-in-lever cylinders, small format interchangeable cores, large format removable cores
Scheduling
5786 Access Schedules—Up to 16 different access schedules may be programmed into reader
Holiday/Vacation—Up to 32 different holiday/vacation blocks may be programmed into reader
Operation Modes
Single credential—access and egress
Authority Levels
Five different levels allow who has access to specific lock functions, includes: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 96 hours
User Parameters
Code length—Adjustable to accept 4 to 8 digits
Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Re-lock time—Adjustable from 2 to 20 seconds

Technical Data

  • Construction: Extra heavy-duty, mortise lockset, solid cast housings, solid cast levers, wear tested for extensive use in indoor and outdoor applications
  • Door Handing: Non-handed, easily changed in the field
  • Backset: 2 3⁄4" (70 mm) backset
  • Latch: 3⁄4" (19 mm) latch
  • Minimum Stile Recommended: 5" (127 mm)
  • Key Override: Find a list of compatible key overrides in the
  • Door Preparation: Easily installs on wood or metal doors; four bolt installation; no wiring
  • Door Thickness: 1 3⁄4" (44 mm) to 2 1⁄4" (57 mm). Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 21/8" (54 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA)
  • Durability: ANSI/BHMA A156.13, Grade 1 Certification per F30 Asylum Function
  • Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors
  • Environmental: Indoor/Outdoor Approved: Interior/Exterior Housing: -31 ºF (-35 ºC) to + 151 ºF (66 ºC)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
