  5. Karcher Design UEL24 Corfu Tubular Entry Set w/ Escutcheon Plate, Lever/Lever

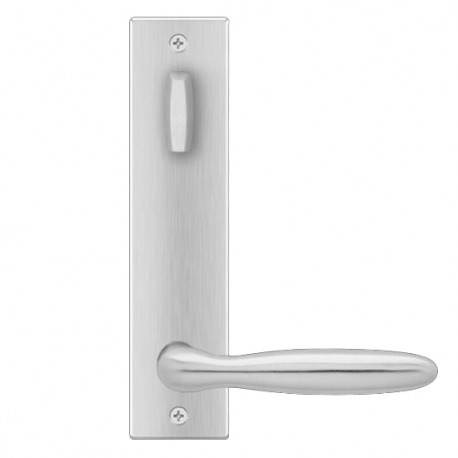

Reduced price! Karcher Design UEL24 Lever handle sets "Corfu" Tubular entry set - LEVER/LEVER (entry, 5 1/2" CTC) View larger

Karcher Design

Karcher Design UEL24 Corfu Tubular Entry Set w/ Escutcheon Plate, Lever/Lever

UEL24

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$186.84

10% Off

$207.60

The minimum purchase order quantity for the product is 3

?

Details: Karcher Design UEL24 Corfu Tubular Entry Set w/ Escutcheon Plate, Lever/Lever

Features

  • Suits on 2 1/8" (54mm) hole and center to center 5 1/2" (140mm)
  • Dimensions: 9 7/8" × 2 3/8" × 1/2" (250 × 60 × 12mm)
  • Standard door thickness 2 1/8" (55mm) and 2 9/16" (65mm)
  • Distance ring (UZ D2 71) required for 1 3/8" (35mm) to 1 3/4" (45mm)
  • Passage latch with standard Backset 2 3/8" (60mm)
  • Stainless steel T-strike plate with plastic dust cover
  • Stainless steel strike plate with plastic cover
  • Stainless steel latch face plate
  • Entrance version and Patio Version:- Dead bolt latch: adjustable with a backset of 2 3/8" (60 mm) and 2 3/4" - (70 mm)
  • Entrance version: Solid Brass Cylinder with 5 pins and C keyway

Specifications

Diameter of lever
13/16" (21 mm)
Dimensions
9 13/16 × 2 3/8 × 1/2" (250 × 60 × 12 mm)
Material
Stainless steel

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Tear Sheet

Available Model Numbers and Combinations

Model/SKUAttributes
UEL24-DUM-83 Full Dummy, Cosmos black, Not Included
UEL24-LA-8360 Cosmos black, Single cylinder entry set, 2-3/8"
UEL24-PB-8360 Cosmos black, 2-3/8"
UEL24-DUML-71 Satin Stainless Steel, Half dummy left, Not Included
UEL24-PAS-7160 Passage, Satin Stainless Steel, 2-3/8"
UEL24-LA-8370 Cosmos black, Single cylinder entry set, 2-3/4"
UEL24-PB-8370 Cosmos black, 2-3/4"
UEL24-DUML-83 Cosmos black, Half dummy left, Not Included
UEL24-PAS-7170 Passage, Satin Stainless Steel, 2-3/4"
UEL24-PAT-7160 Patio, Satin Stainless Steel, 2-3/8"
UEL24-DUMR-71 Satin Stainless Steel, Half dummy right, Not Included
UEL24-LA ID-7160 Satin Stainless Steel, 2-3/8"
UEL24-PAS-8360 Passage, Cosmos black, 2-3/8"
UEL24-PAT-7170 Patio, Satin Stainless Steel, 2-3/4"
UEL24-DUMR-83 Cosmos black, Half dummy right, Not Included

View All Model Numbers and Options
