Karcher Design UEPL45 Lever Sets "Madeira" For Pre-Bored Door(2 1/8")

Model: UEPL

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Karcher Design UEPL45 Lever Sets "Madeira" For Pre-Bored Door(2 1/8")

Features

Plan Design rose
Concealed bolt-through fixing
Door range min. 1-3/8" (34 mm) - max. 2" (50mm) standard
T- and full Lip-Strike included
Stainless steel faceplate
Backsets is 2-3/8" (60 mm)
Functions are Passage (PAS), Privacy (PRI),full dummy (DUM), dummy left (DUML), dummy right (DUMR)
Available with UL-Latch
28 degree latch with stainless steel faceplate
Stainless steel 304
Spindle 5/16" (8 mm)

Specifications

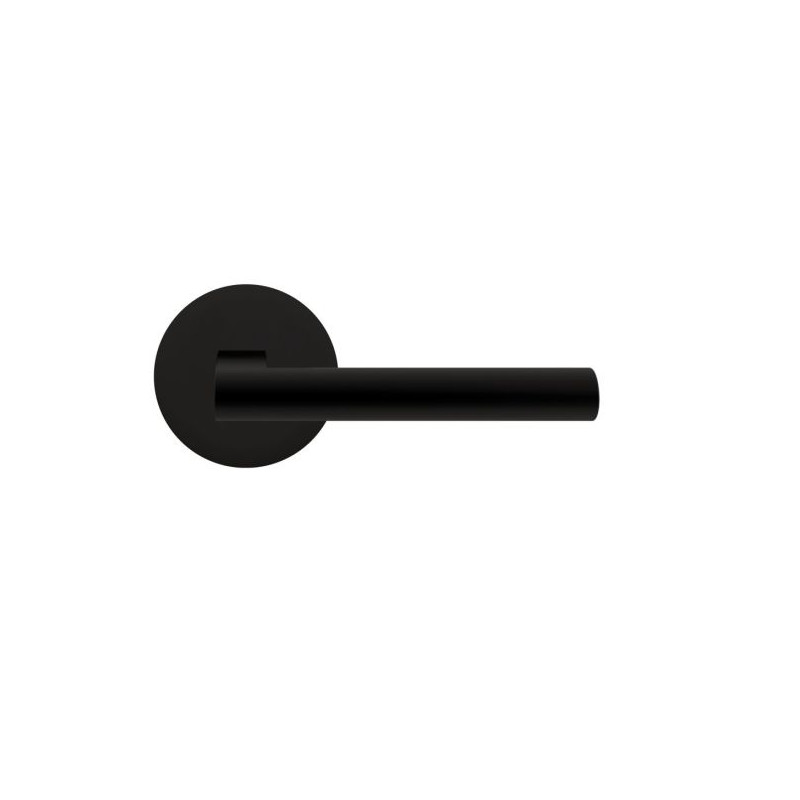

Color: Satin stainless steel, Polished stainless steel, Cosmos black

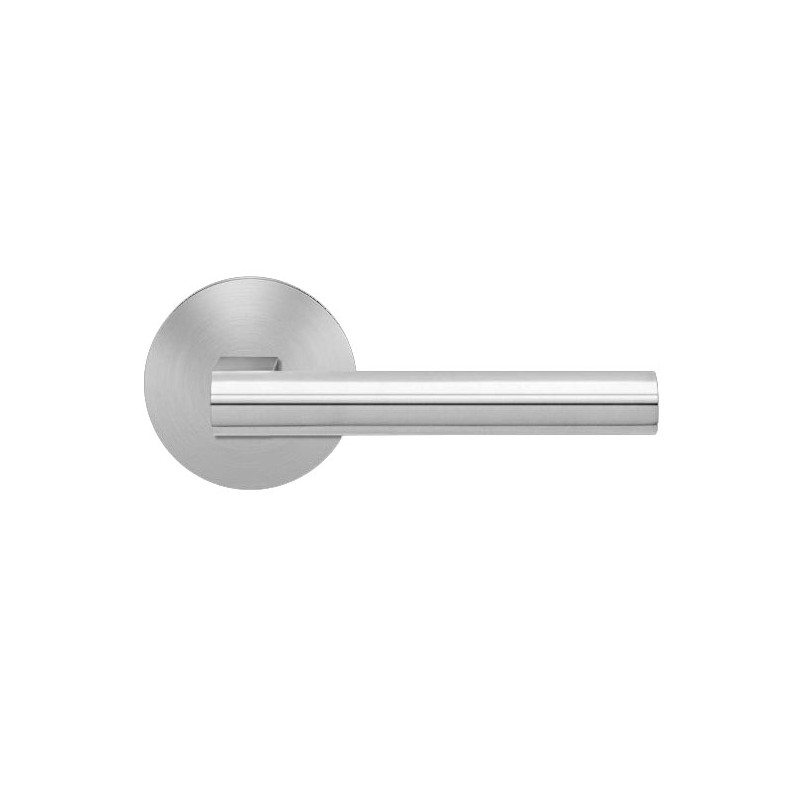

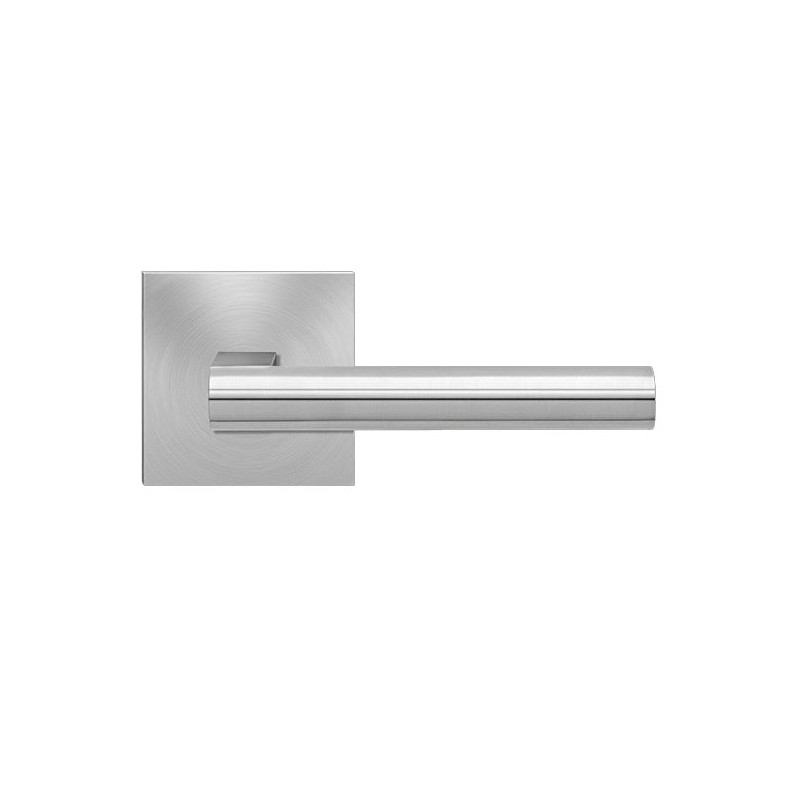

Rose type: Plan design round rose 2 9/16", Plan design square rose
Variations: PAS - Passage, PRI - Privacy, DUM - Full dummy set, DUML - Half dummy left, DUMR - Half dummy right
Diameter of lever: 3/4 x 1 " (19 x 26 mm)
Material: Stainless steel

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKU	Attributes
UEPLQ45-PRI-8360	Privacy, Cosmos black, Square, Plan design rose 2 9/16" x 2 9/16", 2-3/8"
UEPLQ45-PAS-7270	Passage, Polished Stainless Steel, Square, Plan design rose 2 9/16" x 2 9/16", 2-3/4"
UEPL45-DUM-72	Full Dummy, Polished Stainless Steel, Round, Plan design rose 2 9/16", Not Included
UEPL45-DUMR-83	Cosmos black, Half dummy right, Round, Plan design rose 2 9/16", Not Included
UEPL45-PRI-7160	Privacy, Satin Stainless Steel, Round, Plan design rose 2 9/16", 2-3/8"
UEPL45-PAS-7160	Passage, Satin Stainless Steel, Round, Plan design rose 2 9/16", 2-3/8"
UEPLQ45-PAS-8360	Passage, Cosmos black, Square, Plan design rose 2 9/16" x 2 9/16", 2-3/8"
UEPLQ45-DUMR-72	Polished Stainless Steel, Half dummy right, Square, Plan design rose 2 9/16" x 2 9/16", Not Included
UEPL45-DUM-83	Full Dummy, Cosmos black, Round, Plan design rose 2 9/16", Not Included
UEPL45-PRI-7170	Privacy, Satin Stainless Steel, Round, Plan design rose 2 9/16", 2-3/4"
UEPLQ45-PRI-8370	Privacy, Cosmos black, Square, Plan design rose 2 9/16" x 2 9/16", 2-3/4"
UEPL45-UL-71	Satin Stainless Steel, Round, Plan design rose 2 9/16", Passage for UL Fire Rated Door, Not Included
UEPLQ45-DUM-71	Full Dummy, Satin Stainless Steel, Square, Plan design rose 2 9/16" x 2 9/16", Not Included
UEPLQ45-DUMR-83	Cosmos black, Half dummy right, Square, Plan design rose 2 9/16" x 2 9/16", Not Included
UEPLQ45-PAS-8370	Passage, Cosmos black, Square, Plan design rose 2 9/16" x 2 9/16", 2-3/4"
