Reduced price! Karcher Design UER31 Lever sets "Tasmania" for pre-bored door(2 1/8")

View larger

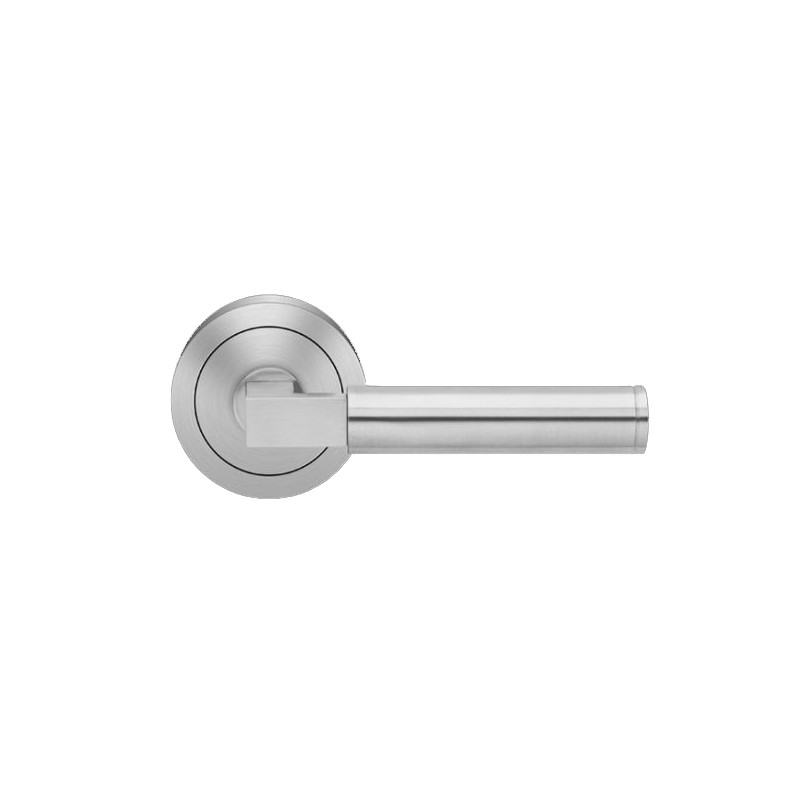

Karcher Design UER31 Lever Sets "Tasmania" For Pre-Bored Door(2 1/8")

Model: UER

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Karcher Design UER31 Lever Sets "Tasmania" For Pre-Bored Door(2 1/8")

Features

3 piece rose
Concealed bolt-through fixing
Door range 1 1/4" (31 mm) - 2" (50 mm) standard
T- and Lip-Strike with dust box
Stainless steel faceplate
Backsets is 2 3/8" (60 mm) or 2 3/4" (70 mm)
Functions are Passage (PAS), Privacy (PRI), full dummy (DUM), dummy left (DUML), dummy right (DUMR)
Available with UL-Latch
28 degree latch with stainless steel faceplate
Rate of satin stainless steel 304
Hub 5/16" (8 mm)
Door prep 2 1/8"

Specifications

Color: Satin stainless steel, Polished stainless steel, Cosmos black
Rose type: Round rose 2 5/8", Square rose 2 5/8" x 2 5/8", Plan design round rose 2 9/16"
Variations: PAS - passage, PRI - privacy, DUM - full dummy set, DUML - half dummy left, DUMR - half dummy right
Diameter of lever: 7/8 " (22 mm)
Material: Stainless steel

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKU	Attributes
UERQ31-PRI-7160	Privacy, Satin Stainless Steel, Square, 3-Piece Rose 2 5/8" x 2 5/8", 2-3/8"
UER31-PAS-8360	Passage, Cosmos black, Round, 3-Piece Rose 2 5/8", 2-3/8"
UER31-PRI-8370	Privacy, Cosmos black, Round, 3-Piece Rose 2 5/8", 2-3/4"
UER31-DUMR-71	Satin Stainless Steel, Half dummy right, Round, 3-Piece Rose 2 5/8", Not Included
UERQ31-PAS-7170	Passage, Satin Stainless Steel, Square, 3-Piece Rose 2 5/8" x 2 5/8", 2-3/4"
UERQ31-DUMR-71	Satin Stainless Steel, Half dummy right, Square, 3-Piece Rose 2 5/8" x 2 5/8", Not Included
UERQ31-DUM-71	Full Dummy, Satin Stainless Steel, Square, 3-Piece Rose 2 5/8" x 2 5/8", Not Included
UERQ31-PRI-7170	Privacy, Satin Stainless Steel, Square, 3-Piece Rose 2 5/8" x 2 5/8", 2-3/4"
UER31-PAS-8370	Passage, Cosmos black, Round, 3-Piece Rose 2 5/8", 2-3/4"
UERQ31-DUMR-72	Polished Stainless Steel, Half dummy right, Square, 3-Piece Rose 2 5/8" x 2 5/8", Not Included
UER31-DUM-71	Full Dummy, Satin Stainless Steel, Round, 3-Piece Rose 2 5/8", Not Included
UER31-DUMR-72	Polished Stainless Steel, Half dummy right, Round, 3-Piece Rose 2 5/8", Not Included
UERQ31-DUM-72	Full Dummy, Polished Stainless Steel, Square, 3-Piece Rose 2 5/8" x 2 5/8", Not Included
UER31-DUM-72	Full Dummy, Polished Stainless Steel, Round, 3-Piece Rose 2 5/8", Not Included
UER31-PRI-7160	Privacy, Satin Stainless Steel, Round, 3-Piece Rose 2 5/8", 2-3/8"
