Reduced price! LCN 4110T 4111T-BUMP-689-PCRHSRITORX Series Door Closer

View larger

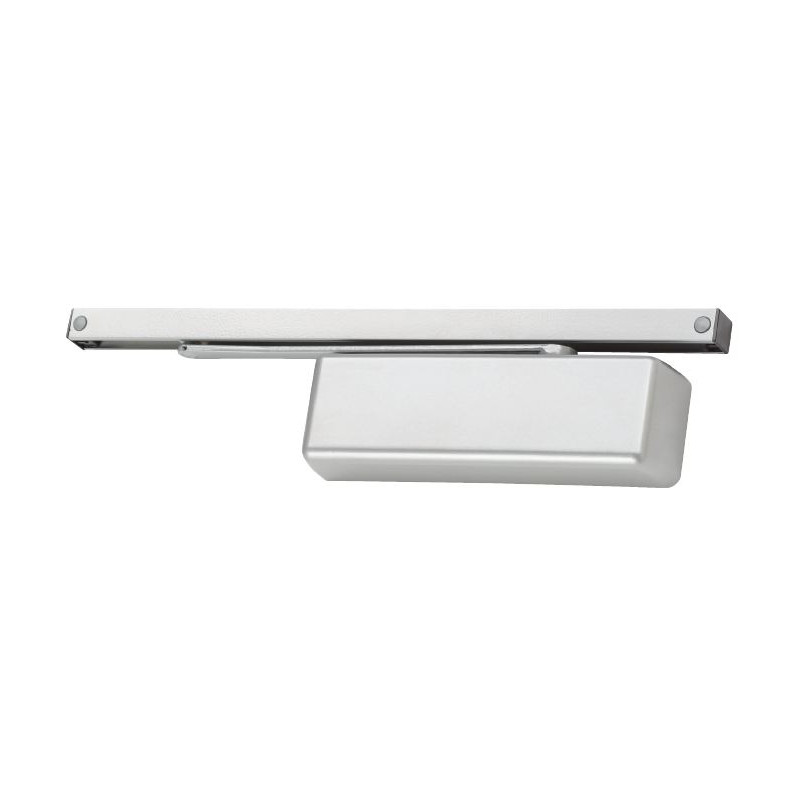

LCN 4110T 4111T-BUMP-689-PCRHSRITORX Series Door Closer

Model: 4111T-BUMP-689-PCRHSRITORX

Browse All Combinations

Finish: Aluminum
Cover: Plastic cover
Track: Track with Bumper
Interior Opening Width: Size 1 (26" - 34")
Handing: Right Handed
Primer: Included (Special Rust Inhibitor)
Screw Package: Torx Machine Screws

edit options

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$608.86

30% Off

$869.79

Quantity

Interior Opening Width

Track

Choose a Finish

Cover

Handing

Primer

Screw Package

Powder Coat

Details: LCN 4110T 4111T-BUMP-689-PCRHSRITORX Series Door Closer

Description

Lcn 4110 Series

The 4110T Smoothee® is LCN's best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Features

Ten Million Cycles
Cast Iron
Forged Steel Main Arm
Double Heat Treated Steel Pinion
All Weather Fluid
LCN® Fast™ Power Adjust
Fast & Accurate Installation
UL & cUL Listed

Specifications

Standard 4110T series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
Sized cylinders for interior doors to 5'0" and exterior doors to 4'0".
Non-sized cylinder (4011) adjustable for interior doors to 4'6" and exterior doors to 3'6".

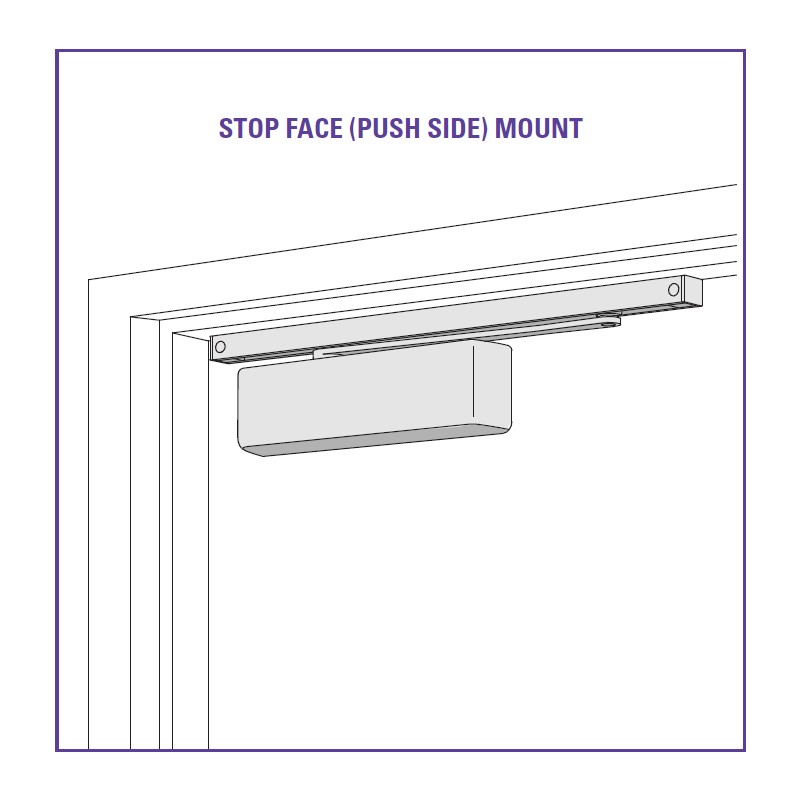

Closer mounts hinge side, specify right or left swinging door.
Corner brackets available. See Options tab for options.
4110T cylinder meets ADA requirements.
Standard or optional custom powder coat finish.
Optional plated finish on metal cover, arm and fasteners.
Optional SRI primer for installations in corrosive conditions is available with powder coat only.
The 4110T Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
Tested and certified under ANSI Standard A156.4, grade one.

Options:

Arms

Extra Duty Arm, 4110T-3077EDA, 4110-62G, 4110-145 Non-handed parallel arm features forged, solid steel main and forearm for potentially abusive installations. Optional 4110-62G thick hub shoe for blade stop clearance. Optional 4110T-145 flush transom shoe for single rabetted installations. Optional shoes require special templating.

Standard Finishes:

Powder Coat
Plated

Custom finishes available upon request

Cylinder, 4110-3071 Standard, handed cast iron cylinder assembly.

Covers Available:

Plastic
Metal

Cover, 4110T-72 Standard, non-handed plastic cover.

Installation Instructions

Lcn

LCN has been developing door closer solutions for 88 years and they are trusted to work in even the most chaotic of times. LCN's high standards of performance give their customers a much needed peace of mind in knowing that their facilities are protected. With 35 different series of closers and door hardware to choose from with the guarantee of up to 15 to 20 years of product life, LCN has unmatched expertise to meet all security and safety challenges.

LCN has been developing door closer solutions for 88 years and they are trusted to work in even the most chaotic of times. The LCN-4110T Series Door Closer high standards of performance give their customers a much needed peace of mind in knowing that their facilities are protected. With 35 different series of closers and door hardware to choose from with the guarantee of up to 15 to 20 years of product life, LCN has unmatched expertise to meet all security and safety challenges.

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

LCN Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
4111T-BUMP-689-PCRHSRITORX	Aluminum, Plastic cover, Track with Bumper, Size 1 (26" - 34"), Right Handed, Included (Special Rust Inhibitor), Torx Machine Screws
4111T-STDTRK-693-PCLHTBTRX	Flat Black, Plastic cover, Standard Arm, Size 1 (26" - 34"), Left Handed, Not Included, Through Bolt and Torx Machine Screws
4111T-STDTRK-696-PCRHTBTRX	Brass, Plastic cover, Standard Arm, Size 1 (26" - 34"), Right Handed, Not Included, Through Bolt and Torx Machine Screws
4111T-BUMP-696-PCLHHSRT	Brass, Plastic cover, Track with Bumper, Size 1 (26" - 34"), Left Handed, Not Included, Hold Open Self Reaming and Tapping Screws
4111T-BUMP-622-MCLHSRIHSRT	Matte Black, Metal Cover, Track with Bumper, Size 1 (26" - 34"), Left Handed, Included (Special Rust Inhibitor), Hold Open Self Reaming and Tapping Screws
4111T-H-689-MCRHSRITBSRT	Aluminum, Metal Cover, Hold Open Arm, Size 1 (26" - 34"), Right Handed, Included (Special Rust Inhibitor), Through Bolt Self Reaming and Tapping Screws
4111T-H BUM-691-MCRHHTBWMS	Light Bronze, Metal Cover, Hold Open Track with Bumper, Size 1 (26" - 34"), Right Handed, Not Included, Hold Open Through Bolt Wood and Machine Screws
4111T-BUMP-693-MCRHSRIWMS	Flat Black, Metal Cover, Track with Bumper, Size 1 (26" - 34"), Right Handed, Included (Special Rust Inhibitor), Wood and Machine Screws
4111T-STDTRK- US4-MCRHHTBWMS	Satin Brass, Metal Cover, Standard Arm, Size 1 (26" - 34"), Right Handed, Not Included, Hold Open Through Bolt Wood and Machine Screws
4111T-BUMP-US11-MCLHTBSRT	Satin Bronze Blackened, Metal Cover, Track with Bumper, Size 1 (26" - 34"), Left Handed, Not Included, Through Bolt Self Reaming and Tapping Screws
4111T-BUMP- US4-PCRHHTBTX	Satin Brass, Plastic cover, Track with Bumper, Size 1 (26" - 34"), Right Handed, Not Included, Hold Open Through Bolt Torx Screws
4111T-BUMP- US26-PCRHTBTRX	Bright Chrome, Plastic cover, Track with Bumper, Size 1 (26" - 34"), Right Handed, Not Included, Through Bolt and Torx Machine Screws
4111T-H-US15-PCRHHTBWMS	Satin Nickel, Plastic cover, Hold Open Arm, Size 1 (26" - 34"), Right Handed, Not Included, Hold Open Through Bolt Wood and Machine Screws
4113T-H-689-PCLHSRITBSRT	Aluminum, Plastic cover, Hold Open Arm, Size 3 (34" - 38"), Left Handed, Included (Special Rust Inhibitor), Through Bolt Self Reaming and Tapping Screws
4113T-H BUM-689-PCRHSRIWMS	Aluminum, Plastic cover, Hold Open Track with Bumper, Size 3 (34" - 38"), Right Handed, Included (Special Rust Inhibitor), Wood and Machine Screws
