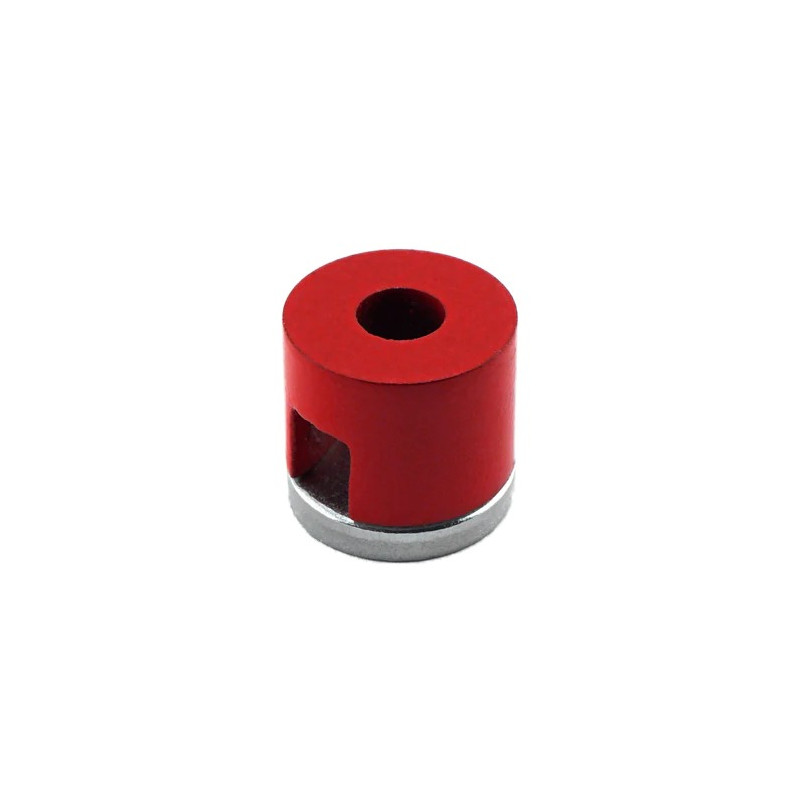

Magnet Source 072 Alnico Button Magnet

Model: 72

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Magnet Source 072 Alnico Button Magnet

These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to retain magnetic strength when not in use.

Use as work holding devices for wood cutting, sign making or other hobby applications

Ideal for school experiments and high heat applications

Permanent magnetism guaranteed

Specifications

Attachment Type: Bolt, Eyebolt, Hook, Nuts
Finish/Plating: Enamel Paint
Grade: 5
Hardware Included: No
Hole Diameter (In.): 0.17
Magnet Material: Alnico
Magnet Shape: Disc
Mounting Style: Center Hole
Multiple Poles: Yes
Number of Holes: 1
Number of Items in Sell Pack: 1
Number of Keepers: 1
Number of Poles: 2
Pole Width: 0.45
Product Color: Red + Silver
Product Diameter (In.): 0.5
Product Height (In.): 0.375
Product Material: Steel
Product Shape: Round
Product Thickness (In.): 0.165
Special Features: Includes keeper, painted red
Weight (lbs): 0.05
