Magnet Source B Series Magnetic Block

B

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$74.07

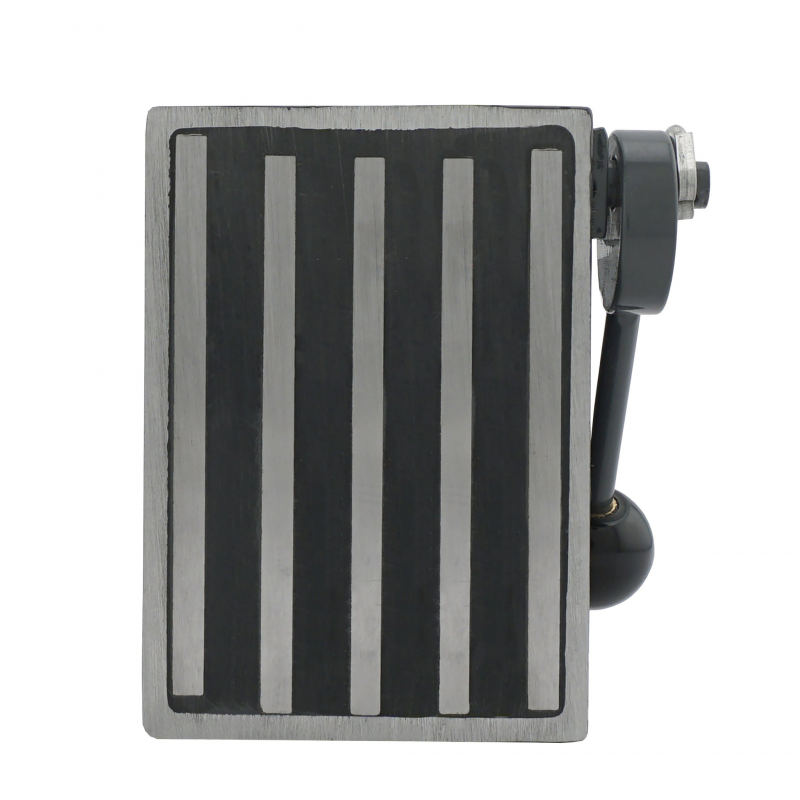

Details: Magnet Source B Series Magnetic Block

Multiple-pole magnetic blocks have mounting holes for attaching to surfaces for work holding. May also be drilled and tapped for fastening to spotlights, shop work lights, spray nozzles, etc. Heat tolerant to 180 degrees F. Model B450 is available with or without a cam release and eyebolt (available on B450 only). Must be specified.

Magnetic Blocks

Part No.Pounds PullLengthWidthHeightDWeight(lbs.)
B75752.4371.3121.172.85
B1251253.3751.51.252.875.8215
B1751753.5622.0621.31231.2
B4504504.252.871.75*2.9
B450W/CAMC4504.252.871.75*3.5
Key:D=Distance between mounting holes. *=Holes may be drilled .625 inch deep on back face.
Dimensions in Inches

Available Model Numbers and Combinations

Model/SKUAttributes
B75 75 lbs. pull
B125 125 lbs. pull
B175 175 lbs. pull
B450 450 lbs. pull
B450W/CAMC 450 lbs. pull, includes cam release and eyebolt
