Magnet Source NMLKIT Neodymium Latch Magnet Kit
Warning: Last items in stock!
Availability date:
Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

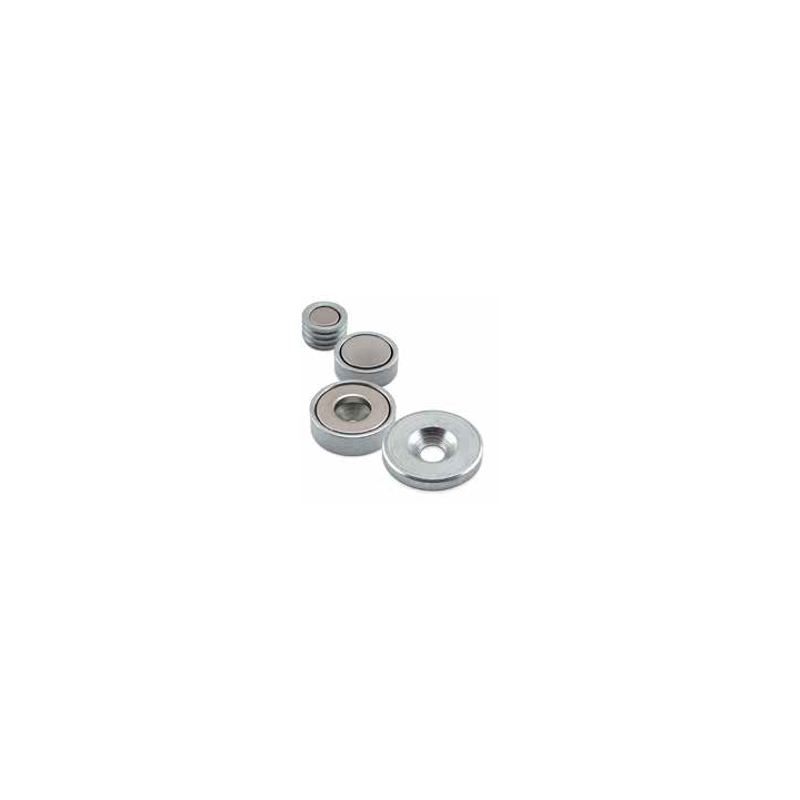

These powerful magnetic assemblies are designed to be used as door latches for cabinets, chests, displays, and more. Simply attach the magnet in a steel cup to one surface and the strike plate to the other to make a secure closure. Counterbore a hole in the wood for flush mounting. Available in eight sizes with magnetic pull strengths ranging from 2 to 39 pounds. Mounting screws also available.
Part No. | Pounds Pull | Item | Out Dia. | Thickness |
---|---|---|---|---|
NMLKIT1 | 2 | - | - | - |
ZZRB11CUPZ | - | Steel Cup (press fit) | .38 | .25 |
ZZFWNM38Z | - | Strike Plate | .375 | .094 |
ND002507N | 2 | Neo Magnet Disc | .25 | .08 |
ZZFWS4X.5 | - | Screw: #4 Phillips (1) | - | .5 |
Part No. | Pounds Pull | Item | Out Dia. | Thickness |
---|---|---|---|---|
NMLKIT2 | 6 | - | - | - |
ZZRB12CUPZ | - | Steel Cup | .5 | .25 |
ZZFWNM50Z | - | Strike Plate | .5 | .094 |
ND003602N | 6 | Neo Magnet Disc | .36 | .075 |
ZZFWS4X.5 | - | Screw: #4 Phillips (2) | - | .5 |
Part No. | Pounds Pull | Item | Out Dia. | Thickness |
---|---|---|---|---|
NMLKIT3 | 16 | - | - | - |
ZZRB13CUPZ | - | Steel Cup | .625 | .25 |
ZZFWNM625Z | - | Strike Plate | .625 | .094 |
ND004903N | 16 | Neo Magnet Disc | .49 | .105 |
ZZFWS4X.5 | - | Screw: #4 Phillips (2) | - | .5 |
Part No. | Pounds Pull | Item | Out Dia. | Thickness |
---|---|---|---|---|
NMLKIT6 | 19 | - | - | - |
N/A | - | Steel Cup | .75 | .25 |
N/A | - | Strike Plate | .75 | .09 |
N/A | 19 | Neo Magnet Disc | .612 | .05 |
ZZFWS8X.75 | - | Screw: #8 Phillips (2) | - | .75 |
Part No. | Pounds Pull | Item | Out Dia. | Inner Dia. | Thickness |
---|---|---|---|---|---|
NMLKIT4 | 23 | - | - | - | - |
ZZRB14CUPZ | - | Steel Cup | .875 | - | .281 |
ZZFWNM875Z | - | Strike Plate | .875 | - | .156 |
NR007403N | 23 | Neo Magnet Disc | .74 | .375 | .105 |
ZZFWS8X.75 | - | Screw: #8 Phillips (2) | - | - | .75 |
Part No. | Pounds Pull | Item | Out Dia. | Thickness |
---|---|---|---|---|
NMLKIT7 | 26 | - | - | - |
N/A | - | Steel Cup | 1 | .27 |
N/A | - | Strike Plate | 1 | .1 |
N/A | 26 | Neo Magnet Disc | .85 | .05 |
ZZFWS8X.75 | - | Screw: #8 Phillips (2) | - | .75 |
Part No. | Pounds Pull | Item | Out Dia. | Inner Dia. | Thickness |
---|---|---|---|---|---|
NMLKIT5 | 30 | - | - | - | - |
ZZRB16CUPZ | - | Steel Cup | 1.13 | - | .27 |
ZZFWNM1.13Z | - | Strike Plate | 1.13 | - | .15 |
NR010007N | 30 | Neo Magnet Disc | 1 | .5 | .11 |
ZZFWS8X.75 | - | Screw: #8 Phillips (2) | - | - | .75 |
Part No. | Pounds Pull | Item | Out Dia. | Inner Dia. | Thickness |
---|---|---|---|---|---|
NMLKIT8 | 39 | - | - | - | - |
N/A | - | Steel Cup | 1.5 | - | .27 |
N/A | - | Strike Plate | 1.5 | - | .155 |
N/A | 39 | Neo Magnet Disc | 1.35 | .48 | .05 |
ZZFWS8X.75 | - | Screw: #8 Phillips (2) | - | - | .75 |
Model/SKU | Attributes |
---|---|
NMLKIT1 | |
NMLKIT2 | |
NMLKIT3 | |
NMLKIT4 | |
NMLKIT5 | |
NMLKIT6 | |
NMLKIT7 | |
NMLKIT8 |
