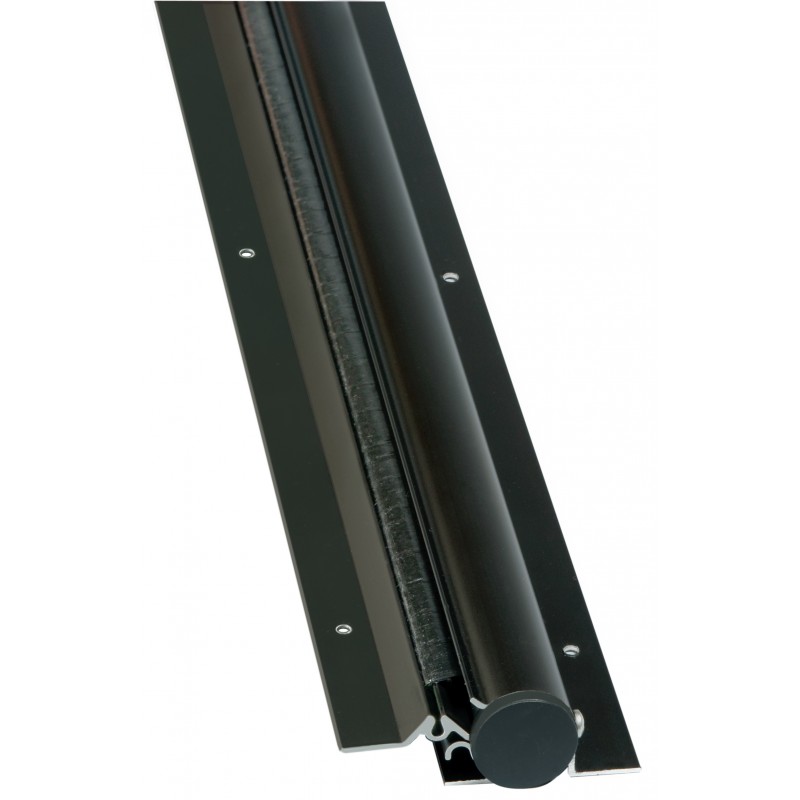

NGP 2248 Finger Guard

Model: 2248

Write a review

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: NGP 2248 Finger Guard

Features

Aluminum alloy 6063, T5 temper
Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
Very good abrasion resistance, tensile strength and memory
Flame resistant
Moisture resistant
Temperature range -20°F to 200°F
Good resistance to ozone, sunlight and aging
BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
The EZ-Touch door bottom requires only 3 to 5 pounds of pressure to activate
Perfect for accessibility applications and still provides an effective seal
Available 23-1/4" net to 48" in length
End caps furnished standard
3/4" max drop
Neoprene is black
Dark bronze finish

Options

Standards

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

National Guard Products Warranty

NGP LEED Recycled Content Percentage Chart

	Post-Consumer Recycled %	Pre-Consumer Recycled %
Aluminum Thresholds, Rain Drip Guards	18%	49%
Architectural Bronze Thresholds, Rain Drip Guards	70%	25%
Stainless Steel Thresholds, Rain Drip Guards	25%	3%
Rubber Ramps	0%	0%
Gasketing with Aluminum Retainers	13%	37%
Gasketing with Bronze Retainers	52%	19%
Gasketing with Stainless Steel Retainers	19%	2%
Self-Adhesive Gasketing	0%	0%
Finger Guard 2248	13%	37%
Finger Guard 2252	0%	0%
Metal Edge/Astragal sets (Steel)	25%	3%
Lite Kits & Louvers (Steel)	15%	5%
Aluminum Lite Kits & Louvers	18%	49%
Stainless Steel Lite Kits	25%	3%
Continuous Geared Aluminum Hinges	18%	49%
Stainless Steel Continuous Hinges	25%	3%

Available Model Numbers and Combinations

Model/SKU	Attributes
2248A-38	Anodized Aluminum, 38"
2248A-76	76", Anodized Aluminum
2248A-82	Anodized Aluminum, 82"
2248A-86	Anodized Aluminum, 86"
2248DKB-38	Dark Bronze, 38"
2248DKB-76	Dark Bronze, 76"
2248DKB-82	Dark Bronze, 82"
2248DKB-86	Dark Bronze, 86"
