Reduced price! 959.gif View larger

National Guard Products

NGP 959 Aluminum Interlocking Ramp Component

959

Item is normally shipped within 2-3 weeks from manufacturer. Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$28.84

20% Off

$36.05

Details: NGP 959 Aluminum Interlocking Ramp Component

Product Features

  • Aluminum alloy 6063, T5 temper

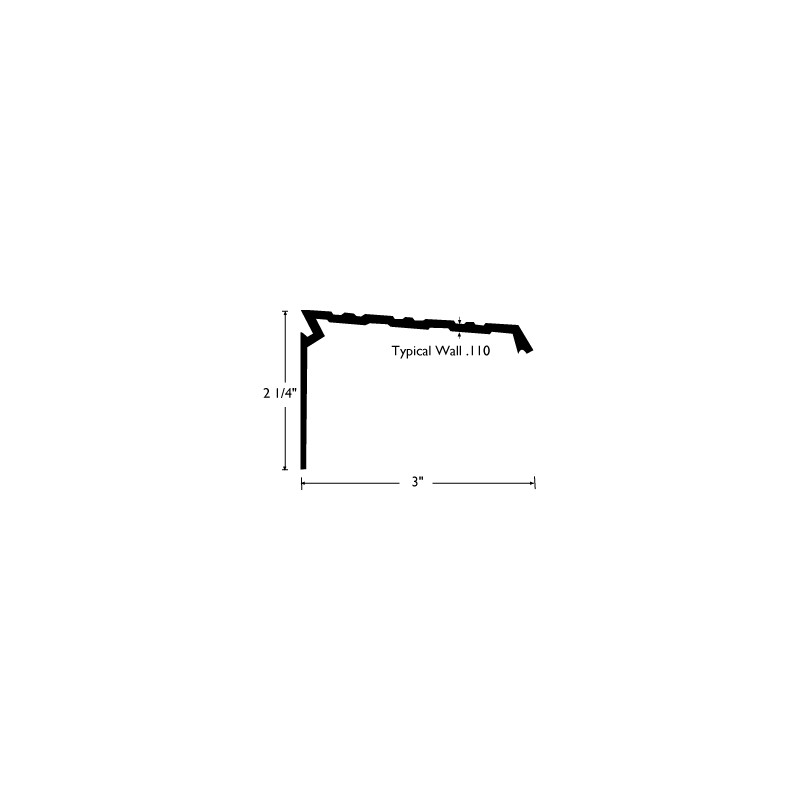

  • 3" wide × 2-1/4" tall
  • ADA compliant when installed as part of interlocking ramp assembly
  • Typical wall thickness: .110"
  • Weight: .79 lbs./ft.
  • #10 FH zinc plated wood screws included
  • Mill finish

Certifications

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

Downloads

Download Resources

Available Model Numbers and Combinations

Model/SKUAttributes
959-1 Mill Aluminum, 1'
959-2 Mill Aluminum, 2'
959-3 3', Mill Aluminum
959-4 Mill Aluminum, 4'
959-5 Mill Aluminum, 5'
959-6 Mill Aluminum, 6'
959-7 Mill Aluminum, 7'
959-8 Mill Aluminum, 8'
959-9 Mill Aluminum, 9'
959DKB-1 Dark Bronze, 1'
959DKB-2 Dark Bronze, 2'
959DKB-3 3', Dark Bronze
959DKB-4 Dark Bronze, 4'
959DKB-5 Dark Bronze, 5'
959DKB-6 Dark Bronze, 6'

View All Model Numbers and Options
