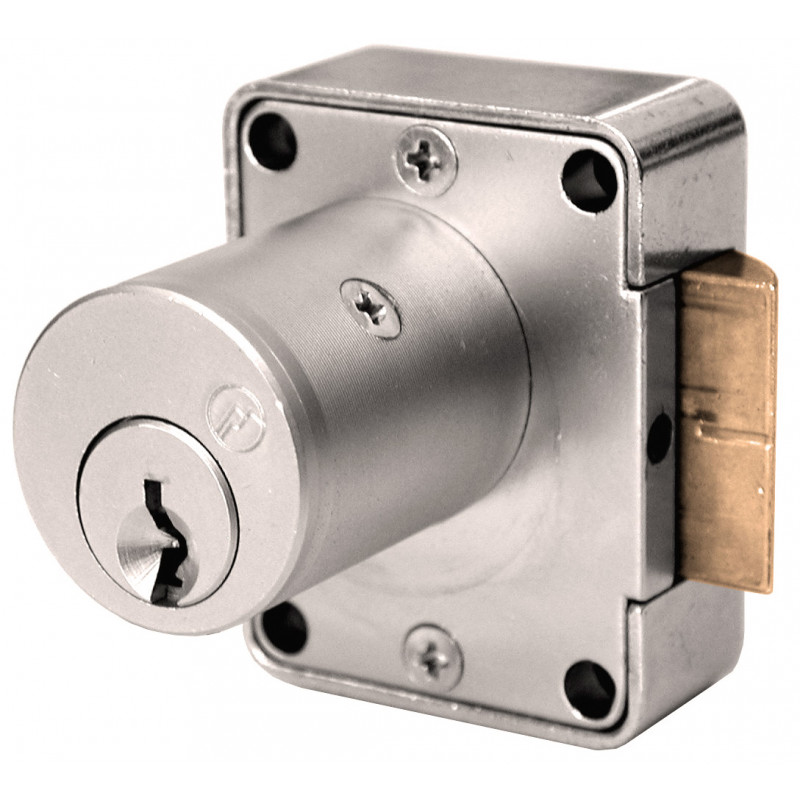

Olympus 997 Door Latch Lock

997

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$36.89

30% Off

$52.70

?

Details: Olympus 997 Door Latch Lock

Features

  • Cabinet lock - door latch lock
  • Field reversible into all 4 handings
  • Easily rekeyable via set screw cylinder release mechanism
  • Pin tumbler cylinder drilled for 5 pins
  • Barrel lengths: 1" or 1-3/8" specify barrel length when ordering
  • Barrel diameter: 7/8"
  • Locks are handed at the factory, specify right-hand or left-hand when ordering
  • 26D or US4 finish
  • Includes 999-STRIKE matching strike (stamped brass) with alignment mark for easy installation
  • Packed 10 per box
  • US Patent: 4,899,563; 7,874,189 B2

Keying

  • CCL R1 keyway
  • KD/KA/MK - 5 pin standard
  • KA# 4T21579, 4T37526
  • Master keyed - 5 pin standard, 6 pin available
  • Use R1 Pin Kit for rekeying
  • 5-pin keyblank = KBR-5-NP(equivalent to CO106,1003A)
  • 6-pin keyblank = KBR-6-NP(equivalent to L1003A)

Downloads

Olympus Handing

Handed locks must be ordered either LH, RH, VH or IH (see figure at left).

Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.

Cabinet Doors

Left-hand (LH)
Hinged on left

Right-hand (LH)
Hinged on right

Drawers

Vertical-hand (VH)
Bolt locks up

Inverted-hand (IH)
Bolt locks down

Available Model Numbers and Combinations

Model/SKUAttributes
997L26D-KD78 Keyed Different, Left Hand, 7/8", Not Included
997L26D-KD138 Keyed Different, Left Hand, 1-3/8", Not Included
997L26D-MK78 Master Keyed, Left Hand, 7/8", Not Included
997L26D-MK138 Master Keyed, Left Hand, 1-3/8", Not Included
997LUS4-KA78 Satin Brass, Keyed Alike, Left Hand, 7/8", Not Included
997LUS4-KA138 Satin Brass, Keyed Alike, Left Hand, 1-3/8", Not Included
997LUS4-KD78 Satin Brass, Keyed Different, Left Hand, 7/8", Not Included
997LUS4-KD138 Satin Brass, Keyed Different, Left Hand, 1-3/8", Not Included
997LUS4-MK78 Satin Brass, Master Keyed, Left Hand, 7/8", Not Included
997LUS4-MK138 Satin Brass, Master Keyed, Left Hand, 1-3/8", Not Included
997R26D-KA78 Keyed Alike, Right Hand, 7/8", Not Included
997R26D-KA138 Keyed Alike, Right Hand, 1-3/8", Not Included
997R26D-KD78 Keyed Different, Right Hand, 7/8", Not Included
997R26D-KD138 Keyed Different, Right Hand, 1-3/8", Not Included
997R26D-MK78 Master Keyed, Right Hand, 7/8", Not Included

View All Model Numbers and Options
