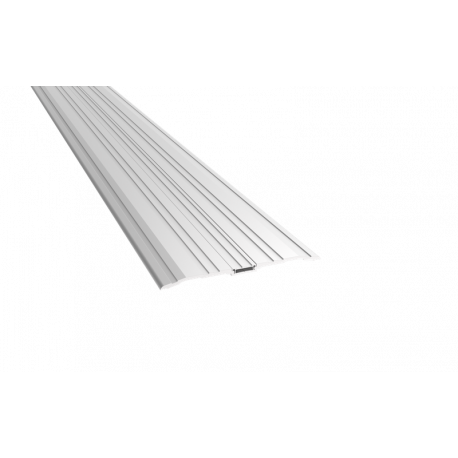

Pemko 671 Concealed Fastener Flat Saddle Threshold, 5" W x 1/4" H

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$38.73

Details: Pemko 671 Concealed Fastener Flat Saddle Threshold, 5" W x 1/4" H

The 1/4" high × 5" wide innovative 651 Series Concealed Fastener Flat Saddle Threshold features a snap-on cover that conceals all fasteners in the opening, allowing for a smoother, more consistent threshold surface. These ADA compliant, retrofittable models provide a flat area for a door bottom sweep or shoe to seal against.

Features

  • Snap cover conceals fasteners in the opening
  • Suitable for retrofit applications
  • Provides a flat surface for door bottom sweep or shoe to seal against
  • Standard No.10 zinc-plated steel fasteners; optional threshold fastener types available
  • Provided with standard hole pattern in the recessed channel
  • Aesthetically pleasing. Threshold surface is smooth and consistent
  • Discourages tampering
  • Acts as a non-combustible sill in the opening
  • All models can be L- or U-notched to fit around the frame
  • Certifications:- UL 10C positive pressure, Americans with Disabilities Act (ADA) Compliant, UL 10B Listed, ANSI/BHMA A156.21 Thresholds

Specifications

Base Material
Aluminum
Fasteners
SMS No.10 X 1"
Overall Height
1/4"
Width
5"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
