Details: Precision 2100 Series RIM Exit Device, Reversible, Wide Stile

Features

Doors

For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1¾" to 2¼" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1¾" thick, 3'-0" wide opening

Device

Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation

Functions

Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the "03" function is furnished standard

Double cylinder

Handed, "10" Function available. Requires two rim type cylinders, not furnished standard

Base Material

The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components

Chassis

Investment Cast Steel, Zinc Dichromated

Latch Bolt

Stainless Steel, Deadlocking, ¾" throw

Strikes

No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering

Dogging

1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware

Touch Bar Height

39-15⁄16" from floor standard. May be varied as situation dictates

Reversible

Reversible for all functions and Trims. Standard packaging RHRB

UL Listed

Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2

ANSI/BHMA

Devices are BHMA certified for ANSI 156.3, Grade 1

Cylinder

Rim Type, not furnished standard. Specify when required

Retrofit Applications

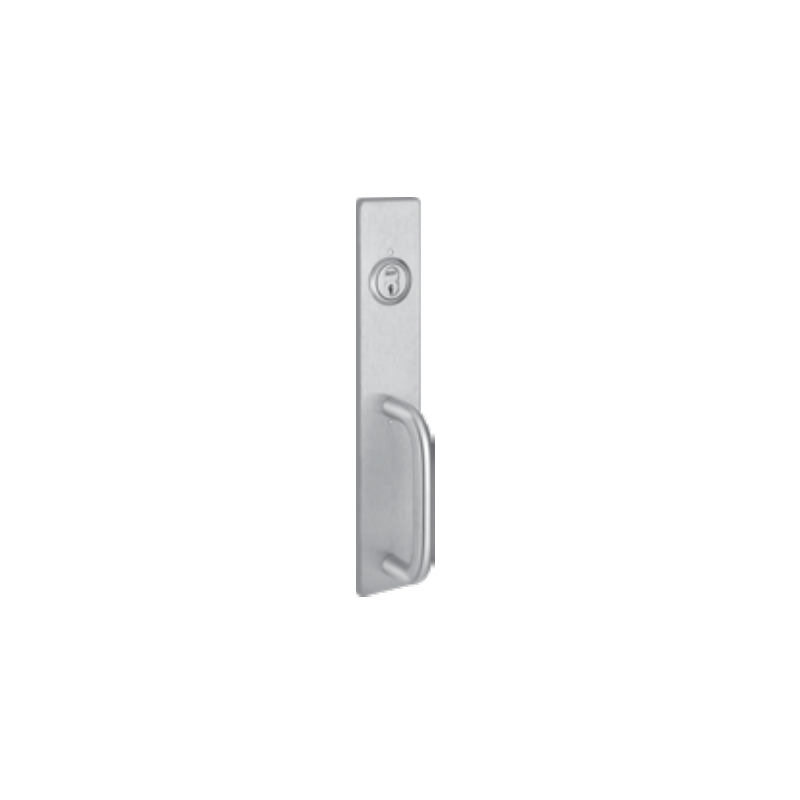

The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers' mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"
