  6. Prime Line D 1511 Nylon Ball Bearing Roller, F-Tab Style, Adjustable, Single 1-1/2 In.
Prime Line D 1511 Nylon Ball Bearing Roller, F-Tab Style, Adjustable, Single 1-1/2 In. View larger

Prime Line

Prime Line D 1511 Nylon Ball Bearing Roller, F-Tab Style, Adjustable, Single 1-1/2 In.

D 1511

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$9.75

Details: Prime Line D 1511 Nylon Ball Bearing Roller, F-Tab Style, Adjustable, Single 1-1/2 In.

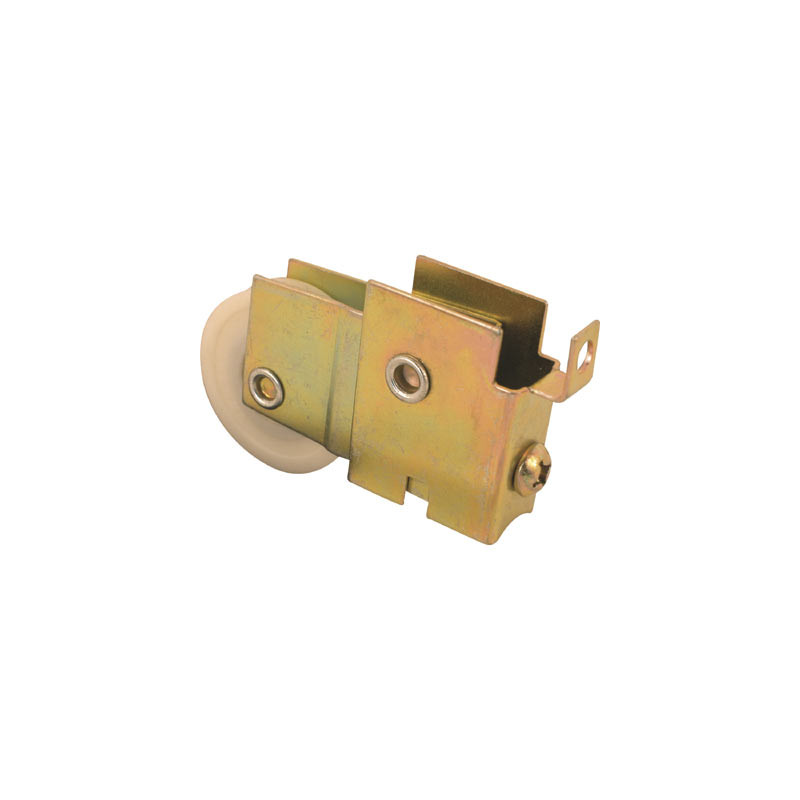

This is a F-tab patio door roller assembly with a 1-1/2 in. concave or grooved nylon ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 in. wide and 1-5/8 in. tall with a rear adjusting screw. Used by Doormaster, Starlite and a variety of other patio door manufacturers.

Features

  • 1-1/2 in. Concave (grooved) Nylon Roller
  • Ball Bearing
  • F-Tab Housing with Rear Adjust
  • When the corner screw passes through the F tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
  • Housing is 11/16 in. wide, 1-5/8 in. tall and 1-1/4 in. long (not including the inner roller housing)
  • Rear adjustment screw
  • Used on metal framed patio doors
  • For further dimensional information, please see the line drawing

Specifications

Roller Material
Plastic Ball Bearing
Housing Width
11/16"
Roller Width
5/16"
Roller Edge Type
Concave
Availability
N/A
Housing Length
1-1/4"
Housing Height
1-5/8"
Overall Housing Width
23/32" at Axle
No of Wheels in Roller Assembly
1 Wheel
Mounting Tab Type
F-Tab

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

D 1511-INS.PDF
