Prime Line PL 1597 Extruded Screen Frame, 7/8 x 5/16 x 96-In.

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

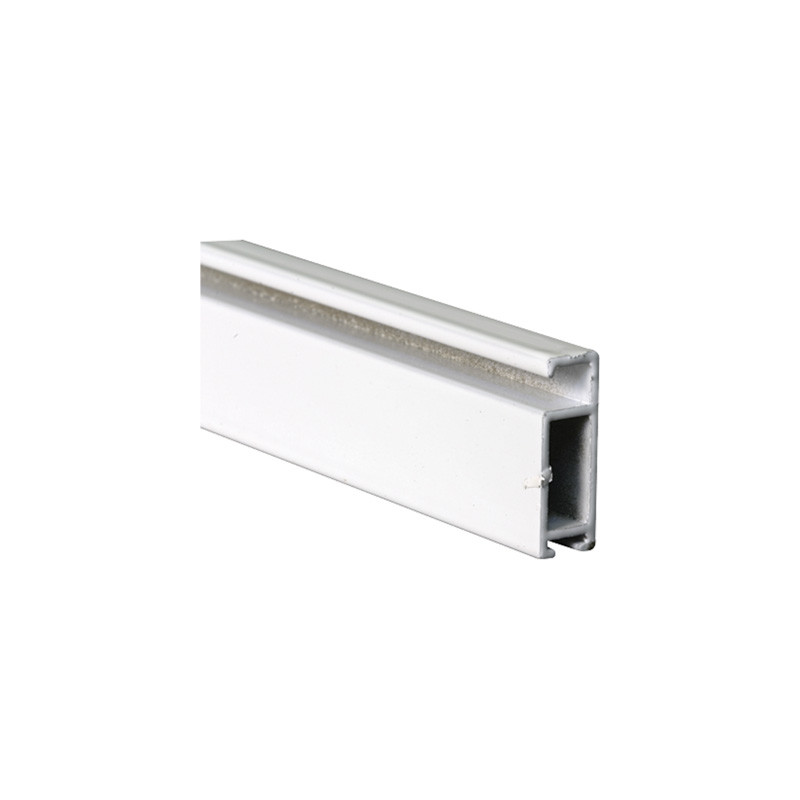

Details: Prime Line PL 1597 Extruded Screen Frame, 7/8 x 5/16 x 96-In.

Prime-Line 5/16 inch × 7/8 inch Extruded Aluminum Screen Frame is designed to be used for making heavy duty screen frames for commercial and residential applications. This is a great frame for making screen panels for screen rooms, 96 inches long

Features

5/16 inch × 7/8 inch .038 Extruded Aluminum screen frame
Bronze/White Paint, 94 inches long
Additional colors and lengths are available
Spline channel measures .175 inches wide
Use .190 foam vinyl spline with Fiberglass screen mesh
Use .165 serrated vinyl spline with aluminum screen mesh
Use 5/16 stamped aluminum miter cut lip corners PL 15977
Best screen frame for making screens for patio enclosures
For best results use 20 × 20 mesh fiberglass screen mesh
Frame is typically mounted using twist clips to secure the frames
Easy to cut with a hacksaw
Always wear safety glasses when cutting metal material

Specifications

Length: 96'
Material: Extruded Aluminum
Color: Bronze, White
Width: 5/16"
Reach: 7/8"
Gauge: 0.038

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Prime Line Warranty
