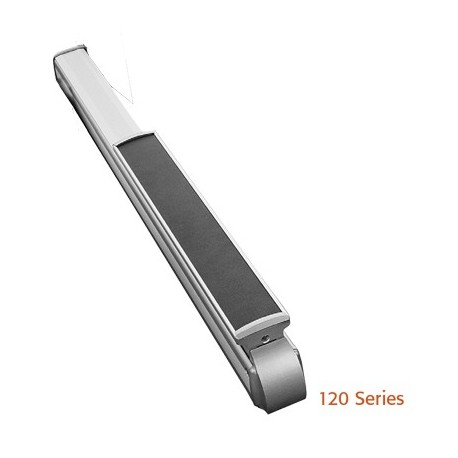

Reduced price! RCI 120 Series Non-Latching Exit Bar View larger

RCI

RCI 120 Series Non-Latching Exit Bar

120

This product is no longer in stock

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

This item has been discontinued

Details: RCI 120 Series Non-Latching Exit Bar

STANDARD FEATURES

  • Pushbar, no latch or strike
  • Ideal for easy egress to release electromagnetic lock
  • Specify SS1 (SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
  • Specify SS2 (Two SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
  • Standard lengths for 36" (3 feet) and 48" (4 feet) doors
  • Can be field cut for undersized doors

Specifications

Signal Switches*
Activated by depressing push bar. Switches can be specified for all types of access controls. SS1 - SPDT rated 3A@30VDC (Inductive), 4A @ 30VDC (Resistive) SS2 - 2SPDT rated 3A @ 30VDC (Inductive), 4A @ 30VDC (Resistive)
Lock Monitor Switch
For remote alarm monitoring of latch position. Normally opened, normally closed contacts.
Push Bar Inserts
Black vinyl insert supplied. Allows inserts to be added by removing push bar end cap and sliding insert into the
groove of the push bar.
Alarm Module
10 - Operated by a 9V alkaline battery (supplied)
  • 20 - Remotely powered field-selectable 10 to 26VDC power with a 9V battery backup (supplied)
  • 30 - Remotely powered field-selectable 10 to 26VDC power.
  • Low Battery AlertAudible chirp indicates low battery (1 chirp/minute). Activated by 7.6 voltsCurrent DrawElectrified Trim 155mA@24VDC Alarm Module 20 - 0.5 microA in Standby position; 16mA when soundingAlarm Module 30 - 0.5 microA in Standby position; 16mA when sounding
    Alarm Module Current DrawAlarm Module 10 - 0.5 microA in Standby position; 16mA when sounding
    Alarm Horn Power110db piezo horn; field-selectable continuous horn or 3 to 5-minute sound and reset; field-selectable intermittent
    beep or steady horn. Activated by depressing push bar when in the "Alarm On" position.
