Reduced price! Sargent 590 Series Heavy Duty Overhead Surface Mount Door Holder

View larger

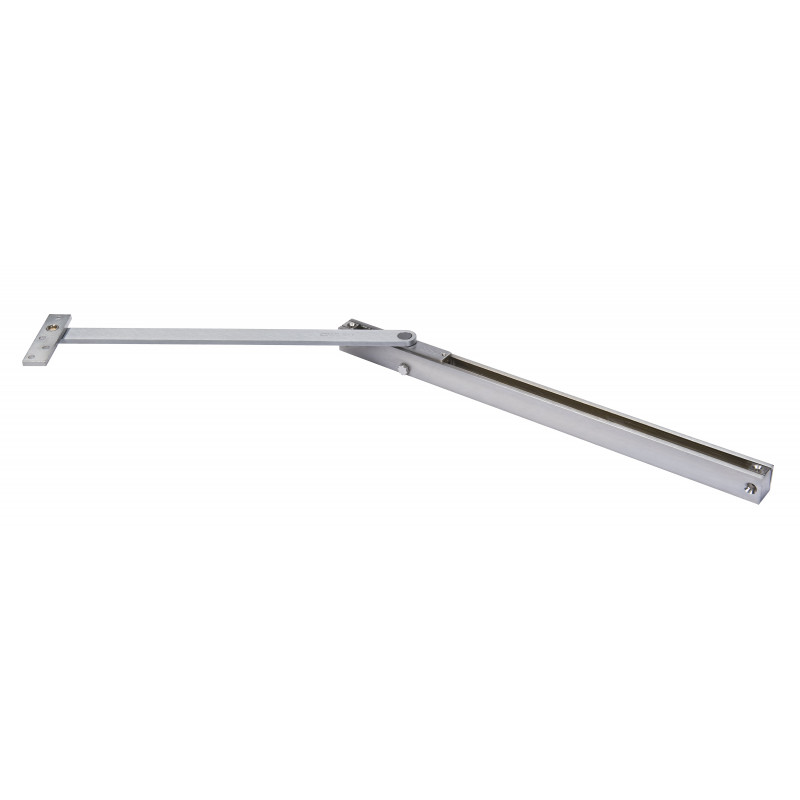

Sargent 590 Series Heavy Duty Overhead Surface Mount Holder And Stop

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sargent 590 Series Heavy Duty Overhead Surface Mount Holder And Stop

The 590 Series Heavy-Duty Overhead Surface Mount, made from rugged, extruded bronze, is designed to protect door and hardware from daily abuse found in commercial and institutional applications. With two types to choose from - "H" for holder, "S" for stop - this mount is installed for a particular degree of hold-open or stop, ranging from 85 degrees to 110 degrees.

Features

High traffic, high abuse applications
Holder or stop available
All holder/stops are installed for particular degree of hold open or stop ranging from 85 degree to 110 degree
Non-handed
ANSI/BHMA A156.8, Grade 1
UL-cUL Fire-Rated Up to 3 Hours

Specifications

Body Material: Bronze
Holder/Stop Type: Overhead Concealed
Minimum Hold Open Degree: 85 degree
Maximum Hold Open Degree: 110 degree

Applications

Office Buildings
Assisted Living Facilities
Hotel Guest Rooms
Public Housing
Retail Establishments

Downloads

Available Model Numbers and Combinations

Model/SKU	Attributes
59036-597Sx 15	Included, Stop Only,
59036-597Sx 20D	Included, Stop Only,
59036-597Sx 26	Included, Stop Only,
59036-597Sx 26D	Included, Stop Only, Satin Chrome
59036-597Sx BSP	Included, Stop Only, Black Suede Powder Coat
59036-598Hx 10BE	Included, Stop w/ Hold Open,
59036-597Sx WSP	Included, Stop Only, White Suede Powder Coat
59036-598Hx EB	Included, Stop w/ Hold Open,
59036-598Hx EN	Included, Stop w/ Hold Open,
59036-598Hx ED	Included, Stop w/ Hold Open,
590599Sx 10BL	Not Included, 39-1/4" and over, Stop Only,
59036-598Hx EAB	Included, Stop w/ Hold Open,
59036-598Hx EP	Included, Stop w/ Hold Open, Satin Bronze, clear coated
59036-598Hx 03	Included, Stop w/ Hold Open,
59036-598Hx 04	Included, Stop w/ Hold Open,
